Shenzhen Superda Machine Co
China Manufacturer with main products: Rack Roll Forming Machine, Superdamc.Com, Floor Deck Roll Forming Machine, Cable Tray Roll Forming Machine, Electronic Cabinet Frame Machine,... |
Switch Mounting Rail Roll Forming Machine
| FOB Price: | 60000.00 - 70000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Year |
| Shipping: | by sea |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Container |
Quick Details
- Type: Steel Frame & Purlin Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Brand Name: Superda
- Condition: New
- Type: Chain driving
- Warranty: 1 year
- Weight: 3500kgs
- Dimension(L*W*H): 12000*1600*1600mm
- Power(W): 5.5kw
- Voltage: 380v or customized
- Model Number: YX8
- Production Capacity: Shenzhen
- Work Pressure: 16
- Warranty: 1 year
- Lifespan: 20 years
Specifications

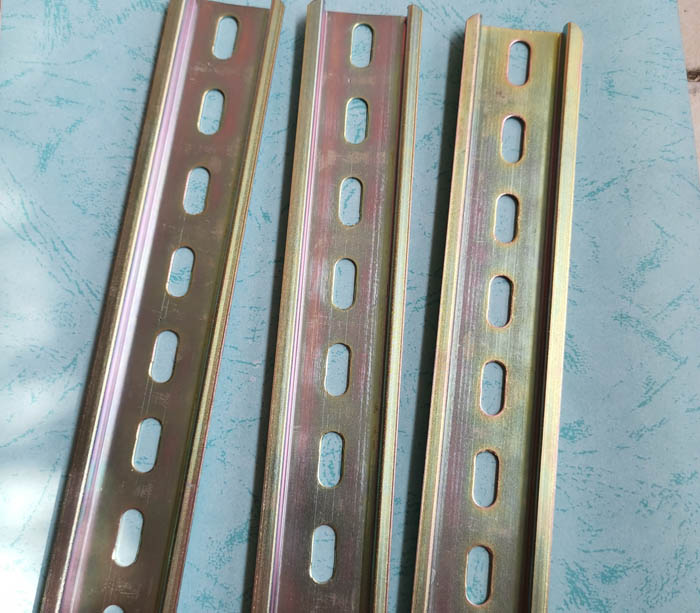

DIN rail for mounting switch rack, it is steel material and standard size.
Shenzhen Superda Machine Co., Ltd () Roll forming machine to making swith rack mounting rail is eash operation and high efficiency.
Guarantee of Quality
Superda guarantee Channel roll former line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth. Formed DIN rail can be fix well with switch.
Channel DIN rail produciton equipment advantage
1, Roll former production line for producing steel switch rail.
2, PLC control system, automatically and easy handle.
3, Good quality roller with quench process, hardness reach HRC60-65 ℃.
4,Tracking cutting system with Cr12 Cutting blade.
2.Techincal parameters ()
DIN Rail Roll former with hole
Technical parameters
No. |
ITEM |
PARAMETER |
REMARK | |
1 |
MATERIAL |
Type |
Cold-rolled strip steel, galvanized sheet |
|
T.(mm) |
0.8-1.2mm |
|||
Material strength |
G300 MPA |
|||
2 |
Forming speed (m/min) |
3-8m |
Including hole | |
3 |
Forming main power (KW) |
3KW |
FYR | |
4 |
Hydraulic power (KW) |
5.5KW |
FYR | |
5 |
Total Power |
8.5KW |
FYR | |
6 |
Voltage |
AC380V, 50Hz, 3Phase |
Customized | |
3.Performance features:
Switch mounting rail roll forming machine electrical control system
the entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. with manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
