Home >Products Catalog > Turbine flow meter > 4-20mA Digital Liquid Turbine Fuel Diesel Oil Flow Meter

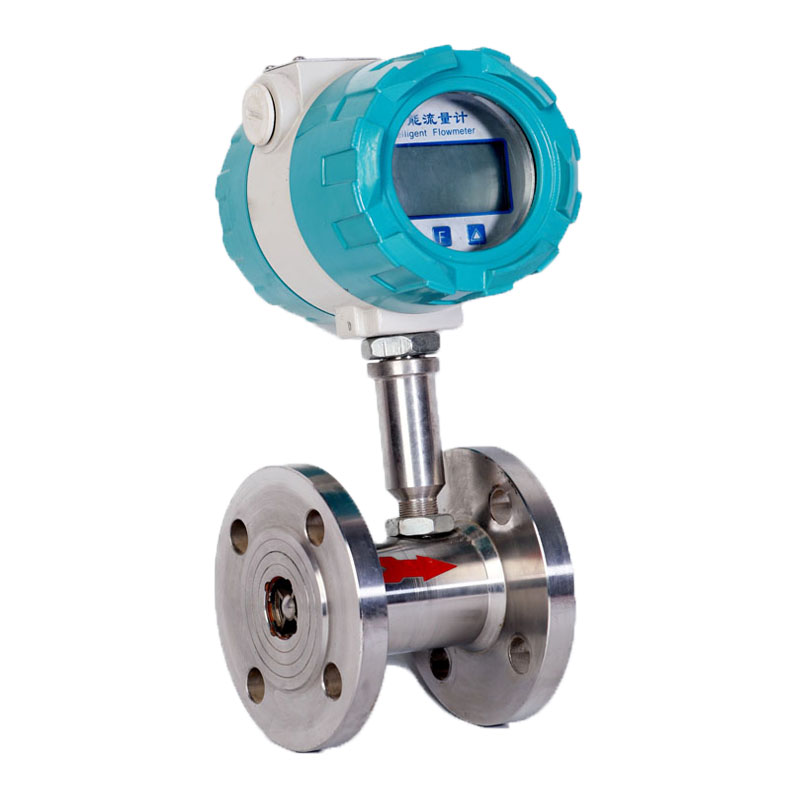

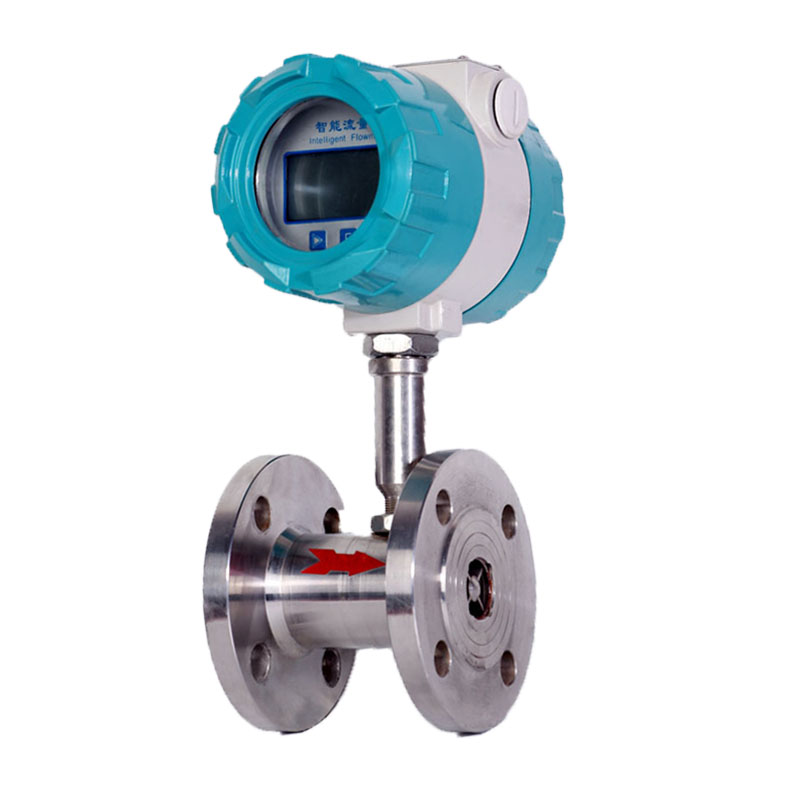

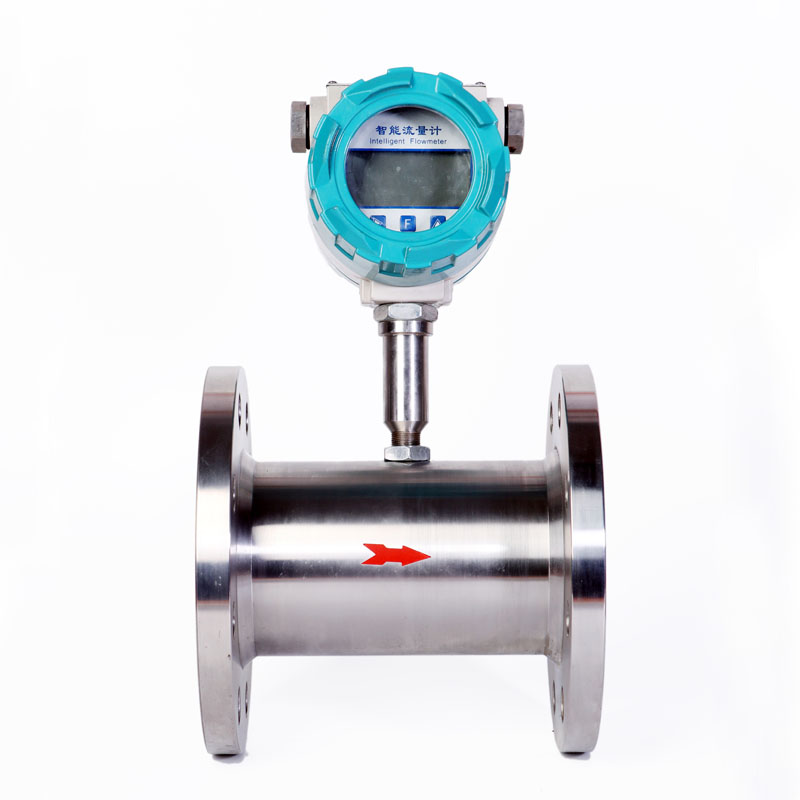

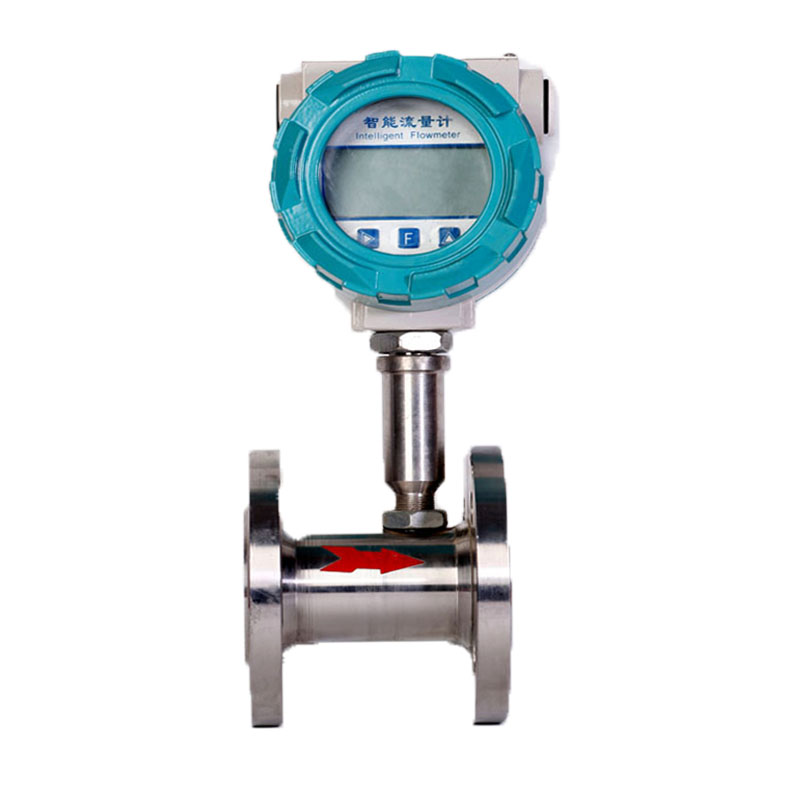

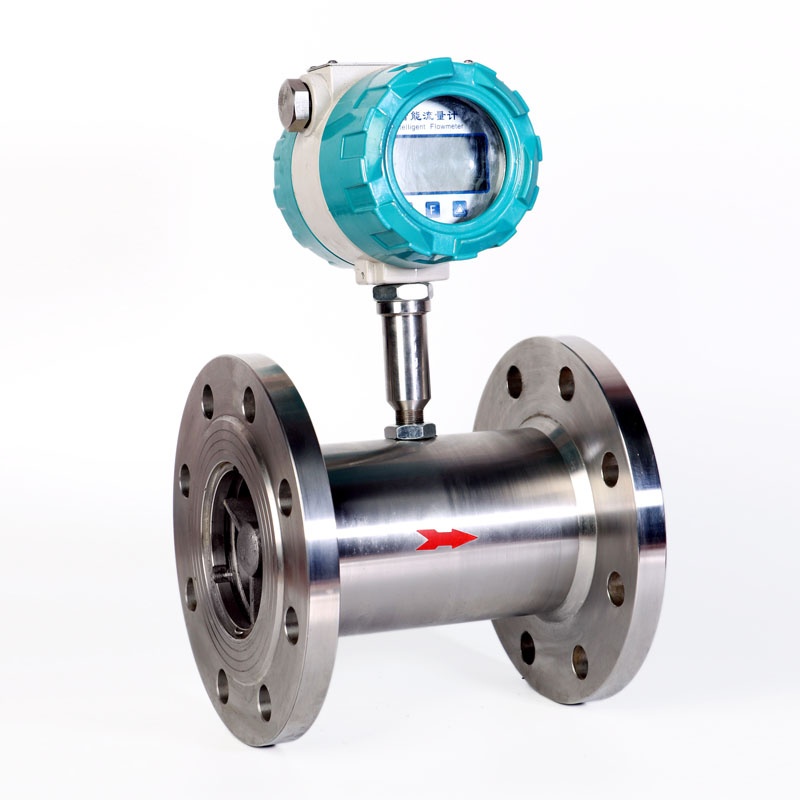

4-20mA Digital Liquid Turbine Fuel Diesel Oil Flow Meter

FOB Price:	200.00 - 500.00 USD/Set
Supply Ability:	1,000 Set(s) per Month
Shipping:	express
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Southeast Asia, Africa, Eastern Asia
Place of Origin:	Shandong in China
Packaging Details:	carton packing or wooden case

Quick Details

Brand Name: KLO
Accuracy: 1%
Power Supply: 24VDC
output: 4-20mA/Pulse
Medium: liquid
Model Number: LWGY
Item: Liquid turbine flow meter
Materail: Stainless steel
Connect: flange
Display: LCD
Delivery: Timely

Specifications

4-20mA digital turbine fuel diesel flow meter

Product Description

Liquid Turbine Flow Meter Description

LWGY series turbine flowmeter is a kind of speed flowmeter. the sensor of turbine flow meter Has the advantages of simple structure, lightweight, high precision, good reproducibility and quick response. It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries. It is the best choice for Flow measurement and energy saving

Liquid Turbine Flow Meter Parameter

Medium	Non Corrosive Liquid( Water,Ethanol,Diesel etc)
Nominal Diameter	DN4-DN200
Span	0.04~800m3/h
Rated Pressure	1.6MPa~6.3MPa Max Customize to 42MPa
Accuracy Level	±1.0%R 0.5% Selectable
Repeatablility	±0.1%
Range Ration	1:10,1:15,1:20
Material	Body/Rotor Support:SS304(SS316L optional)
	Impeller:Double Phase Steel
	Shaft:Stainless Steel
	Bearing:Stainless Steel Ball Bearing
Process Connection	Flange/Thread
Working Condition	Medium Temperature:-20℃~+120℃ (Max Customize to150℃)
	Ambient Temperature:-20℃~+55℃
	Rated Humidity:5%~90%
	Ambient Pressure:86KPa~106KPa
Power	24VDC
Power	3V 10AH lithium battery.
Consumption	24VDC power:<1W
Consumption	Battery:≤1W,lifetime>3yrs
Signal Output	Pulse,4-20mA,Switch Signal.
DIgital Communication	RS485,MODBUS,HART,PROFIBUS-DP
Signal wire joint	Hausman joint/Inner screw M20*1.5 or customized
Explosion Proof Grade	ExdIIBT6/ExiaIICT4
Degree of Protection	IP65 or Higher

Product Uses

Liquid Turbine Flow Meter Application

Turbine flow meter is suitable for liquid flow measurement. It is widely used in petroleum, chemical industry, metallurgy, water supply, papermaking and other industries. It is an ideal meter for flow measurement and energy saving.

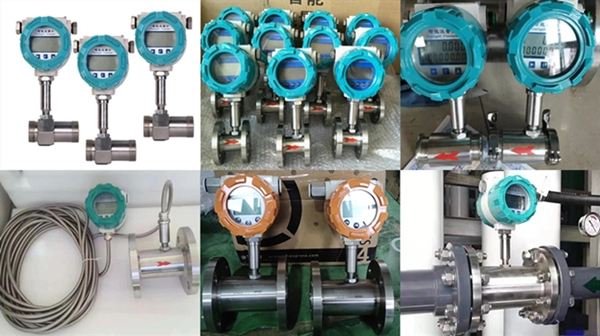

420mA digital liquid turbine fuel diesel oil flow meter
