Silicone Rubber Cold Shrink Tube with Mastic for 7/16 DIN, N, 4.3-10 Connector
| FOB Price: | 1.00 - 1.20 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece(s) per Week |
| Shipping: | by air/sea |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | carton |
Quick Details
- Brand Name: HarshMet
- Material: Silicone Rubber
- Sealing Class: IP68
- Color: Black
- Application: RF Connector
- Model Number: CST Series
Specifications

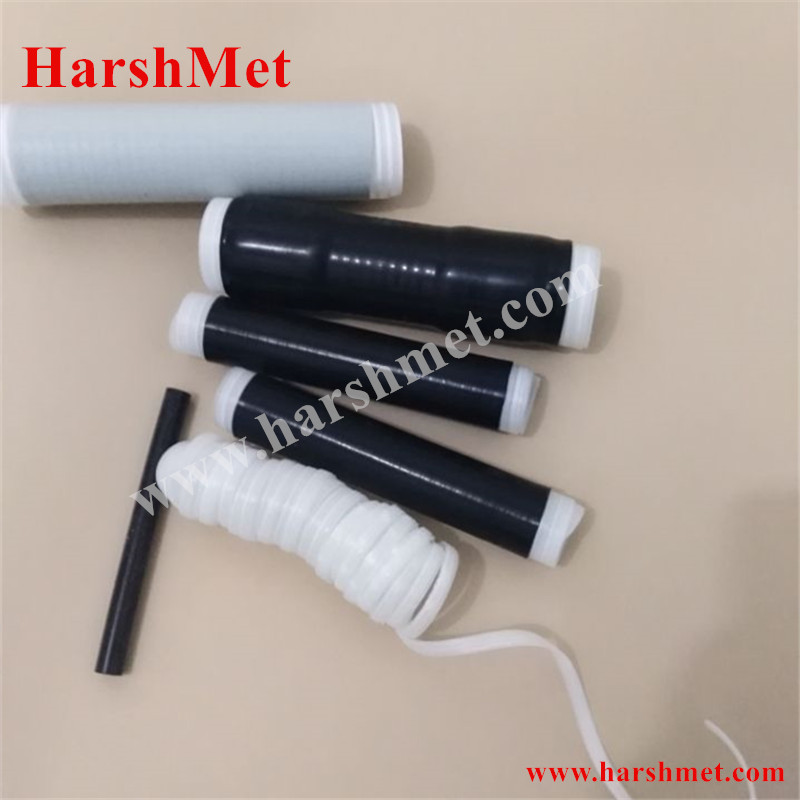

CST-M series weatherproofing solution is a cold shrink tube with built-in mastic. It is a one-step, time-saving and reliable weatherproofing design. The innovatively unique design economically protects RF coax connections at wireless cell sites and CCTV networks against water, dust, and other environment corrosion in a quick, reliable and safe way.
Application

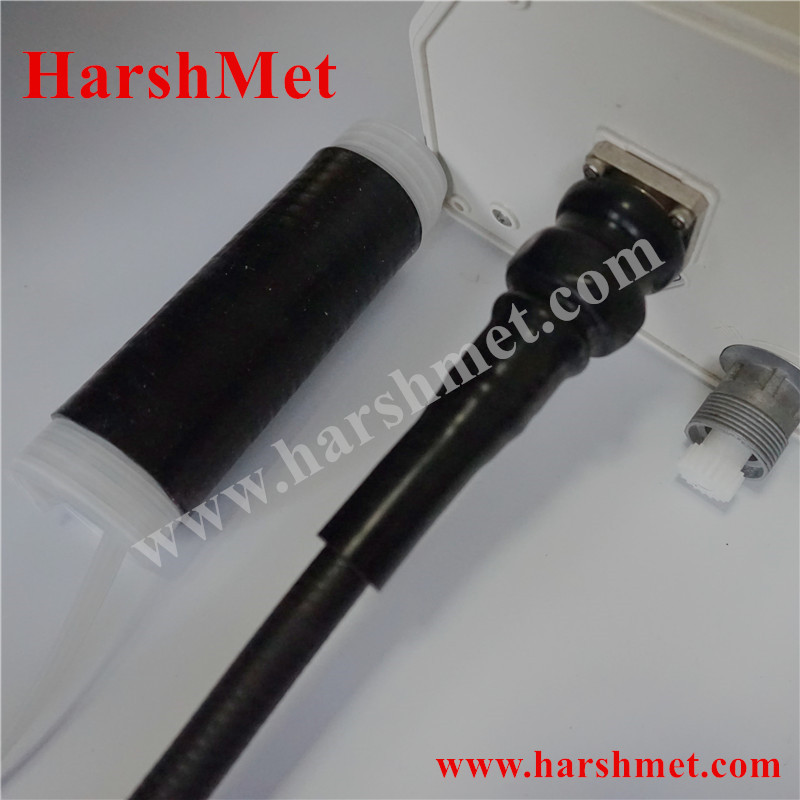

the main application is the sealing of coax connectors used in the wireless communication antenna market. these mainly outside installed connectors require an extra sealing.
Features
- Sealing Class: IP68
- Operating Temperature :-60 C~+200 C
- Shrink ratio: 2.5:1 ~ 4:1
- Colors:Black or Grey
- UV and Ozone resistant
- Superior tear resistant
- Acid and alkalis resistant
Selection Chart
| P/N | CST-M12ARD | CST-M1278S (Short Version) |
CST-M-1278 | CST-M12ARN |
| Connector Type | 7/16 DIN, N Type and Min DIN Type | 7/16 DIN, N Type and Min DIN Type | 7/16 DIN, N Type and Min DIN Type | N Type and Mini DIN Type |
| RF Connections | 1/2" & 1/2" Superflex Jumper to Antenna, RRU, TMA Devices etc | 1/2" & 1/2" Jumper to 7/8" & 7/8" Superflex Feeder Connections, 1/2" to 1/2" Splice, 1/2" to 5/8" Splice, 5/8" to 5/8" Splice | 1/2" & 1/2" Jumper to 7/8" & 7/8" Superflex Feeder Connections, 1/2" to 1/2" Splice, 1/2" to 5/8" Splice, 5/8" to 5/8" Splice | 1/2" & 1/2" Superflex Jumper to Antenna, RRU, TMA Devices etc |
| Diameter Range | 13-40mm | 13-40mm | 13-40mm | 9-24mm |
| Length | 140mm | 200mm | 280mm | 110mm |
Other specification and applications are available on your specific request, please contact us.
