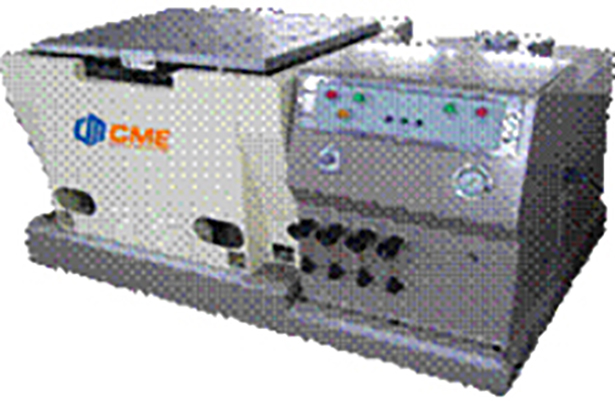

KRD80 Series of Mechanical Vibration Test System

FOB Price:	25.00 - 60.00 USD/Piece

In Stock

Inquiry Now

Quick Details

Functions and features:

L the Amplitude is steplessly adjusted.

L It Is not forced to guide and needs no special foundation.

L the Vibration frequency is steplessly adjusted and can be fixed and be scanned Automatically.

L the Variant frequency controls speed, and the control and measurement by computer Is interactive and well functional.

Main technical indexes

model Parameters		KRD8015	KRD8050	KRD80100	KRD80250	KRD80500	KRD801000
Max. Load (kg)		15	50	100	250	500	1000
Frequency range (Hz)		10100	580				560
Sweep frequency range (Hz)			580				560
Sweep frequency mehod		Manual	Constant displacement Index/linear sweep frequency
Set time range (min)		0.11440
Max. Acceleration under full load (M/s²)		150	200	100	50	30	30
Moving parts weight (kg)		30	133	133	255	255	500
Max. Displacement (peak-to-peak under zero load)(mm)		10	10	10	10	10	8
Vibration direction		Vertical	Vertical / horizontal
Vibration waveform		Half-sine wave
Power supply and consumption power		AC 380V 2kVA	AC 380V 4.5kVA	AC 380V 4.5kVA	AC 380V 9kVA	AC 380V 9kVA	AC 380V 18kVA
Control mode		AC speed control	Variant frequency control by Microcontroller/PC
Table size (mm)		400400	809650	809650	12001000 (14001200)	12001000 (14001200)	18001500
Overall dimension	Table (mm)	1010777762	16001100790	17401160796	14502200900	14502200900	45828971250
	Control cabinet (mm)	6005001500
Weight	Table (kg)	500	1800	2500	3000	3000	6000
	Control cabinet (kg)	30	150		200		240
Standards		GB2423 GJB150A GJB360
Working environment		Temperature040℃, humidity≤80% (no condense)
