Qingdao Leader Machinery Co., Ltd.
China Manufacturer with main products: Rigid /Soft PVC Sheets Extrusion Line, PP/PC Multiwall Hollow Sheet Extrusion Line, PE/PPR/PVC Pipe Extrusion Machine, PVC/PP/PE Foam Board... |

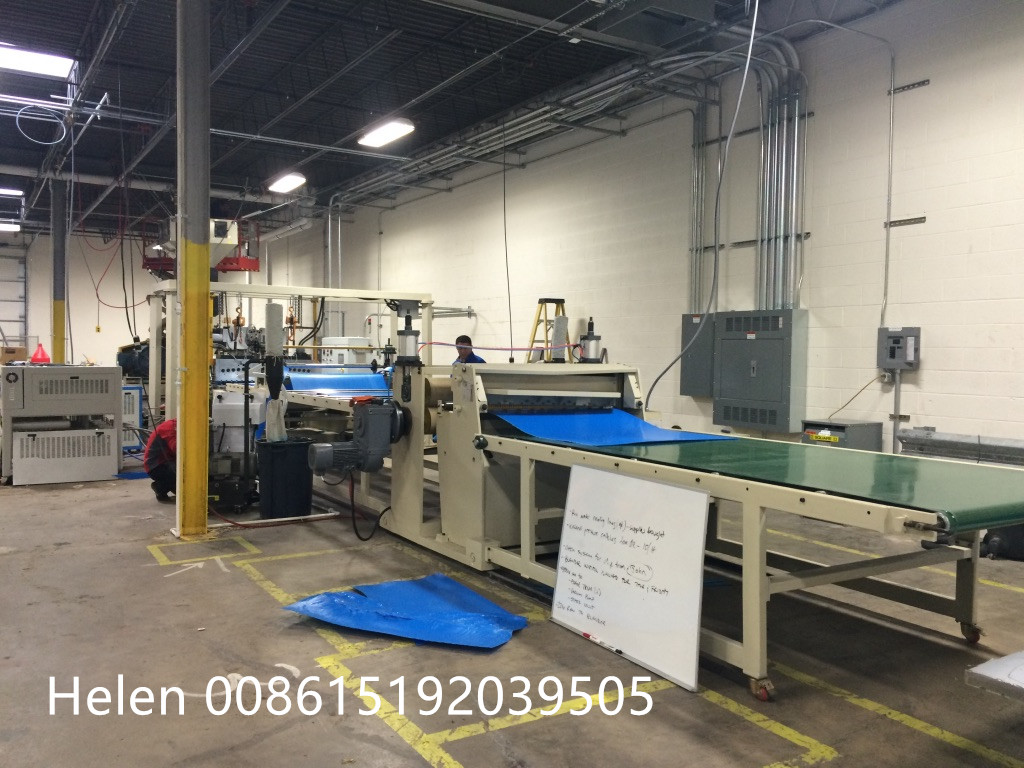

PP Foam Stationary Sheet Making Machine
| FOB Price: | 60,000.00 - 70,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Year |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Power(W): 220W
- Brand Name: Qingdao Leader Machinery co.,ltd.
- Application: Sheet
- Condition: New
- Certification: ISO CE ISO 9001-2008
- Automatic Grade: Automatic
- Screw Design: Single-screw
- Sheet Width: 700-2200mm
- Sheet Thickness: 0.5-30mm
- Capacity: 350kg/H
- Contactor: Schneider
- Dimension(L*W*H): 20*2.5*2m
- Guarantee Time: 1 Year
Specifications
Description:
PP micro foam board extrusion machine adopts T-type die head and three roller calendars technology to produce high smoothly and highly flat micro foam sheets. It is foamed by add some foaming additives, also called chemical foamed.this kind of foam board can be
Single layer extrusion, and also can be double layer AB type and 3 layers ABA/ABC type.
PART 1 SHEET APPLICATIONS:
this kind of foam sheets are widely used in the field of stationery, handbags, luggage, cosmetics, commodity, plastic containers for medicine, food, drink, alcohol, pesticides, engine oil, chemical industry and glass bottles sealing/gaskets etc.
PART 2 MAIN TECHNICAL DATA:
Machine model Main data |
LSJ-65/30 | LSJ-90/30 | LSJ-120/30 |
| Extruder model | SJ-65/30 | SJ-90/30 | SJ-120/30 |
| T-die head with | 750mm | 950mm | 1350mm |
| Three roller calendars | 360mm | 400mm | 450mm |
| Sheet width | 400mm-600mm | 600mm-800mm | 800-1200mm |
| Sheet thickness | 0.8-3mm | 0.8-3mm | 0.8-3mm |
| Sheet Density | 0.4-0.7g/cm3 | 0.4-0.7g/cm3 | 0.4-0.7g/cm3 |
| Main electrical parts | Siemens PLC controlled, ABB inverter, Omron thermocontroller, Schneider contactor | ||
| Installed power | 110kw | 150kw | 180kw |
| Dimension | 22m*2.5*2.7m | 25m*2.8m*2.8m | 28m*3m*3m |
PART 3 PRODUCTION FLOWS:
Vacuum feeding machine>single screw extruder>hydraulic exchanger>T-die head>three roller calendars>thermoforming machine>cooling frame and edge cutting units>2 rubber rollers haul off machine>cutter-guillotine or twin position winder>material conveying able>stacker
this Line could also be used to produce PP PE HIPS EVA etc sheet
| ||
1. |
Single Screw Extruder |
1 set |
2. |
Co-extruder |
Optional |
3. |
Extrusion Die Head T-die Head |
JC-Times 1 set |
4 |
Hydraulic filter exchanging unit, |
1 set |
5 |
Three Roller Calendar |
1 set |
6 |
Cooling Frame |
1 set |
7 |
Edge Trimming Unit |
1 set |
8 |
Edge Material Crushing Unit |
1 set |
9 |
Double Roller Hauling off Machine |
1 set |
10 |
Cutting off Machine |
1 set |
11 |
Double Station Winding Machine |
1 set |
Application:
PP PE HIPS EVA EVAOH Composite sheet:
It has such characteristics as high intensity, good temperature resistance, good rot proof, etc. It can be produced with additives to different requirement such as improving intensity, improving toughness, improving rigidity, flame retardant, embossing, frosting, etc.
Applications: such as packing, printing, stationary, art works, etc.
Main product:gift/ad/file bag, lamp cover, food packing, etc
Sheet Specification:
Usual Sheet Width:600-1800mm
Usual Sheet Thickness:0.2-2mm
