Product Details

Export Markets:	North America, Eastern Europe, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	package in standard box

Quick Details

Brand Name: techwin
Color: white
Channel: /
Distance: /
distances: /
Model Number: Light Source CKSS-C-B
Application 1: Components testing
Application 2: Optical fiber sensor system
Application 3: Fiber optic gyroscope
Application 4: Spectrum Analysis
Application 5: Other lab applications

Specifications

Techwin C Band ASE Broadband Light Source for Fiber Optic Gyroscope

We try to supply Fiber Laser similar to keopsys fiber laser,NKT Photonics fiber laser,NP Photonics fiber laser,IPG Photonics fiber laser,BKtel Photonics fiber laser

Product Description:
Techwin C-band ASE light sources employ optimized Er-doped fiber laser and realize output laser which is Featured by different spectral width, high output power and extremely high stability of the output power Within the whole temperature range. Techwin C-band ASE light sources have extremely high spectral Flatness. for the purpose of different applications, the Gaussian spectral output can be provided according to the requirement of the user.

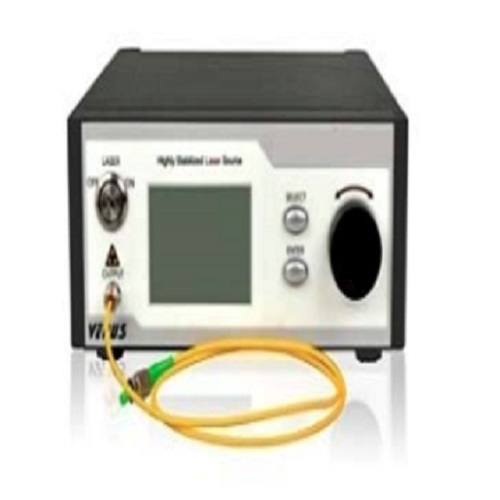

Techwin Multi-mode diode laser sources are a highly integrated system sources. the benchtop sources uses High-definition LCD which displays the current and voltage synchronously and has continuously tunable Output power; suitable for scientific research and manufacturing testing. In addition, Techwin can provide Compact module package for system integration.

Features:
Single mode output fiber(PM fiber optional)
Adjustable output power
High stability and high reliability
High flatness and low ripple
LCD display, easy operating

Applications:
Components testing
Optical fiber sensor system
Fiber optic gyroscope
Spectrum Analysis
Other lab applications

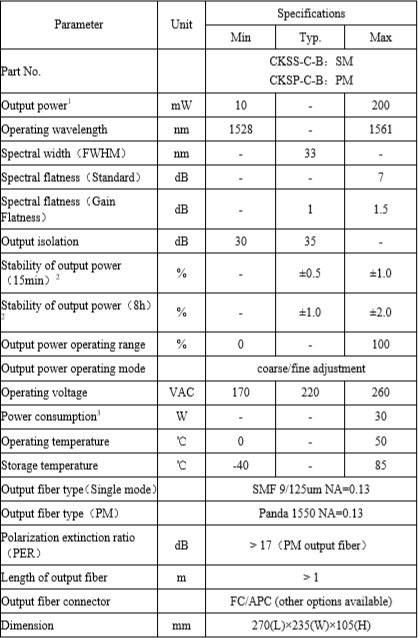

Specifications:

Techwin C Band ASE Broadband Light Source for Fiber Optic Gyroscope
1. Output power is optional, typical output power: 10mW, 20mW, 50mW, 100mW, 200mW;
2. the output power stability is measured under 25℃, 30mins after warm-up;
3. the Max power consumption refers to the consumption under Extreme temperature conditions.

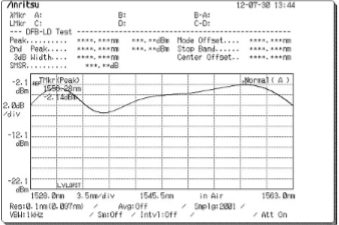

Spectrogram:
Techwin C Band ASE Broadband Light Source for Fiber Optic Gyroscope
Order Information:
CKSS-C-P--:SM
CKSP-C-P--:PM
P: Package, B-Benchtop, M-Module
PW: Output power in mW. Example: 50-50mW, 200-200mW
FL: Spectral flatness, 0-Standard, 1- Gain Flatness
