Omc Industry Co., Ltd.
China Manufacturer with main products: FTTH Cable, Adapter, Patchcord, ODF, Termination Box, Fast Connector, Pigtail, PLC Splitter |

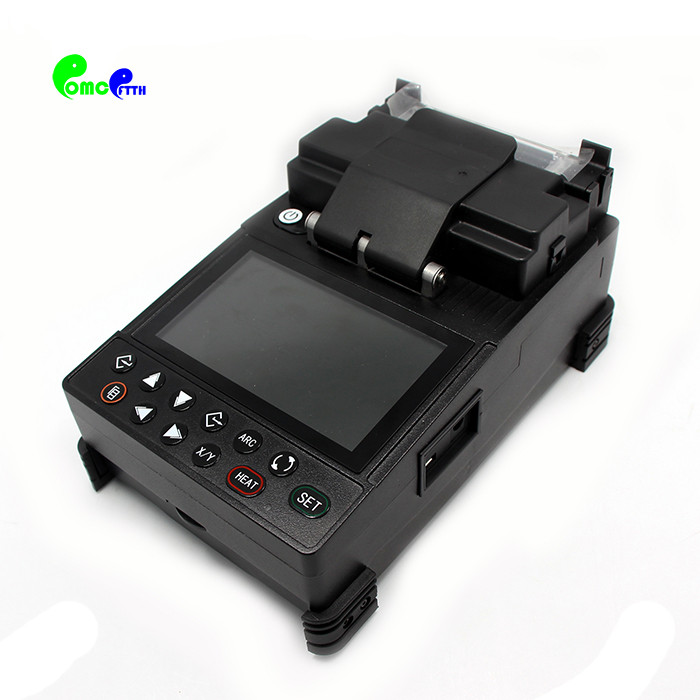

Handhold FTTX Small Fusion Splicer Mini Splicing Machine - OMCFS - 115
| FOB Price: | 900.00 - 950.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Box |
Quick Details
- Brand Name: OMC or OEM
- Wavelength: Wavelength
- Data Rate: Data Rate
- warranty: ISO,ROHS
- Connector: Connector
- Model Number: 8618682182825
- Part Number: OMCFS - 115
- Vendor: OMC
- Fiber cleaved length: 8-22mm
- Return loss: more than 60dB
- Protection sleeve length: 20mm, 40mm, 60mm
- Applicable fibers: SM, MM
- Language: English, Chinese, Russian, Spanish, Portuguese
- Weight: 1.95kg
Specifications
Handhold FTTX Small Fusion Splicer Mini Splicing Machine - OMCFS - 115
OMCFS-115 Handhold Fusion Splicer, with high performance price ratio, is the main product of OMC Company. with SAMLL& smart appearance, reliable quality, OMCFS-115 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of FTTX project.
Features
Used for FTTH and ordinary fiber project
Core to core alignment by PAS technology
8 sec splicing time and 30 sec heat time
300 X or Y view, 150 X and Y view
4.3 inch 16:9 digital high-quality LCD screen, observe X and Y view at same time
Three in one fixture, splicing single fiber, cable indoor and pigtail
Available: OEM SERVICE.
Available language: English, Russian, Spanish, Portuguese, Italian, French, German
Specification.
Model |
OMCFS-115 Handhold Fusion Splicer |
Splicing Type |
SM, MM, DS, NZDS |
Splicing Loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return Loss |
>60dB |
Splicing Mode |
Manual, Half Auto, Auto |
Fiber Alignment |
Core to Core Alignment by PAS technology |
Applicable Fiber |
Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
Splicing Time |
≤9s |
Heat Time |
≤30s |
Cleaved Length |
8~16mm |
Fiber Image/ Magnification |
300/150 |
View Display |
4.3 inch digital high quality LCD screen |
Tension Test |
Standard 2N (option) |
Heat Shrinkable Sleeve |
60mm, 40mm and serials heat Shrinkable Sleeve |
Battery Capacity |
300 cycles splicing and heating, 3 hours charging time ( splicing and charging at same time) |
Battery Life |
Cycling charge 300-500 times, easy to replace battery |
Electrodes Life |
3000, easy to replace electrodes |
Power Source |
≤20W |
Interface |
USB Convenient data download and software update |
Construction Lighting |
Built in high brightness, wide range of lights, easy to operate at night |
Power supply |
Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
Operating Condition |
0-5000m above sea level, Temperature: -10-60℃, Humidity:0~95%RH (No dew) |
Weight |
1.6KG (including battery), 1.1KG (excluding battery) |
Dimension (LxWxH) |
200mm(L)130mm(W)98mm(H) |
