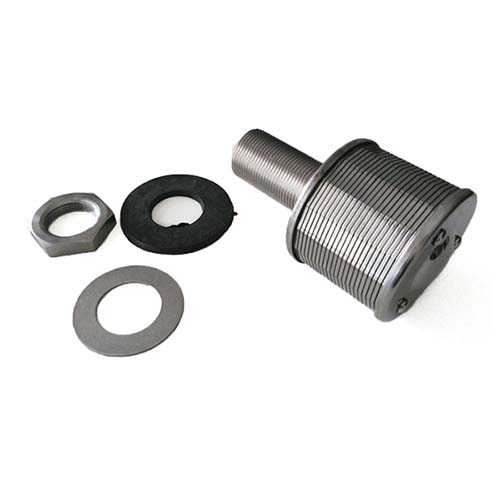

Wedge Wire Single Filter Nozzle with Cover Plate for Liquid Solid Separation

FOB Price:	1.00 - 2.00 USD/Meter
Supply Ability:	1,000 Meter(s) per Week
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	wooden

Quick Details

Brand Name: YUBO
Model Number: 001

Specifications

Our wedge wire filter nozzle is manufactured from stainless steel material or custom material. the wedge wire nozzle features non-clogging, high filtering efficiency and economical. It has a wide range of applications in water treatment applications. the different wedge wire sizes and slot sizes can suit different class filtration. so we provide the custom service.

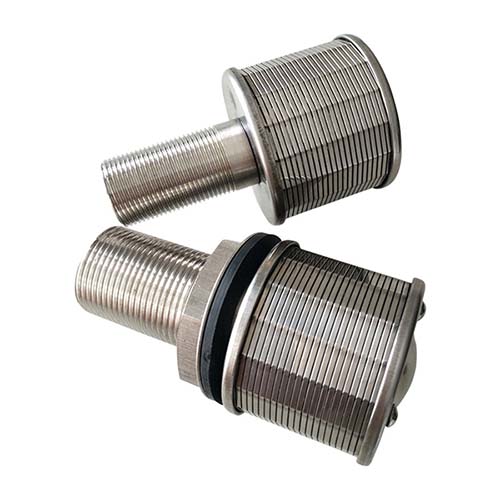

Wedge Wire Single Filter Nozzle with Cover Plate for Liquid Solid Separation
Advantages of Wedge Wire Screen Filter Nozzle:
1. Type 316L stainless steel construction.
2. Continuous slot design provides an increased open area for better collection.
3. Standard nozzles are 2in./51mm diameter and can be attached to the plate either with threaded end fittings or with" L" bolts.
4. Standard slot opening is typically range between 0.006" (0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. the wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Less expensive than other screens of equal efficiency.

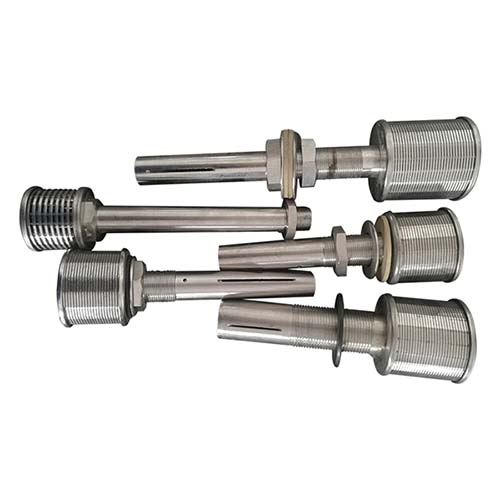

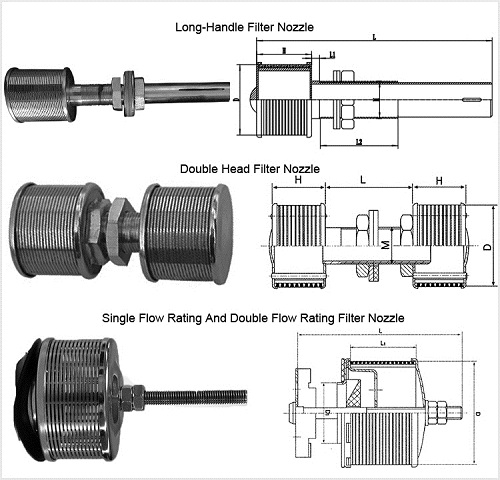

Different Type of Wege Wire filter nozzle:
Wedge Wire Single Filter Nozzle with Cover Plate for Liquid Solid Separation
Usage of Wedge Wire Screen Filter Nozzle

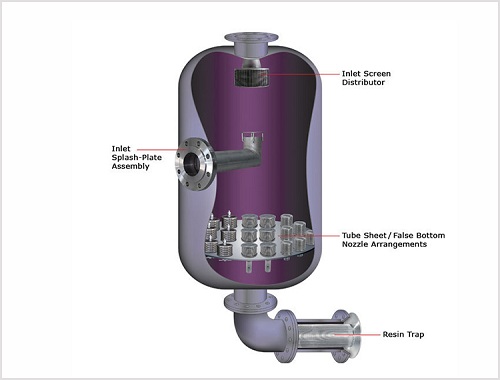

Wedge wire filter nozzles are used widely in down-flow reactors for liquid/solid or gas/solid separation. the liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

by optimizing the ratio between the head loss of each component (open area and fitting) we can determine the optimum quantity of nozzles to ensure a perfect distribution or collection without channeling, wall effects, or dead zones.

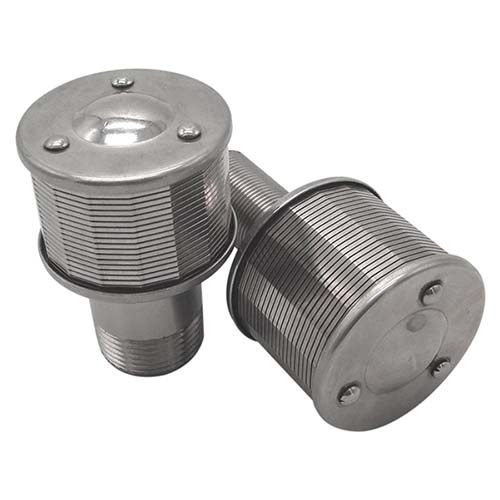

Wedge Wire Single Filter Nozzle with Cover Plate for Liquid Solid Separation
