JL-X Waterproof Test Drip Ip Box IEC60529 for IPX1-IPX2

FOB Price:	30000.00 - 45000.00 USD/Set
Supply Ability:	10 Set(s) per Month
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China

Quick Details

External Size: 204*125*36
Type: Distribution Box
Protection Level: LM-79
Brand Name: LISUN
Color: White
Model Number: JL-X

Specifications

JL-X waterproof test machine is according to IEC60529, IEC60598, IEC60335 and IEC 60034-5: 2000. the JL-X includes the Following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test Organization for the products such as electrical & electronic products such as LED luminaires as well as in the relevant quality control Department for the waterproof detection of the enclosures protection grades.

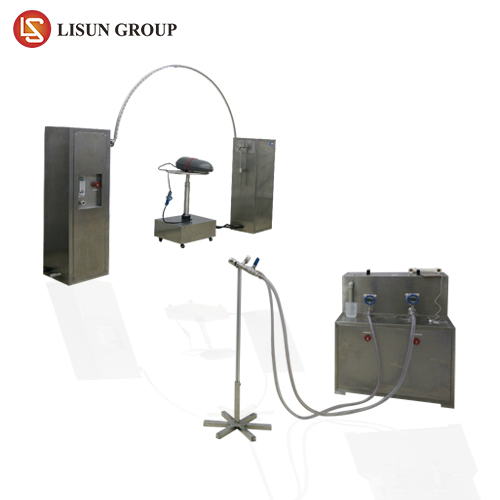

the whole JL-X waterproof test system includes:
Drip Box (JL-12): the drip box is for IPX1 and IPX2 drip test. the drip Box size is 800x800x75mm (LxWxH). the diameter of drip hole is 0.4mm, distant of drip hole is 20mm, sample can be over 150kg
Swing Pipe Water Spray Test Equipment (JL-34): It is for IPX3 and IPX4 Test, the semi-diameter of swing pipe is 1meter. IPX3 is 120degree and IPX4 is 180degree. the diameter of inside swing pipe is 0.4mm. the automatic sample Rotating base diameter is 600mm and speed is 1~5rpm which controlled by PLC Panel
Waterproof Jet Test Device (JL-56): with water supply device size is 1000x1000x600mm, the bore diameter is 6.3mm (IPX5) and 12.5mm (IPX6). Diameter of hole is 6.3mm for IPX5 and 12.5mm for IPX6. the water speed is 12.5 ±0.626L/min for IPX55 and 100 ±5L/min for IPX6
Immersion tank Waterproof test Device (JL-7): It is for IPX7 test. the Top of the water tank size is 1000x1000x1200mm. the sample testing base is max 120kg. It includes two temperature channels meter and digital display.
Immersion tank Waterproof test Device (JL-8): It is for IPX8 test. It Can measure 0~50m water depth. the water immersion size is diameter is 600mm and height is 1200mm. the compressive stress is 10 atmospheric pressures or Design customer request.
JLX Waterproof Test Drip Ip Box IEC60529 for IPX1IPX2
