Hebei Zizhuo Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Keel Roll Forming Machine, Roller Shutter Door Machine, Colored Steel Tile Forming Machine, Door Frame Forming Machine, Sandwich Panel... |
Home
>Products Catalog > Roofing sheet roll forming machine > Europe Type High Precision Metal Roofing Sheet Roll Forming Machine

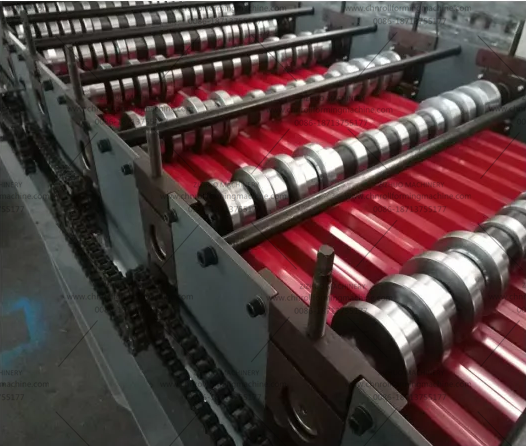

Europe Type High Precision Metal Roofing Sheet Roll Forming Machine
| FOB Price: | 14,000.00 - 16,800.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | shipping by 40 feet container |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | nacked packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 18 month
- Certification: CE/SGS
- Brand Name: ZZ
- Condition: New
- Weight: 4.8 t
- Dimension(L*W*H): 8.2*1.5*1.6M
- Voltage: 380V 50Hz 3phase
- Power(W): 5.5+4KW
- Model Number: c40
- Production Capacity: 16-18 m/min
- Use: Roof
- Tile Type: Colored Steel
- Type: Tile Forming Machine
Specifications
Technical parameters:
No. |
Item |
Parameter |
Remark | |
1 |
Suitable material |
Type |
Color steel, galvanized steel |
|
Thickness(mm) |
0.35-0.6mm |
Test material standard 0.45mm | ||
Yield strength (Mpa) |
≤300mm |
|||
Width (mm) |
about 1200mm |
|||
2 |
Forming speed |
about 2 m/m |
Not include cutting time | |
3 |
Motor of forming system (kw) |
5.5kw |
Depends on final design | |
4 |
Hydraulic station power(kw) |
4kw |
Depends on final design | |
5 |
Voltage requirements |
AC380V, 50Hz, 3phase |
According to customer's request | |
6 |
Roller station |
16-18 steps |
||
7 |
Cutter material |
Cr12 Mov |
||
8 |
Wall thickness |
16mm |
||
9 |
PLC control system |
Delta from Taiwan |
||
10 |
Touch screen |
Delta from Taiwan |
||
Process Flow Chart
Decoiler --- guiding system --- roll forming --- cut to length --- product to supporting table
