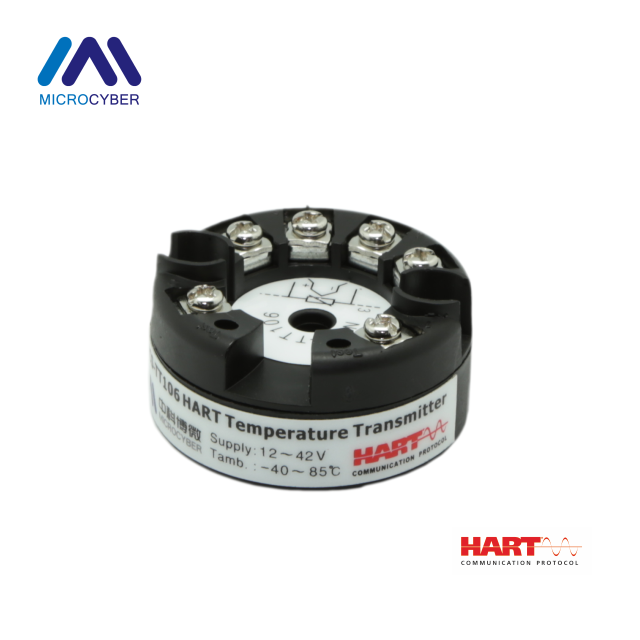

NCS-TT106 Head Mounted Temperature Transmitter
| FOB Price: | 60.00 - 78.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Set(s) per Month |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Temperature range: -40~80
- Accuracy: 0.1
- Theory: Temperature Transmitter
- Usage: Industrial
- Brand Name: Microcyber
- Model Number: NCS-TT106
Specifications
NCS Series of Intelligent Transmitter have been designed with high precision and high reliability, high stability. the pressure, temperature, currents and other physical quantities are displayed on LCD module. Zero drift, range settings and many other functions, are realized by the magnetism bar operation. The interoperability between different systems and equipments are realized by the Equipment Description Document, which is compatible to a variety of device management software, and adapting to harsh electromagnetic environment. NCS Series of Intelligent Transmitter have been used in inflammable and explosive places according to Intrinsically Safety Design.
Features
Support multiple thermal resistances and thermocouples
Thermal resistance supports2/3-wire connection mode
Thermocouple can use cold end compensation function
Details
Basic Parameters
Bus Power Supply |
9~32VDC Current consumption (static):≤14mA(FF/PA) 11V~35 VDC(HART) |
Input Signal |
Pt100, Pt1000, Cu50, Cu100 Ω, 0, 0 to 500 ~ 4000 Ω resistance B, E, J, N, K, R, S, T eight degrees of thermocouple -100mV ~ 100mV voltage signal |
the channel number |
Single Channel |
BUs PRotocol |
FF/PA/HART |
Insulation |
between the terminal and the housing:500Vrms(707VDC) |
OPerating temperature |
-40℃~85℃ |
Humidity Range |
0%~95%RH |
Starting Time |
≤5secs. |
Turnover Time |
0.5secs. |
Electromagnetic compatibility |
in line with the GB/T 18268-2010 |
Explosion-Proof sign |
Ex ia IIC T4 Ga(HART) |
