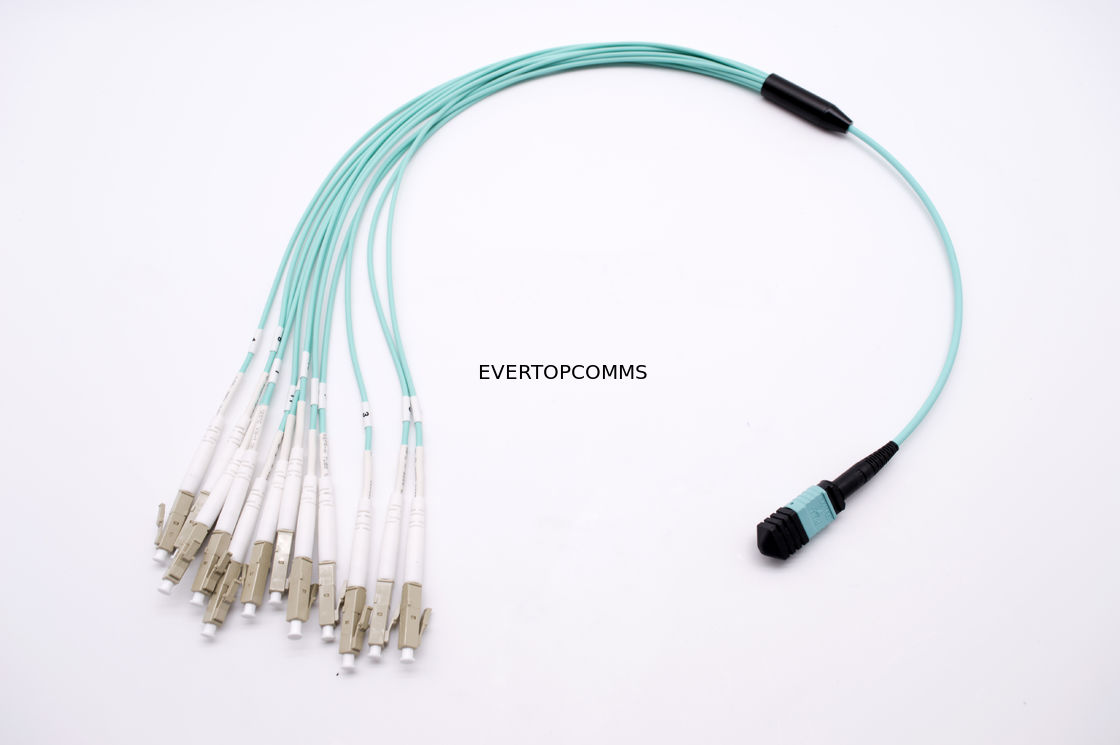

12 Core MPO-LC UPC OM3 Fiber Optic Patch Cord PVC Material for Active Device Termination
| Supply Ability: | 5,000 Piece(s) per Day |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | 1 PC/bag, 5PCS/10PCS per bigger bag |
Quick Details
- Brand Name: EVERTOPCOMMS
- Wavelength: /
- Data Rate: /
- warranty: /
- Connector: /
- material: PVC
- core: 12
- Jacket Color: Aqua
Specifications
| Specifications: |
| Fiber Type: OS1(9/125um) OM1(62.5/125um) OM2(50/125um) OM3(10GIG) |
| Connector Type: MPO-LC |
| Fiber Cable Jacket material: PVC/LSZH |
| Standard color: Singlemode:Yellow color, Multimode:Orange/Aqua/Violet color or Customized |
| Cable strain relief (boot) O.D.: 0.9mm//2.0mm/3.0mm |
| Compliant with JIS C-5973, IEC RoHS |
| Q.C.: 100% function testing include Insertion loss, Return loss and Connector end face geometry. |
| Parameter table: | ||||
| FC,SC,ST and LC | MTRJ and MU | |||
| PC/UPC | APC | PC/UPC | ||
| Multimode | Insertion Loss | ≤0.2dB | ≤0.3dB | |
| Return Loss | ≥35 dB | ≥35 dB | ||
| Singlemode | Insertion Loss | ≤0.2dB | ≤0.2 dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥60 dB | ≥50dB | |
| Operating temperature range: -40 ~ 80 C Storage temperature range: -40 ~ 80 C | ||||
| Tensile strenth: 10N | ||||
| Min. Bending radius: 35mm | ||||
| Ordering Information: | |||||
| FIBER TYPE | CONNECTOR 1 | CONNECTOR 2 | CABLE SIZE | CABLE TYPE | BOOT |
| 1. 9/125 | 1. SM Simplex | 1. SM Simplex | 1. 0.9mm | 1. Yellow PVC | 1. Blue |
| 2. OM3 | 2. MM Simplex | 2. MM Simplex | 2. 2.0mm | 2. Orange PVC | 2. Beige |
| 3. 50/125 | 3. APC Simplex | 3. APC Simplex | 3. 3.0mm | 3. White PVC | 3. Green |
| 4. 62.5/125 | 4. SM Duplex | 4. SM Duplex | 4. Yellow LSZH | 4. Black | |
| 5. OM4 | 5. MM Duplex | 5. MM Duplex | 5. Orange LSZH | 5. Blue | |
| 6. APC Duplex | 6. APC Duplex | 6. White LSZH | 6. White | ||
| 7. Grey LSZH | 7. Red | ||||
| ETC | ETC | ||||
Features:

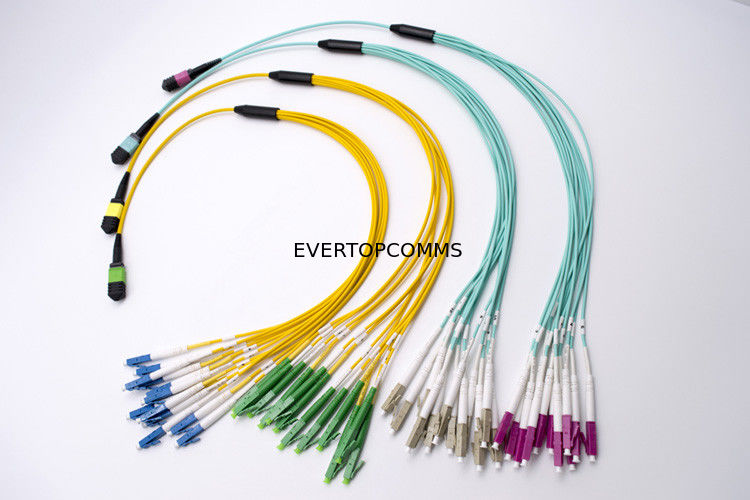

- with 12-fiber and 24-fiber MPO/MTO connector standard
- Available in OS1/2, OM2, OM3 and OM4
- Available in FC,LC, SC, ST, MU, and MTP
Applications:
- FTTX applications
- CATV, and Multimedia
- Active device termination
