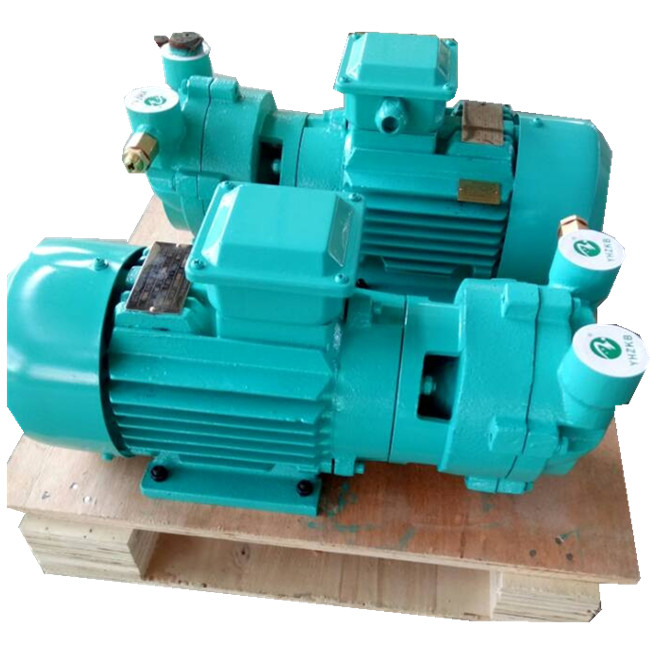

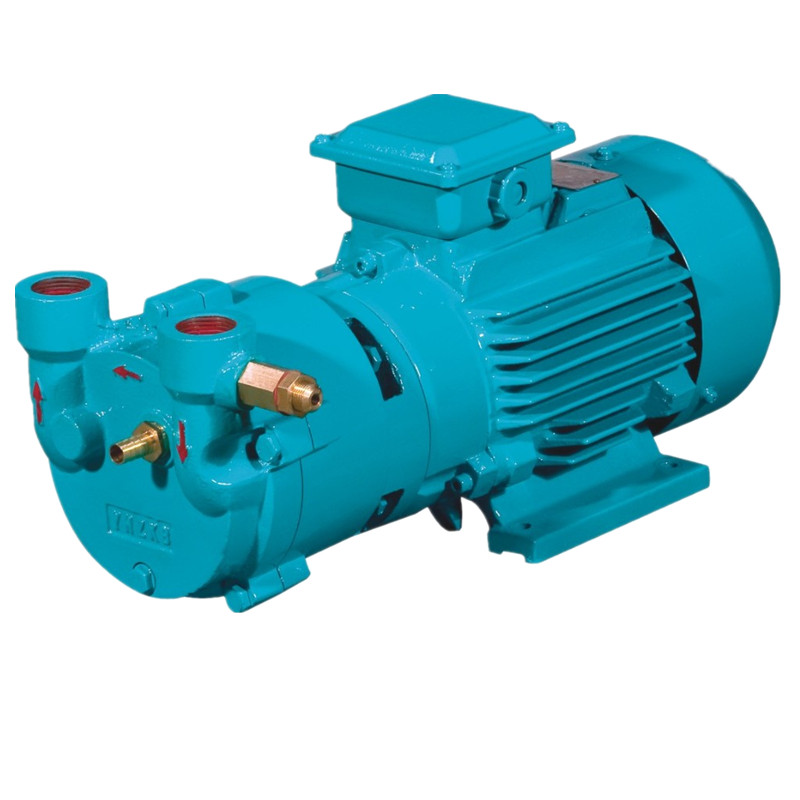

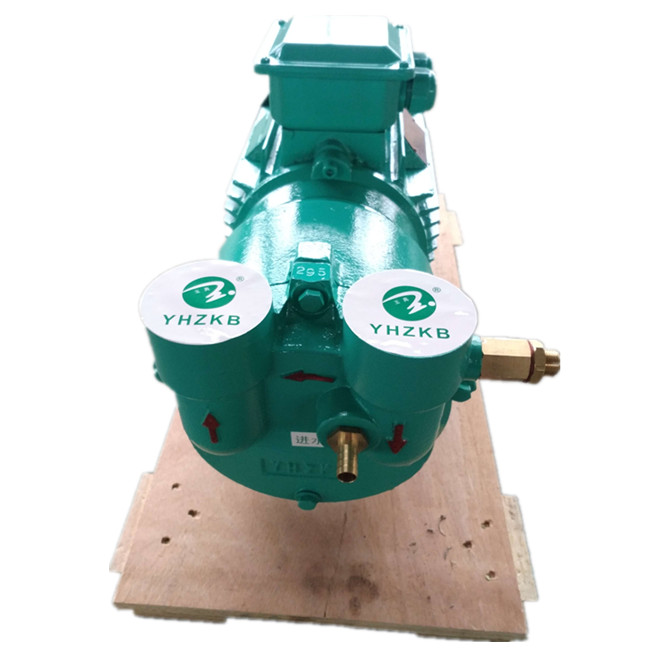

SK-0.5A 1.5kw Single Stage Monoblock Liquid Ring Vacuum Pump Used for Capsule Filling Machine

FOB Price:	285.00 - 600.00 USD/Set
Supply Ability:	300 Set(s) per Month
Shipping:	Shipping by sea/by air/by courier can be arranged
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China

Quick Details

Pressure: Low Pressure
Standard or Nonstandard: Nonstandard
Power: Electric
Structure: Single-stage Pump
Brand Name: YHZKB
Theory: Vacuum Pump
Model Number: SK-0.5A
Capacity: 0.5m3/min
Ultimate vacuum: 63hpa
Pump casing material: cast iron
Impeller material: alloy copper
Seal: anti-corrosive fluoro rubber mechanical seal
Gross weight: 45kg
Net weight: 40kg
Packaging size(L*W*H): 590*290*360mm
Color: blue/silver/green/grey/customer requirements
Applied industry: autoclave sterilizer,capsule filling machiner,plastic extrusion lines,milking machiner,food and beverage machine

Specifications

Pump descriptions:
this kind of pump have solved the problems that when absorbing lots of water,can not work continuously;when scaling seriously for hard water,can not start beause of stopping working for a long time.and widely used on tubing machine and molding machine.Items:SK-0.15A SK-0.3A,SK-0.5A SK-0.8A,SK-1.2A,SK-2A,SK-3A.Motor power from 0.55~5.5KW;Capacity:0.15~3M3/min,Ultimate vacuum:-0.095MPa.

Pump specifications:
SK05A 15kw single stage monoblock liquid ring vacuum pump used for capsule filling machine

Advantages:

Production Advantages:

SK &SK-A SK-D Liquid ring vacuum pump advantages:

1,Direct connected,simple structure,small volume

2,Impeller material:alloy copper whole casting (made by ourselves)

3,Pump chamer coating treatment,anti-scalling

4,Adopt custom anti-corrosion mechanical seal

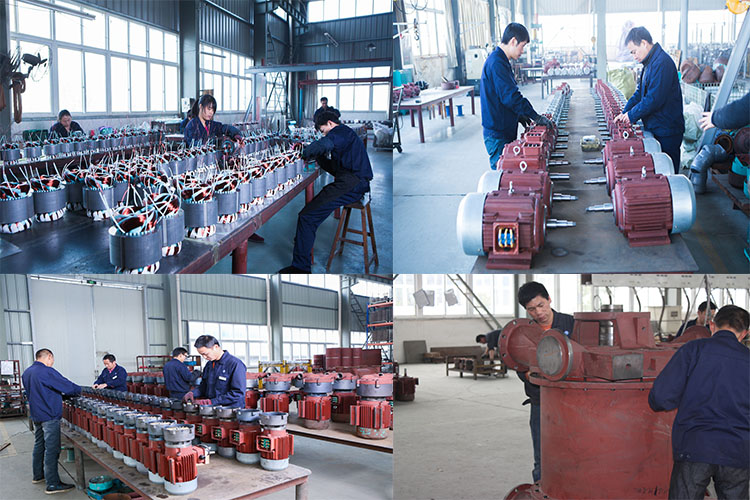

5,All motors are certified by CE and manufactured by self to ensure their quality

6,We have a complete set of microcomputer controlled testing system (All products are subject to inspection.)

Packaging:

Standard export polywooden cases.
Customized packaging can be available.

Shipping:

Shipping method	Note
Express	Door to door, very convenient, don't need customs clearance or pick-up.
by air	Airport to airport, you need to do the customs clearance and pick up the goods at your local airport.
by sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port.

Company information:

Established in 1986, our company has been focusing on the development and manufacture of vacuum pumps and water pumps. We are a comprehensive pump company integrating production, sales and after-sales maintenance services.

Our main products include liquid ring vacuum pumps;rotary vane vacuum pumps;roots vacuum pump;centrifugal water pump and customized vacuum pump system,which are widely used in all kinds of plastic extrusion line;medical and pharmaceutical industry(autoclave sterilizer/capsule filling and sealing machine);food-related industry(beverage machine/milking machine/sugar plant);chemical industry;power plant;coal mine etc.
