420 Way Telephone Optical Transceiver-Zmux-3300 Bt420

Specifications

Zmux-3300 bt420 is a centralized integrated service access platform independently developed and produced by Guangzhou yinxun. It can be used for 420 telephone optical terminals based on optical fiber or E1 line, meet the unified access, multiplexing and transmission requirements of 64K narrowband service and broadband data service, and is suitable for providing access and transmission services of large capacity services for users.
Zmux-3300 bt420 420 channel telephone optical transceiver works stably and reliably with low power consumption, high integration, small size, maintenance free and stable performance. Provide high-quality, optimized and efficient application solutions and technical services.
Zmux-3300 bt420 420 line telephone optical terminal is mainly used for telephone, audio, data, image and other integrated services access. through multiplexing to optical fiber or E1 line, point-to-point or point-to-multipoint communication function of integrated services signal is realized.

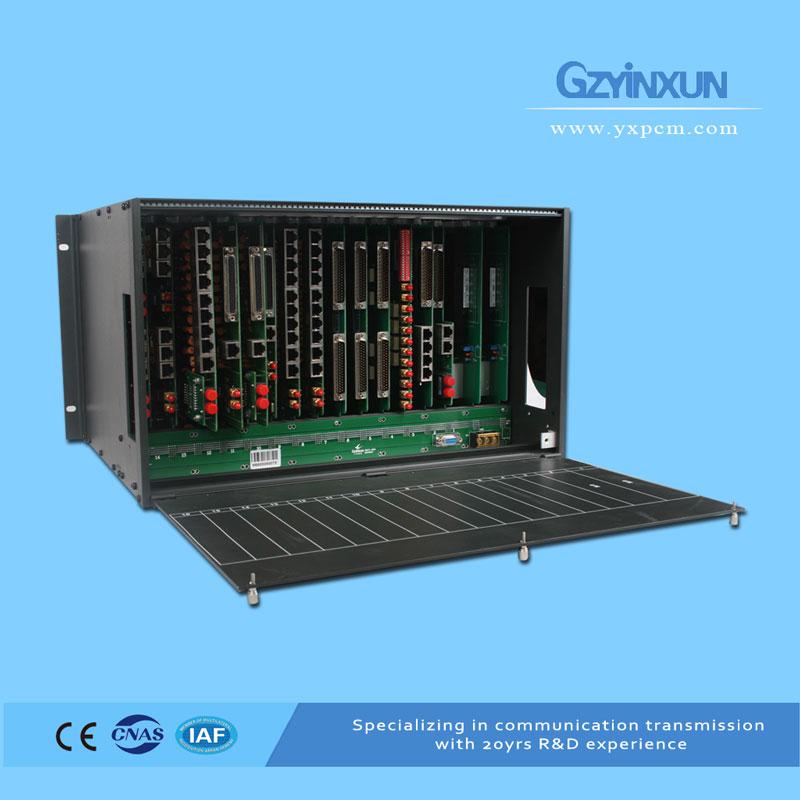

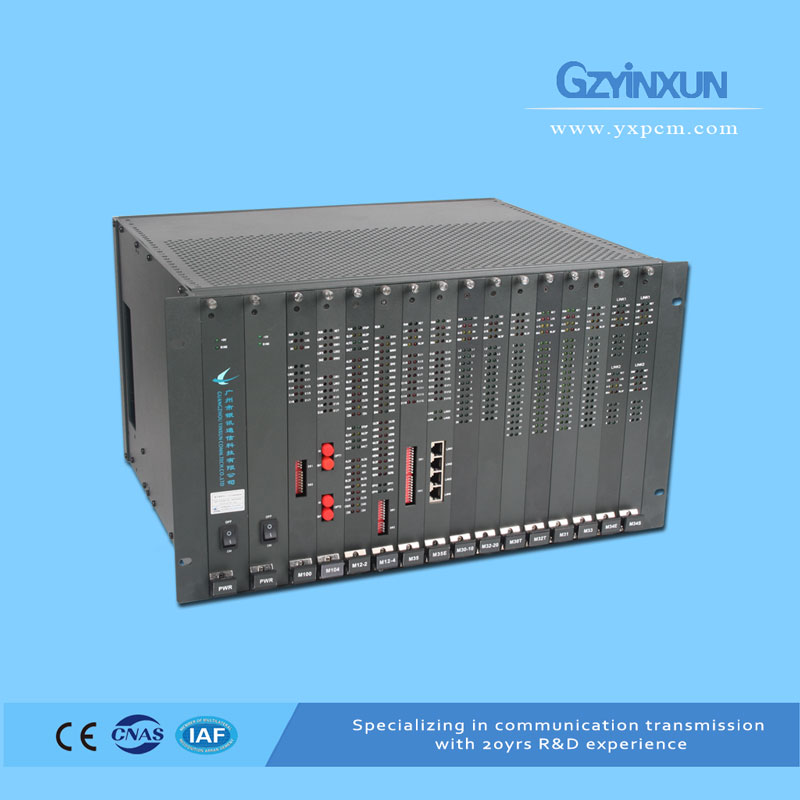

Zmux-3300 bt420 420 channel telephone optical transceiver is composed of chassis, power board and IO service board. the chassis adopts the standard 19 inch 6U high and plug-in card structure, with 16 board slots in total, including 2 power board slots and 14 universal IO business board slots. It can be flexibly configured according to the different requirements of business capacity or types: optical transmission board, cross connection board, cross multiplexing board, multi business interface board, voice interface board and other universal IO board,
Zmux-3300 bt420 420 line telephone optical transceiver has stable and reliable performance, and has many successful cases of important private network customers. It has been widely used in power, military, railway, highway, mine, oilfield, government, group company and other industry customers, and has been recognized and affirmed by customers.

Functional characteristics

1. Large capacity: 19 inch 6U chassis is adopted, which can provide 1-420 channels of service access.
2. Safe and reliable: the distributed structure is adopted, each IO service board works independently, and the faults do not affect each other.
3. Dual power supply protection: optional dual power input 1 + 1 protection, dual power supply board redundancy backup; local equipment, remote equipment, each equipment can provide two completely independent power supply boards, main and standby protection;
4. Power supply monitoring: it supports the real-time monitoring function of the working status of the internal power board of the local and remote equipment, as well as the real-time monitoring function of the external Emerson switching power supply;
5. Transmission link: optical fiber or E1 line transmission mode can be selected to realize single direction or multi direction communication function.
6. Flexible configuration: optional optical transmission board, cross connection board, cross multiplexing board, multi service interface board, voice interface board and other general IO boards.
7. There are many types of services: FXO / FXS, 2 / 4-wire E & M, asynchronous / synchronous RS232, asynchronous / synchronous RS422, RS485, 10 / 100Base-T, v.21/v.22, V.24, V.34, switching value, can bus, magnet telephone, hotline, V.35, G.703, 64K in the same direction, ADS-B radar, VHF VHF, synchronous radar data, meteorological self observation data, transfer data, meteorological radar data, blind landing data and other services.
8. Centralized monitoring system: optional network management function, which can monitor the configuration information, transmission link status, link protection status, user interface status of the whole network equipment.
