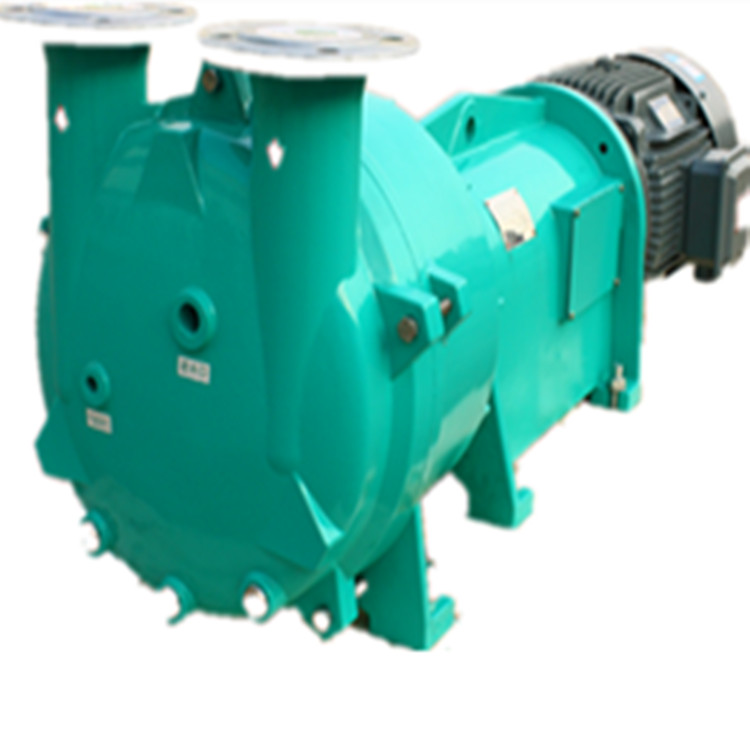

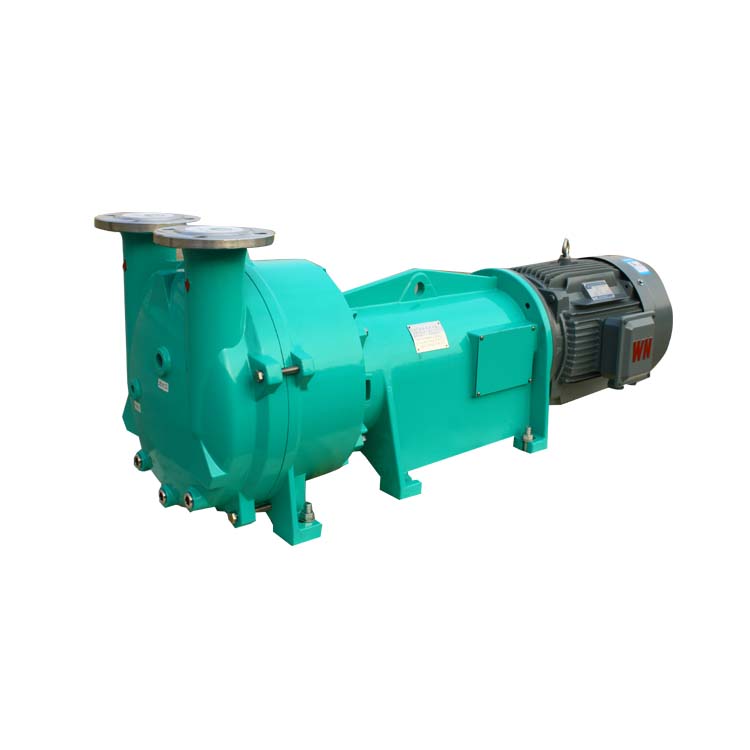

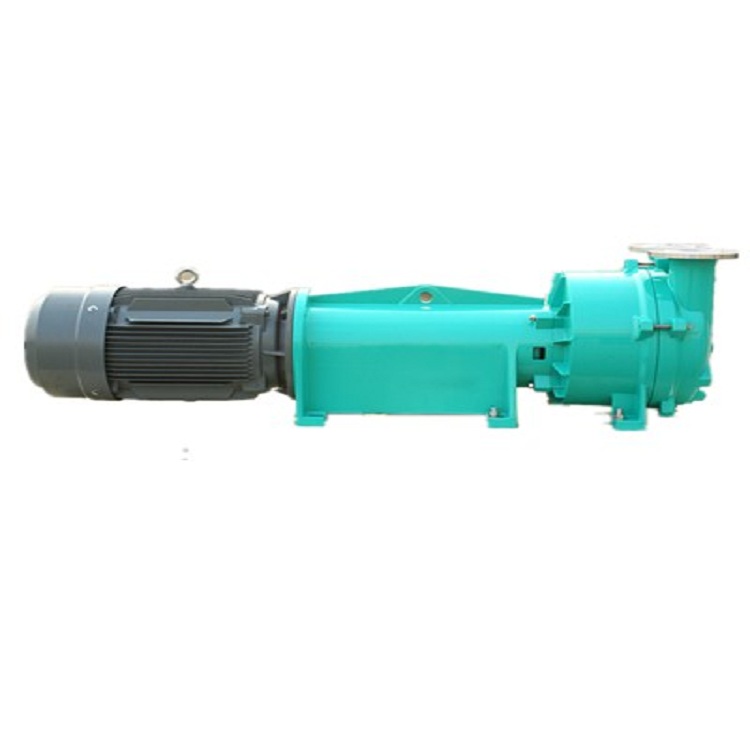

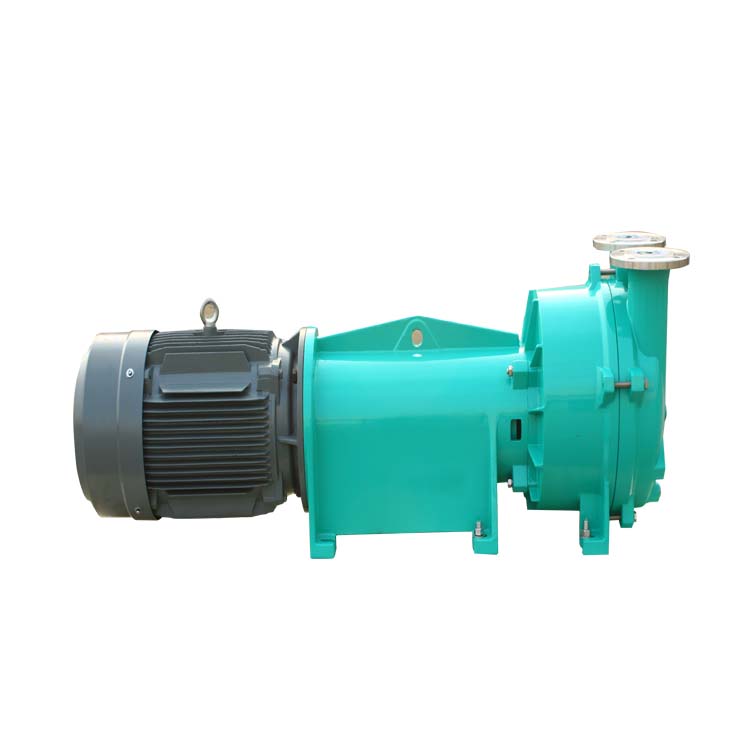

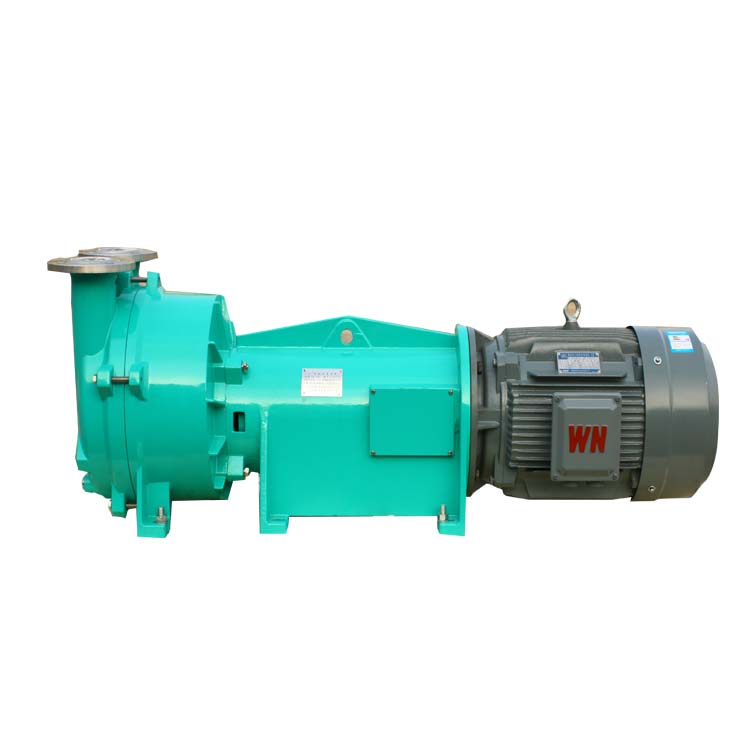

YHZKB Brand Model 2BV6 110 4kw Flange Single Stage Liquid Ring Vacuum Pump Pump & Motor Connected by Bracket

FOB Price: 900.00 - 2000.00 USD/Set
Supply Ability: 300 Set(s) per Month
Shipping: Shipping by sea/by air/by courier can be arranged
Payment Terms: T/T, Western Union
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Anhui in China

Quick Details

  • Pressure: Low Pressure
  • Standard or Nonstandard: Nonstandard
  • Power: Electric
  • Structure: Single-stage Pump
  • Brand Name: YHZKB
  • Usage: Air Pump
  • Theory: Vacuum Pump
  • Model Number: 2BV6 110
  • Capacity: 2.75m3/min
  • Ultimate vacuum: 33hpa
  • Pump casing material: cast iron
  • Impeller material: stainless steel 304
  • HS Code: 841410
  • Color: green/blue/silver/grey/customer requirements
  • Motor: 220/380V,50HZ,3phase/customer requirements

Specifications

Product descriptions:

2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.



2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent.


Specifications:
YHZKB brand model 2BV2 060 081kw single stage monoblock liquid ring vacuum pump
Applications:
It is widely used in all kinds of plastic extrusion line;medical and pharmaceutical industry(autoclave,sterilizer,capsule filling machine);EPS foam machine;food-related industry;chemical industry;vacuum filtration;vacuum water diversion;vacuum feeding;vacuum evaporation;vacuum concentration;vacuum reflow;vacuum degassing,etc
