Kitchen & Bathroom Basket Forming Machine

Supply Ability:	10 Set(s) per Month
Shipping:	FOB SHENZHEN
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Africa, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden box

Quick Details

Brand Name: union spring
Power: Electricity
Type: Wire Binding Machine
Max Punching Capacity: 100
Max binding capacity: 1
Model Number: US-540R
WIRE DIAMETER: 1.0-4.0MM
COLOR: grey

Specifications

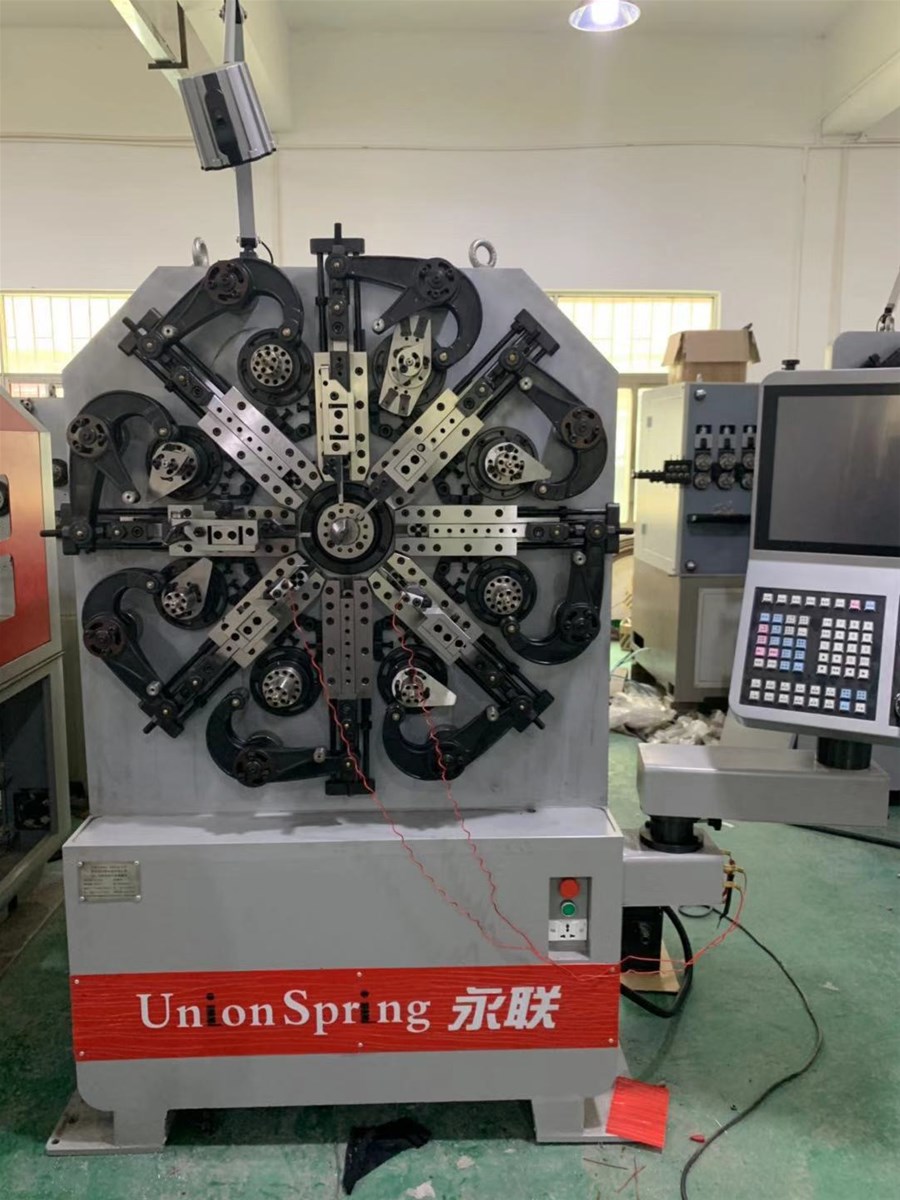

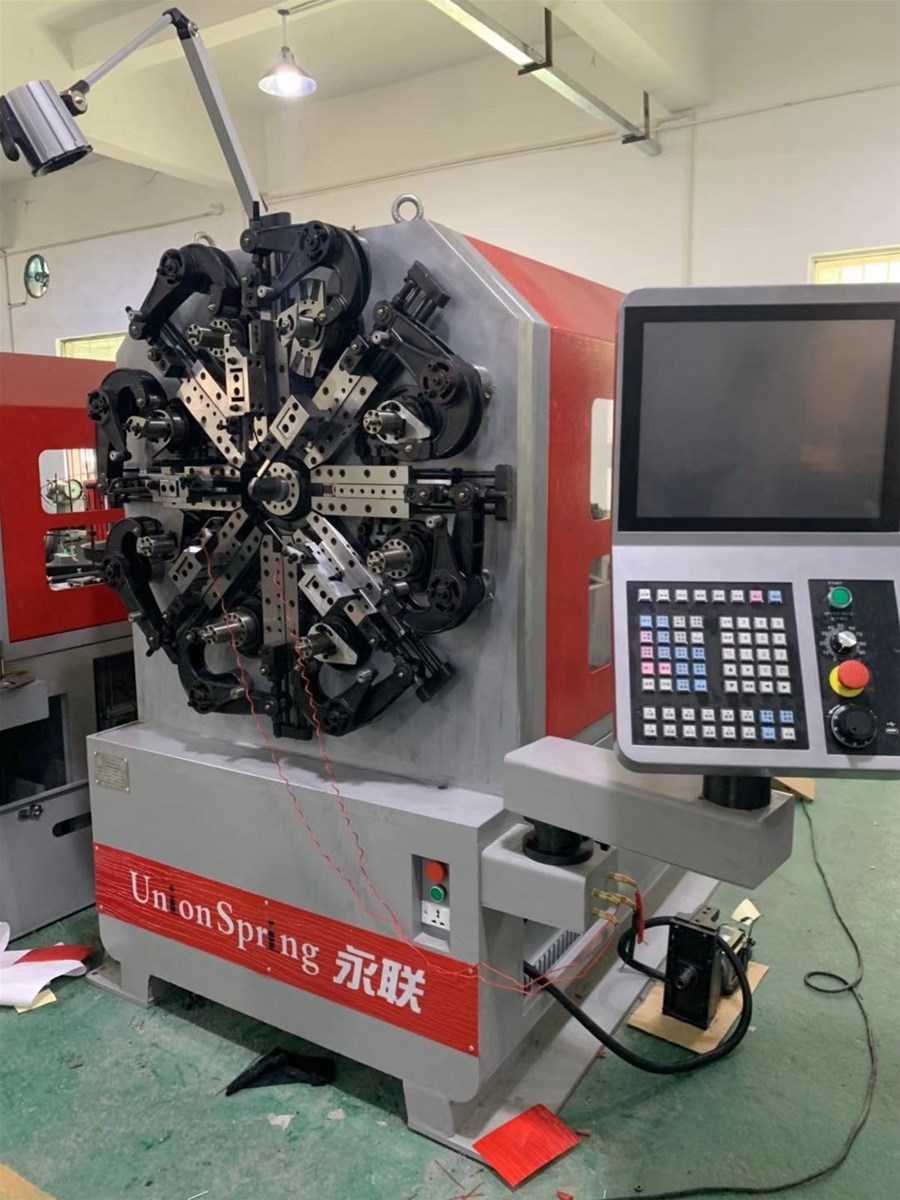

Kitchen and bathroom basket forming machine
Machine description:

1. Wire rotary machine adopts Taiwan computer control system and Japanese servomotor, which has the characteristics of easy operation, high speed and high precision.

2. the five axis are cam axis, wire feeding axis, rotary wire axis, rotary quill axis, and spinner axis(optional accessory). the five axis can be operated synchronously. the position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. It is very easy to edit and modify the program data online.

3. the cam part has eight sets of slides, crank arm and CAM rotating axis. the wire feeding system is installed horizontally behind the machine. the wire rotary axis can control the rotation of wire, making the speed of high-difficulty special-shaped spring adjustment easier and faster.the rotating quill axis can be rotated positively or negatively, and the spinner device is installed on the slide.

4. the wire rotary spring machine can be applied to the production of lighting, electronics, toys, home appliances, sports equipment, automobile and other industries need precision spring.

Specification:

Model	US-520R	US-540R
Axis	4/5	4/5
Wire Diameter	0.3-2.5mm	0.8-4.0mm
Wire WheelSets	2sets	3sets
Cam Axis	2.7KW	4.5KW
Wire Feeding Axis	2.7KW	4.5KW
Rotary Quill Axis	0.4KW	0.4KW
RotaryWire Axis	2KW	2.7KW
SpinnerAxis	0.4KW	1KW
MachineAxis	135015001700mm³	165017001900mm³
Machine Weight	1200kg	2100kg
