Csrayzer Optical Technology
China Manufacturer with main products: Free Space Faraday Isolator, Acousto Optic Modulator AOM, Fixed Foucs Collimator, Fiber Coupled SESAM, Polarizaiton Maintaining Optic... |

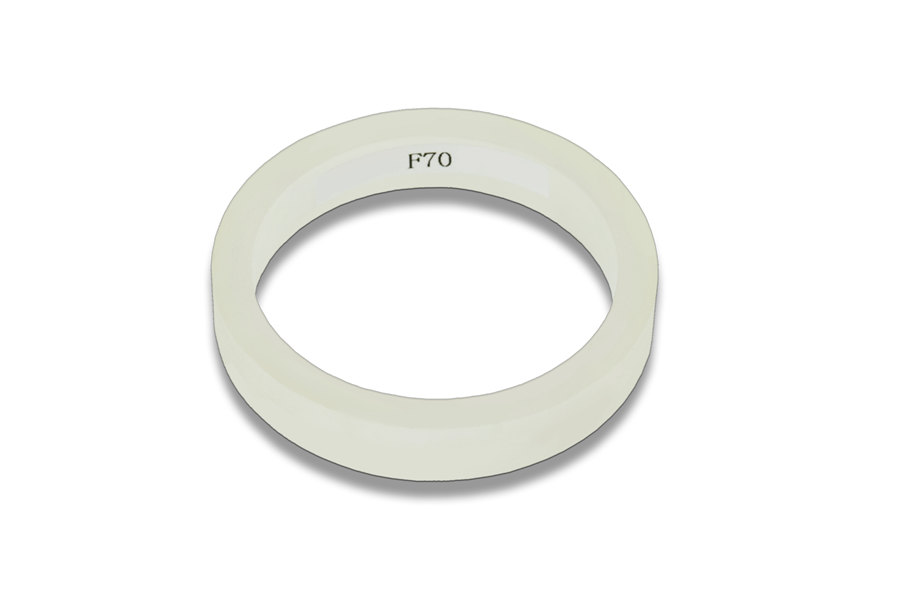

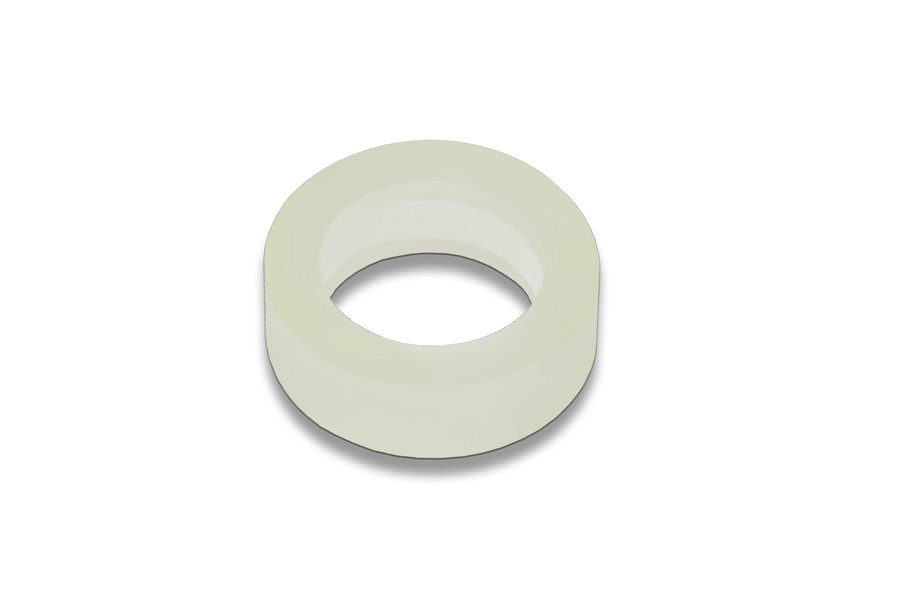

CSRayzer - Free Standing Fiber Coil for FOG 70mm Diameter
| FOB Price: | 1.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Year |
| Shipping: | By Air Courier from Wuha, China |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Solid Blister Box Package with Outer Paper Box |
Quick Details
- Brand Name: CSRAYZER
- Wavelength: 1064nm
- Data Rate: N/A
- warranty: 1 Year
- Connector: FC/APC
- Model Number: F70
- Company: Rayzer Optical Technology Co.,Ltd
Specifications
Introduction

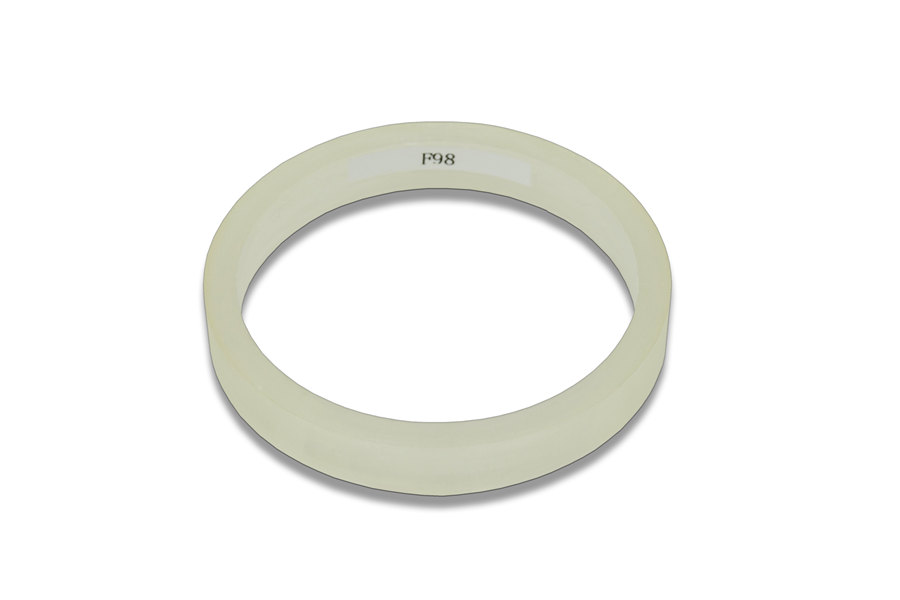

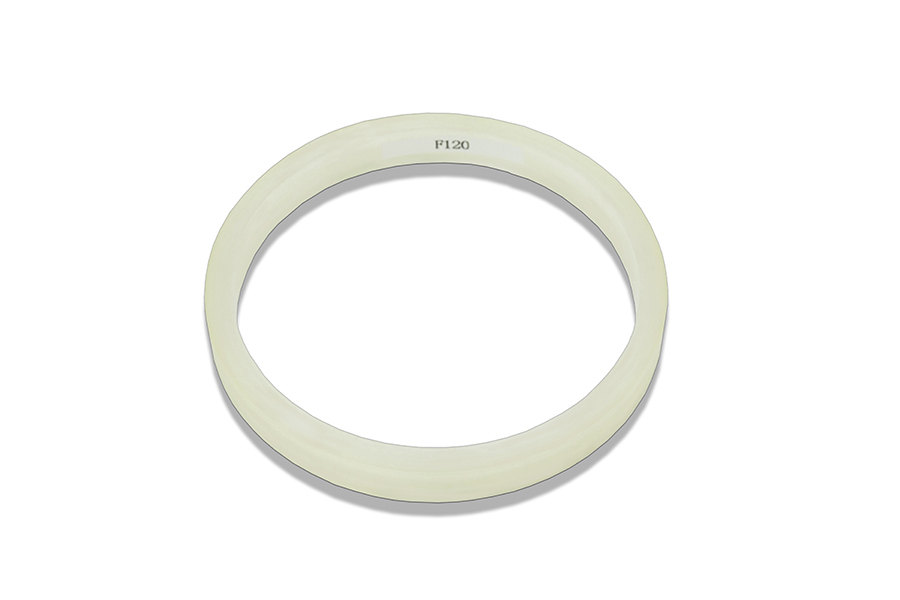

CSRayzer's FiberGyro CoilIs the core sensitive component of Fiber Optic Gyroscope (FOG). the quality of winding process directly determines the accuracy of FOG. with strong R&D capability and our own designed high performanceFiber Coil Winding Machine ZKRZ-RHJ4.0, we provide the design of the winding frame, Customized Fiber Coil, and also the fiber coil winding process service, according to customer's specific requirements.
Our Fiber Gyro Foil has the characteristics of low Shupe error, low thermal stress and high anti-vibration ability. The precision of the Fiber Coil made into the FOG has reached accuracy less than 0.005°/h. They have been widely used in the fields of Fiber Optic Gyroscope, fiber Optic Hydrophone, radar and fiber optic currency transformer, with an annual production capability of 8000pcs.
Specification
Parameters |
Unit |
Values |
Inner Diameter |
mm |
15mm-150mm |
Fiber Coil Height |
mm |
5mm-55mm |
WindingLength |
m |
50m-5000m |
Outer DIameter ofFiber |
m |
100μm,135μm,165μm,250μm |
OPeratingWAvelength |
nm |
1310nm\1550nm |
POlarization CRosstalk@Room Temperature |
dB/km |
≤22dB/km |
Insertion Loss |
dB/km |
≤0.8dB/km |
Polarization CRosstalk Variation@FullTEmperature |
dB |
≤2.5dB |
InsertionLossVariation@FullTEmperature |
dB/km |
≤0.15dB/km |
OPerating TEmperature |
℃ |
-45-75 |
Storage TEmperature |
℃ |
-55-85 |
WindingProCedure |
|
Singlepole / QUadrupole / Octupole SYmmetrical |
CUstomization is available! | ||
Mention!!!
Rayzer's product portfolio includes various kinds of:
SuperMini Optical Passive Components
Single Mode Optic Components
Polarization Maintaining Optical Components
Fiber GYRO Coil and coil winding machine
High power optic components
Free Space Faraday Isolator and Faraday Rotator
Acousto-Optic Modulator (AOM)
Mini Hybrid packaged components
Special Designed Optical passive modules
All products could be customized!
Applications are for Fiber Laser, Fiber Sensor, Fiber LIDAR system and solutions.
Best price, best quality, and best service, is our principle!
If you have any specific requirement, pleaseClick below buttons for more information!
