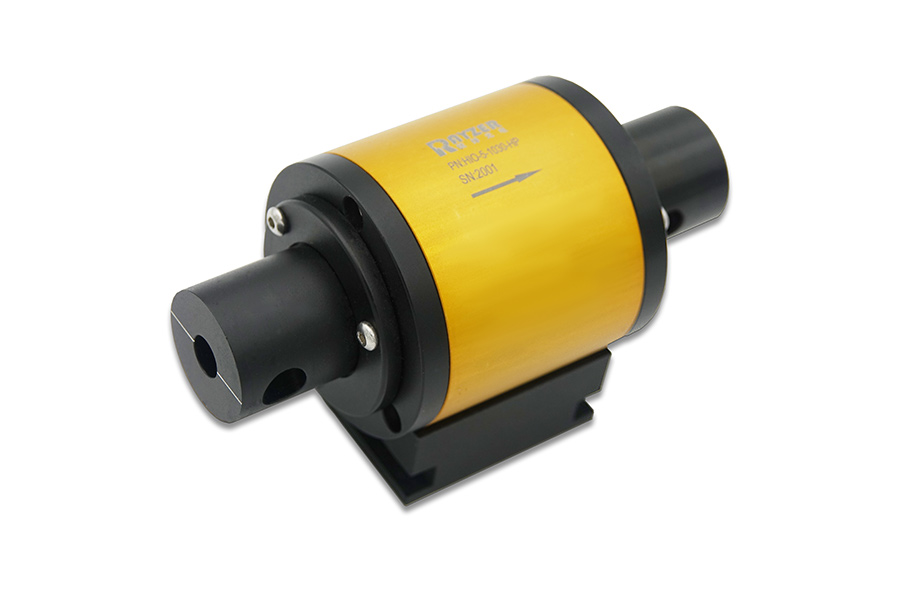

CSRayzer-Free Space High Power Faraday Isolator HIO 7mm 1064nm Fiber Laser Component

FOB Price:	1.00 - 1600.00 USD/Piece
Supply Ability:	10,000 Piece(s) per Year
Shipping:	By Air Courier from Wuha, China
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China

Quick Details

Brand Name: CSRAYZER
Wavelength: 1064nm
Data Rate: N/A
warranty: 1 Year
Connector: FC/APC
Model Number: -
Company: Rayzer Optical Technology Co.,Ltd

Specifications

Introduction

CSRayzer'sHigh PowerFreeSpaceISolator(HIO) series product, which also namedFAradayISolator, is used for avoiding deleterious effects of back reflections in laser. these Isolator has the high damage threshold and high transmission and high isolation in customized 780-1100nm wavelength range. It is ideal for ultra-fast fiber laser, solid-state laser, multi-level laser amplifier, Optical parametric oscillator Ring laser, Erbium-doped fiber amplifier, or seed injecting laser and etc.

Specification

Parameters	Unit	Values
Center Wavelength	nm	780/808/850/920/1030/1064
Operating Wavelength Range	nm	±20
Clear Aperture	mm	1.2/2.5/3/5/6/7/10/12/15/20/25/45
Extinction	dB	≥30
Isolation	dB	≥30
Transmission	%	≥98%
Handing Power	W	5/10/20/50/100/Specify
Damage threshold	J/cm2	10@10ns
Working Temperature	℃	0 to 60
Storage Temperature	℃	-20 to 70

Ordering Information

HIO---

Clear Aperture	Central Wavelength	Handing Power
2.5-2.5mm	780-780nm	HP-High Power
3-3mm	920-920nm	LP-Lower Power
5-5mm	1064-1064nm
S-Specify	S-Specify

RayzerFree Space High Power Faraday Isolator HIO 7mm 1064nm Fiber Laser Component

Mention!!!

Rayzer's product portfolio includes various kinds of:

SuperMini Optical Passive Components
Single Mode Optic Components
Polarization Maintaining Optical Components
Fiber GYRO Coil and coil winding machine
High power optic components
Free Space Faraday Isolator and Faraday Rotator

Acousto-Optic Modulator (AOM)

Mini Hybrid packaged components
Special Designed Optical passive modules
All products could be customized!

Applications are for Fiber Laser, Fiber Sensor, Fiber LIDAR system and solutions.

Best price, best quality, and best service, is our principle!
If you have any specific requirement, pleaseClick below buttons for more information!
