Gantry Steel Cutting Machine China CNC Plasma Cutter Price for Sale

FOB Price:	10000.00 - 15000.00 USD/Set
Supply Ability:	500 Set(s) per Year
Shipping:	By sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Wooden Package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Brand Name: Pioneer
Condition: New
Weight: 1.5T
Dimension(L*W*H): 4000x10000x1800mm
Rated Power: 30kw
Voltage: 220v/380v
Model Number: PM
plasma power source: Hypertherm
Control system: F2300B
Height controller: HYD
Nesting software: FastCam
Servo motor: Panosonic
Effective cutting width: 4000mm
Effective cutting length: 10000mm
Plasma cutting thickness: 50mm
Plasma cutting speed: 3500mm/min
Oxygen gas cutting thickness: 200mm

Specifications

Gantry Steel Cutting Machine China CNC Plasma Cutter Price for Sale
plasma cutting machine
CNC Plasma Cutter Description

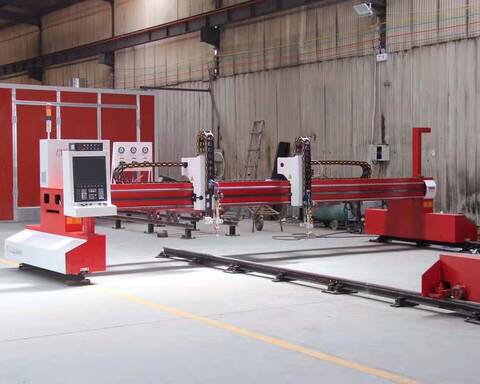

Gantry Type PM Series are heavy-duty, precision machines, specially designed for cutting large steel plates, can be equipped with multiple plasma torches and flame torches. It is very efficient, with excellent cutting quality.

Application

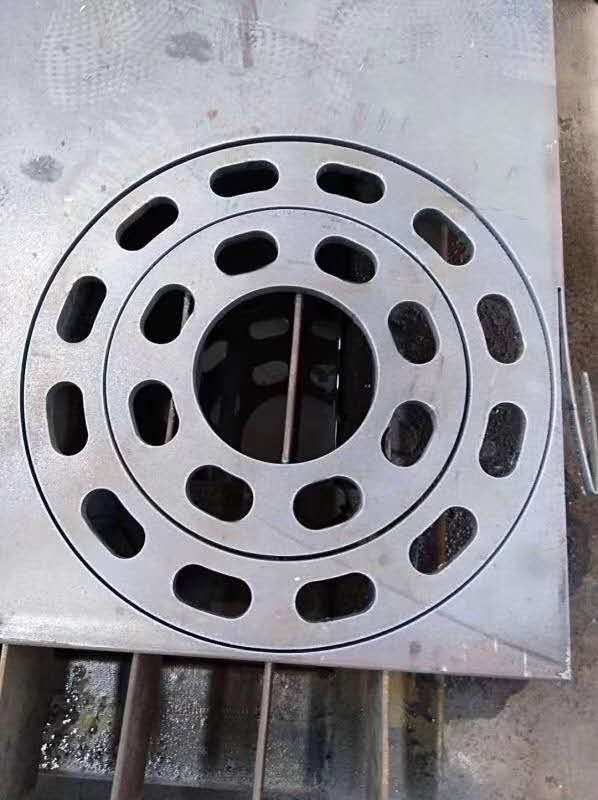

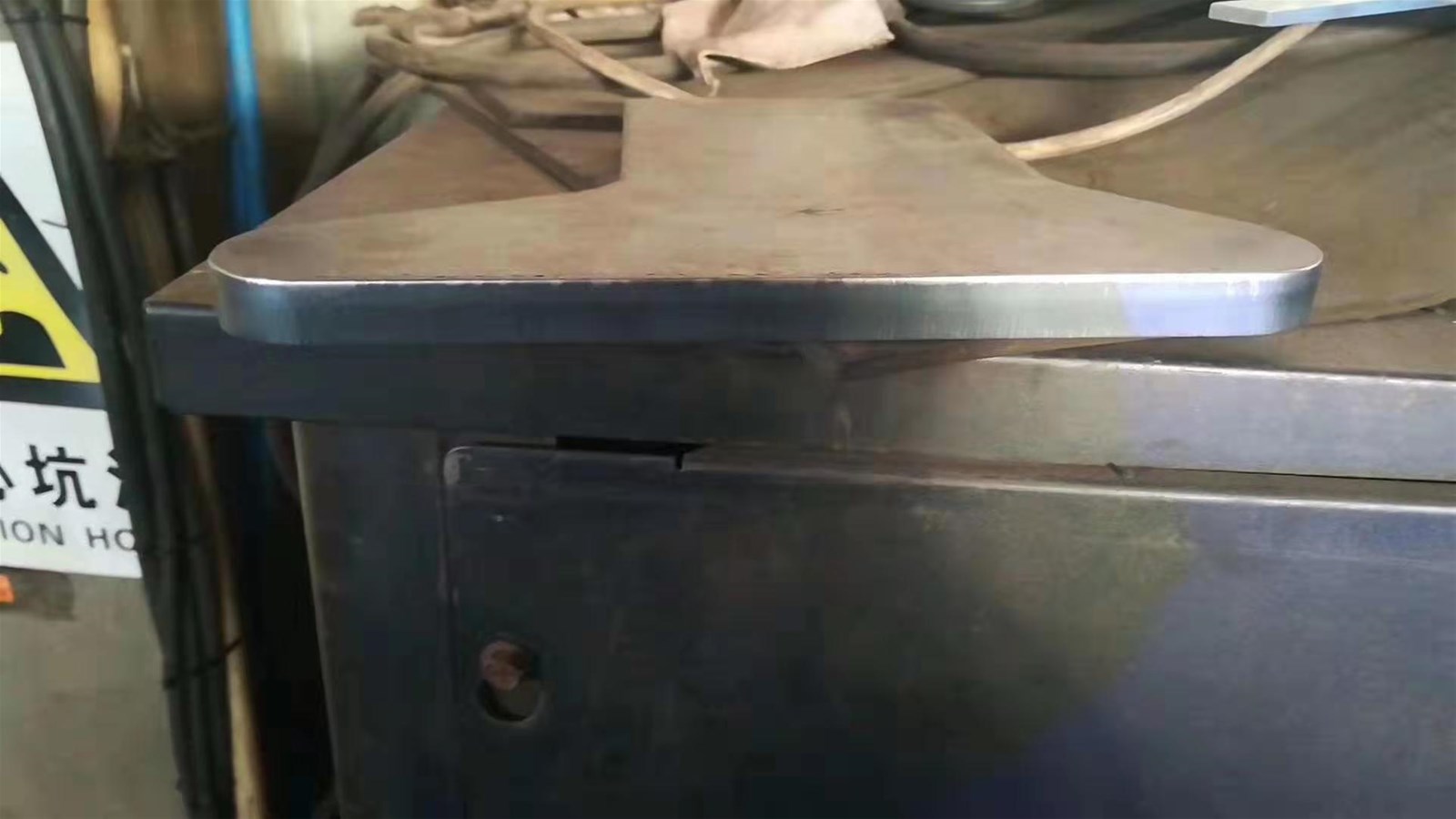

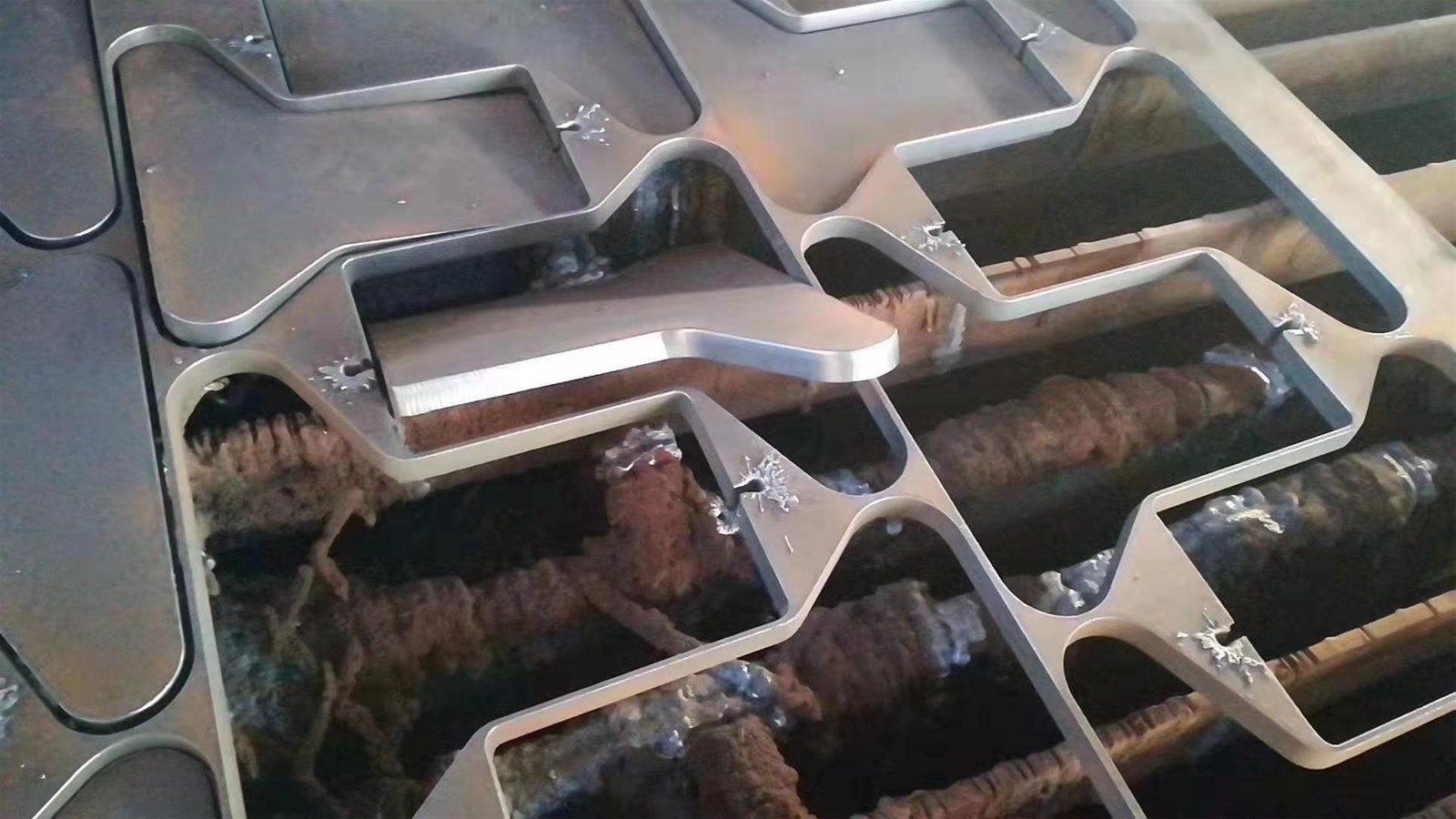

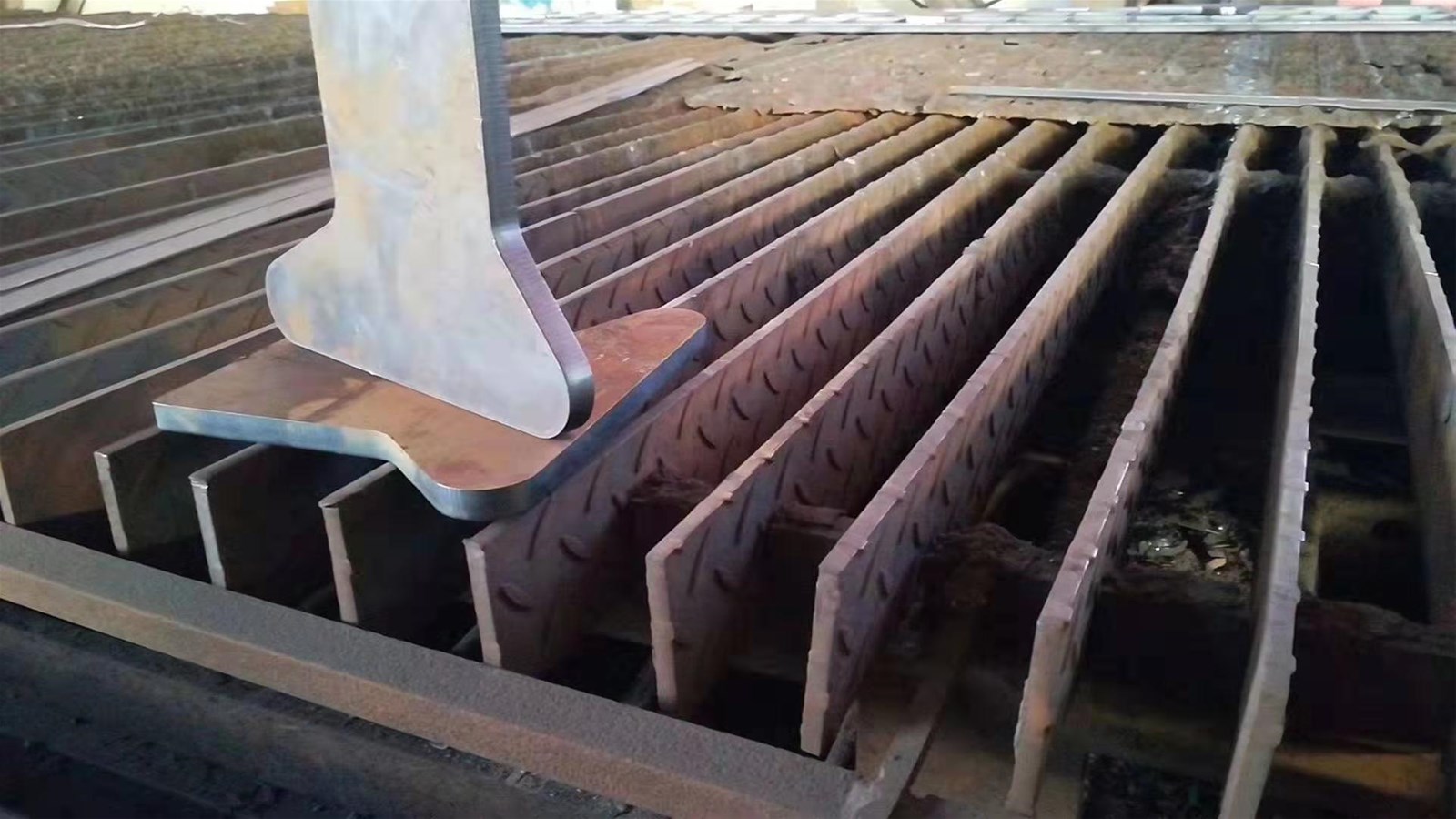

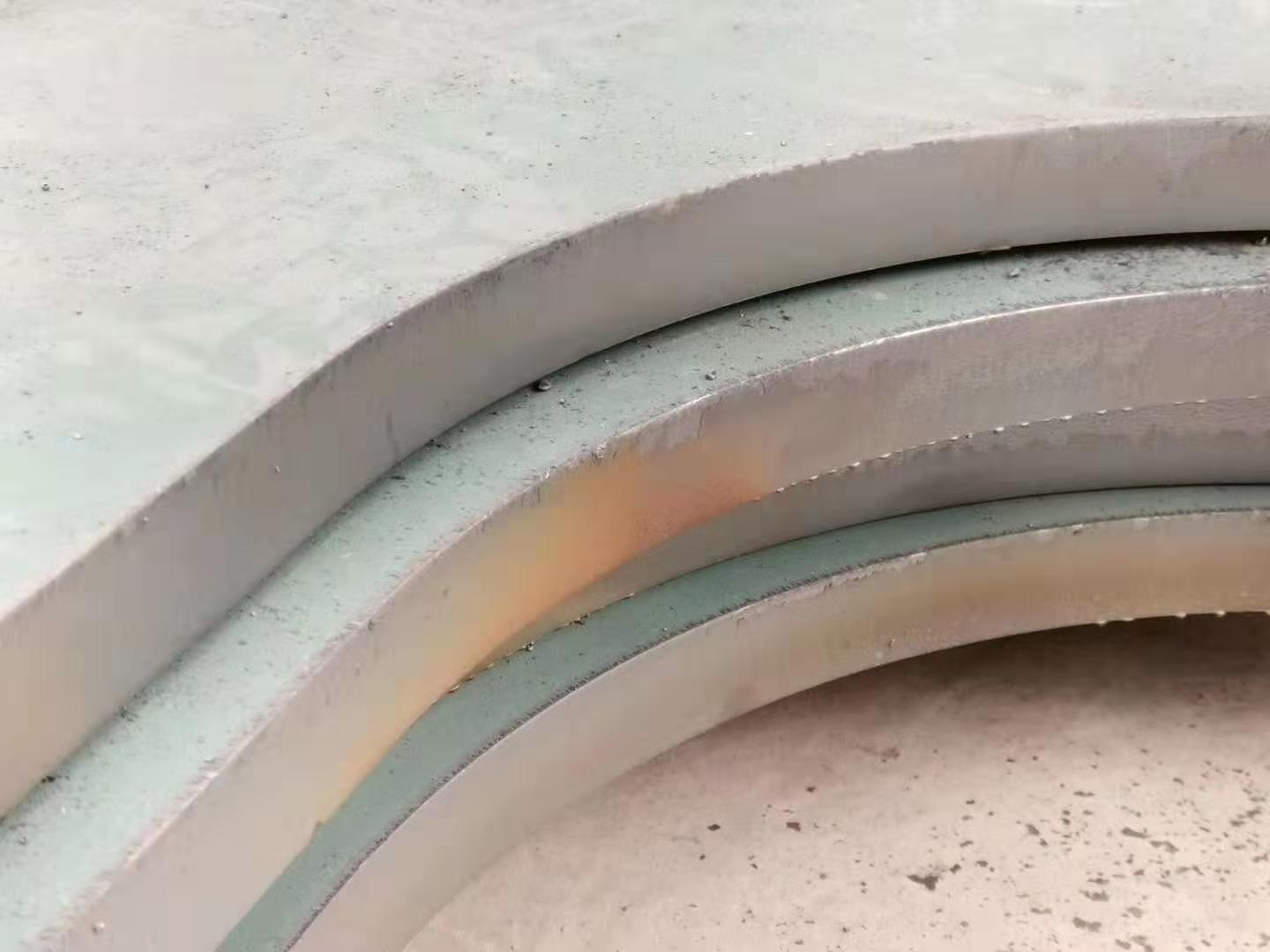

It can be widely used in automobiles, shipbuilding, petrochemical, boiler and pressure vessels, construction machinery, light industry machinery, and other industries. Apply to carbon steel (flame cutting), stainless steel, aluminum, copper (plasma) and other metal sheet cutting and cutting. Particularly suitable for profiled surface Single and batch production.

Machine Features
1  Gantry and box type welded structure, annealed, long service life, steady and durable under heavy load and high duty cycle condition.
2  Gapless gearing transmit, stable and smooth running at high speed so that we can achieve excellent cutting quality.
3  Integrated auto-ignition with automatic height controller, keep the proper height between cutting torch and workpiece so that we can achieve the best cutting quality.
4  Able to cut workpiece with several torches at the same time, can improve cutting efficiency
5  Low use and maintenance cost, dispensing special maintenance, friendly operator interface, easy to learn
6  Reliable, safe CNC system, automatic programming, optimization nesting, and piercing path, so that we can save steel effectively

Technical Parameters

Effective cutting length	8000mm(can be customized)
Effective cutting width	3150mm(can be customized)
Machine length	10000mm
Machine width	4000mm
Plasma power source	Hypertherm
Control system	Hypertherm EDGE Connect
Plasma cutting thickness	0.5-50mm depends on the plasma power source
Plasma cutting speed	500-3500mm/min
Oxygen gas cutting thickness	6-200mm
Oxygen gas cutting speed	10-1000mm/min
Cutting gas	Oxygen, acetylene or propane
Accuracy	±0.5mm
Servo motor	Panasonic
Electrical components	Schneider
Gas torch	Longteng
Height controller	HYD
Voltage	380v/220v, 50HZ

about Jinan Pioneer CNC Technology Co., Ltd
Jinan Pioneer CNC Technology Co., Ltd has over 20 years' experience in cutting&welding systems.
Main Products Range
Laser cutting system;
Laser welding machine;
Plasma cutting system;
Flame cutting system;
Robotic cutting system;
High-pressure water jet cutting system;
Pipe profile cutting system;
Section steel cutting system;
3D and 2D metal sheet and tube cutting solutions;
Hydraulic press brake;
CNC grooving machine;
CNC Shearing machine;
Welding roller;
Welding manipulator;
Welding robots;
Welding positioner;
Contact Us Directly
Jinan Pioneer CNC Technology Co., Ltd
Related Machines
Laser cutting machine

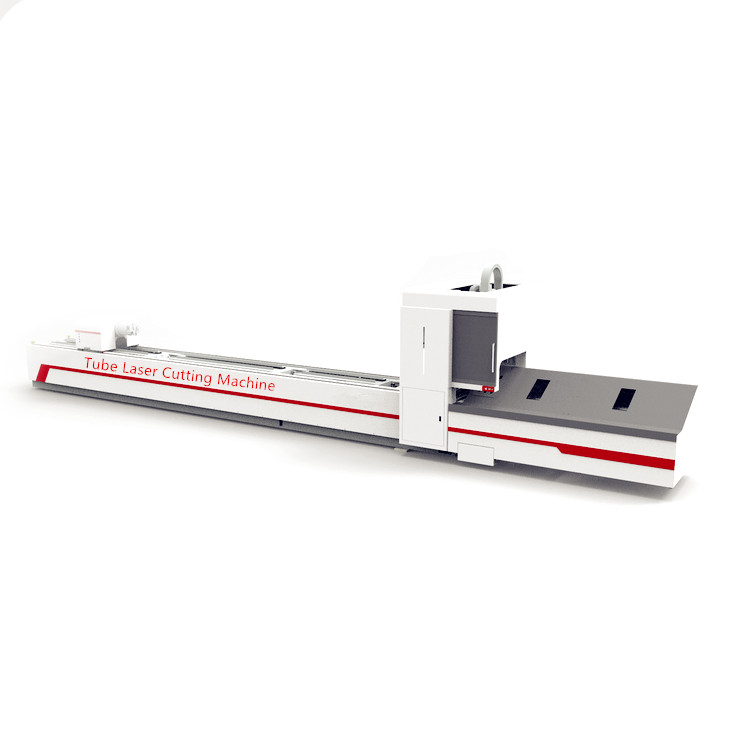

Laser tube cutting machine
