Heavy Duty Double Sides Polishing Sander Machine

FOB Price: 11000.00 - 23000.00 USD/Set
Supply Ability: 500 Set(s) per Year
Shipping: Qingdao port
Payment Terms: L/C, D/A, D/P, T/T, Western Union
In Stock

Related products from verified members

Export Markets: Africa
Place of Origin: Shandong in China
Packaging Details: CONTAINER

Quick Details

  • After-sales Service Provided: No overseas service provided
  • Brand Name: Heavy Duty Double Sides Polishing Sander Machine
  • Condition: New
  • Certification: ISO
  • Voltage: 380
  • Model Number: SR13D
  • Weight: 8000kg
  • Color: Silver gray
  • Working Width: 100-1300mm


the following example is for you reference.

1.Brief Introduction:

  It refers to a method to make some materials and objects that are not smooth, uneven in thickness and in conformity with the process requirements more smooth, uniform in thickness and up to the standard by means of physical removal of abrasive cloth, grinding wheel, sandpaper, parka cloth, non-woven polishing wheel, etc

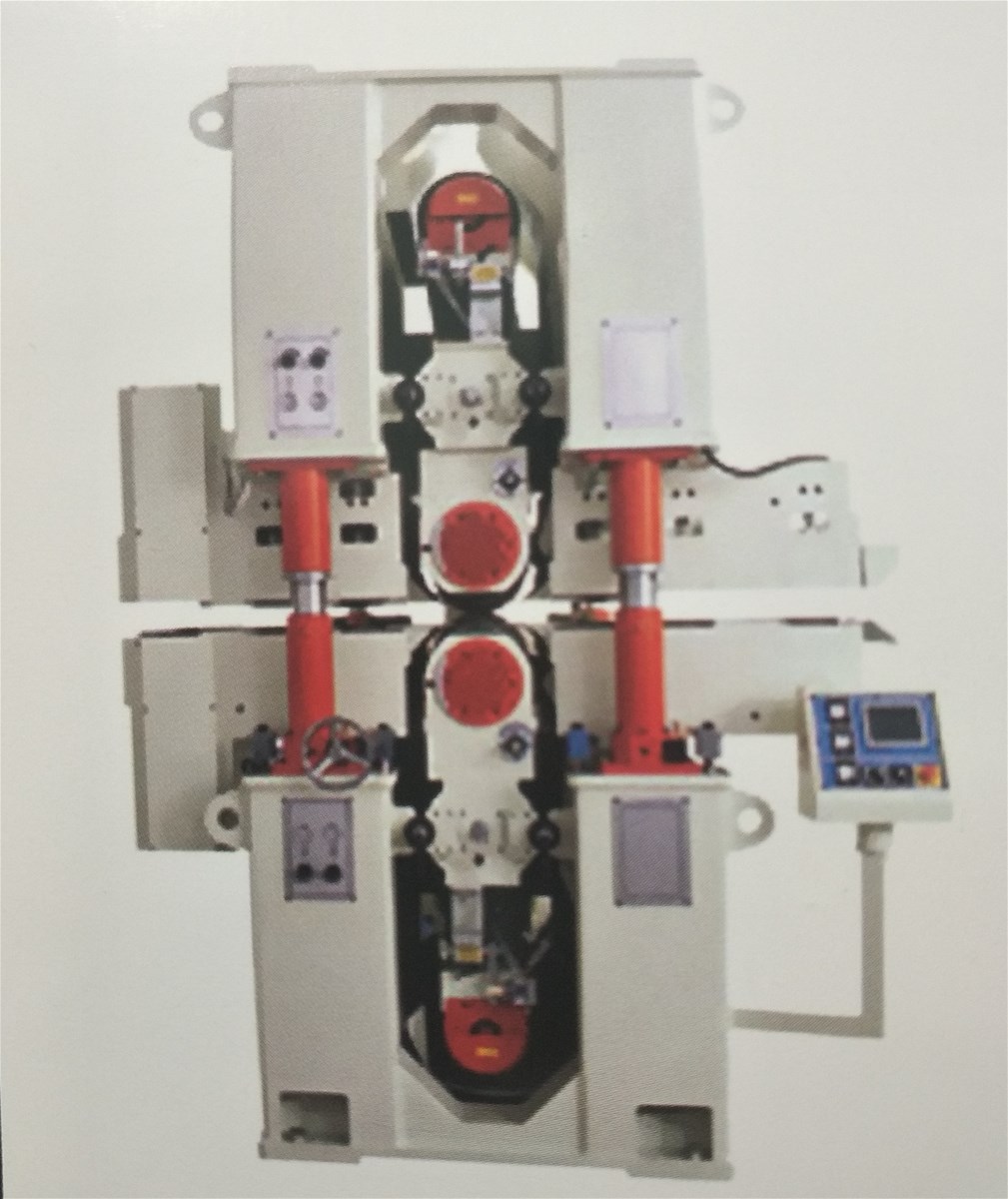

 Heavy Duty Double Sides Polishing Sander Machine

2.Techincal parameters:

Machine name Double sides calibrating sander machine
Machine model SR13D
Working thickness 3-90mm
Working length >700mm
Working width 100-1300mm
Abrasive belt speed 29m/s 25m/s
Size of abrasive belt (WxP) 1350x2800mm
Feed speed 6-30m/min
Main motor 75Kw x 2
Overall dimension(LxWxH) 2200x3360x2900mm
Motors Feed motor 11Kw

Lifter motor 1.5Kw
Compressed air Brush motor 0.75Kw x 2

Working air pressure 0.6Mpa
Exhaust air consumption Exhaust air consumption 24000m3/h

Pressure 1300pa

Air speed 25-30m/s

3.Performance features:
1.Incorporating advanced technology,using high quality imported parts and accessories and featuring stable performance,precision double-side processing with thickness tolerance of± 0.1mm.
2.the machine is structured by cold forming rectangle steel,noted for high rigidity,vibration damping and deformation free.
3.Easily operated inverter speed regulator for reliable meterial feeding.
4.Simplified operation of the computer terminal with the industrial-grade touch screen.

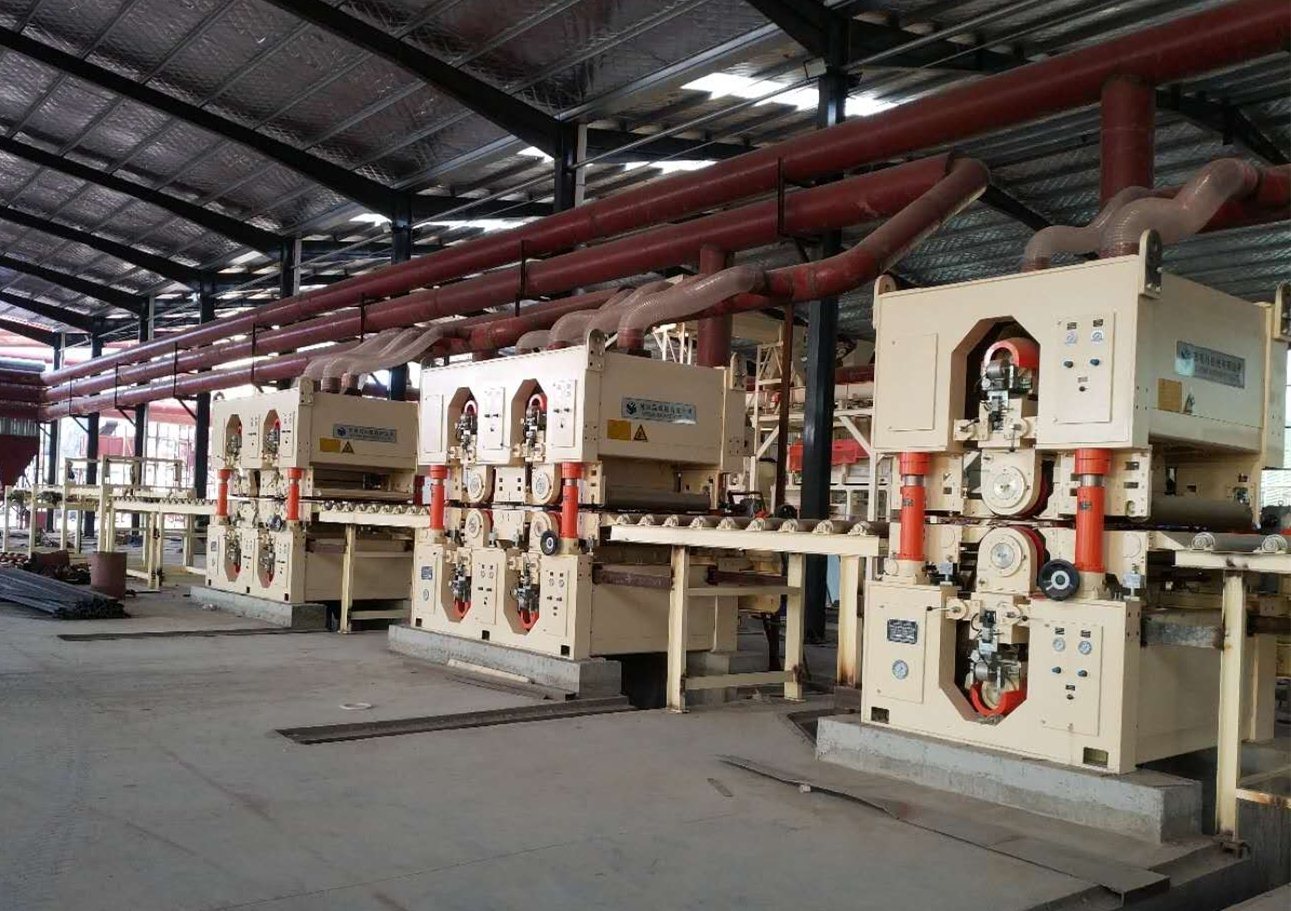

Heavy Duty Double Sides Polishing Sander Machine
