Techwin 1550nm Short-Pulse Fiber Laser for LiDAR & Telemetry & Range-Finding
| FOB Price: | 20000.00 - 40000.00 USD/Piece |
|---|---|
| Supply Ability: | 20 Piece(s) per Week |
| Shipping: | by air |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | standard package in box |
Quick Details
- Brand Name: techwin
- Frequency: /
- Frequency Range: /
- Polarization: /
- Weight: <300g
- Model Number: fiber laser CKLID-1550-SP
Specifications
Techwin 1550nm Short-PulseFiber Laserfor LiDAR and Telemetry and Range-finding
Techwin try to supplyFiber LaserSimilar to keopsys CVFA fiber amplifers, NKT Photonics X15 single-frequency fiber laser, NP Photonics the Rock fiber laser Module, BKtel Photonics 1.55um plused High power fiber laser
Techwin, always attend exhibitions, LASER-World of photonics exhibition in Germany, STOM LASER exhibition in Poland,Laser Korea exhibition
Techwin supplyFiber Laserfor LiDAR,Telemetry and Range-finding,3D Scanning and Imaging,Obstacle Detection,Tactical Robotics,UAV
We supplyFiber laserwith CE,ISO certification
as a manufacturer, techwin has more than 100 workers and engineers to supportFiber laser'sApplication.
Product Description:

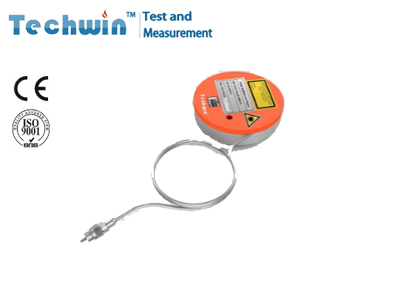

Techwin CKLID-1 series 1550nm band short nanosecond pulsed fiber lasers are designed for LiDAR
Applications, with high peak power, high pulse energy, ultra compact package, adjustable pulse
Repetition rate. CKLID-1 is based on MOPA structure, Telecom grade cooled DFB semiconductor is
Used as the seed laser, high speed and reliable electrical circuits generates sub-nanosecond short pulse,
Then a cascaded fiber amplifiers boost optical signal to high power output. Peak power can be up to
10kW, pulse energy can be more than 30uJ and average power can be more than 1W.
CKLID-1 is a ultra-compact pulsed fiber laser transmitter operating at eye-safe wavelength range, can
Be easily integrated into customers LiDAR systems.
Applications:
LiDAR
Telemetry and Range-finding
3D Scanning and Imaging
Obstacle Detection
Tactical Robotics
UAV
Features:
Eye-safe operating wavelength 1550nm
High peak power output up to 10kW
Pulse repetition rate 1kHz-1MHz
Pulse width 0.5-250ns
Single pulse energy up to 30uJ
Single mode output, AR-coated FC/APC connector or Collimator output
Robust suitable for harsh environment operation, extended temperature range -35 to +65 degree C.

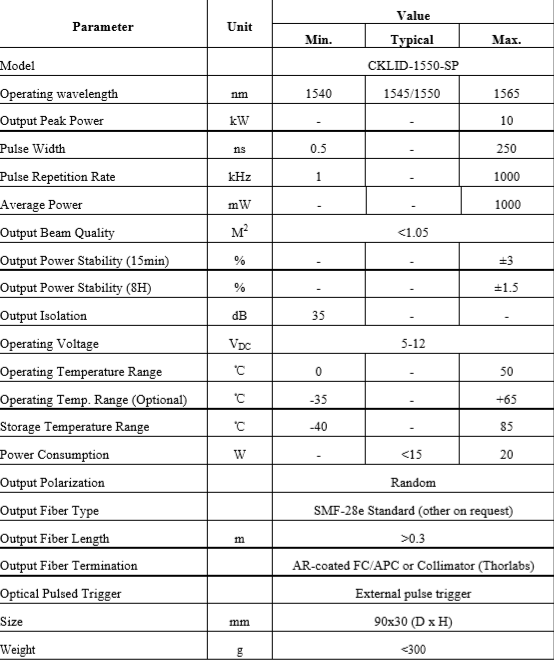

Specifications:
