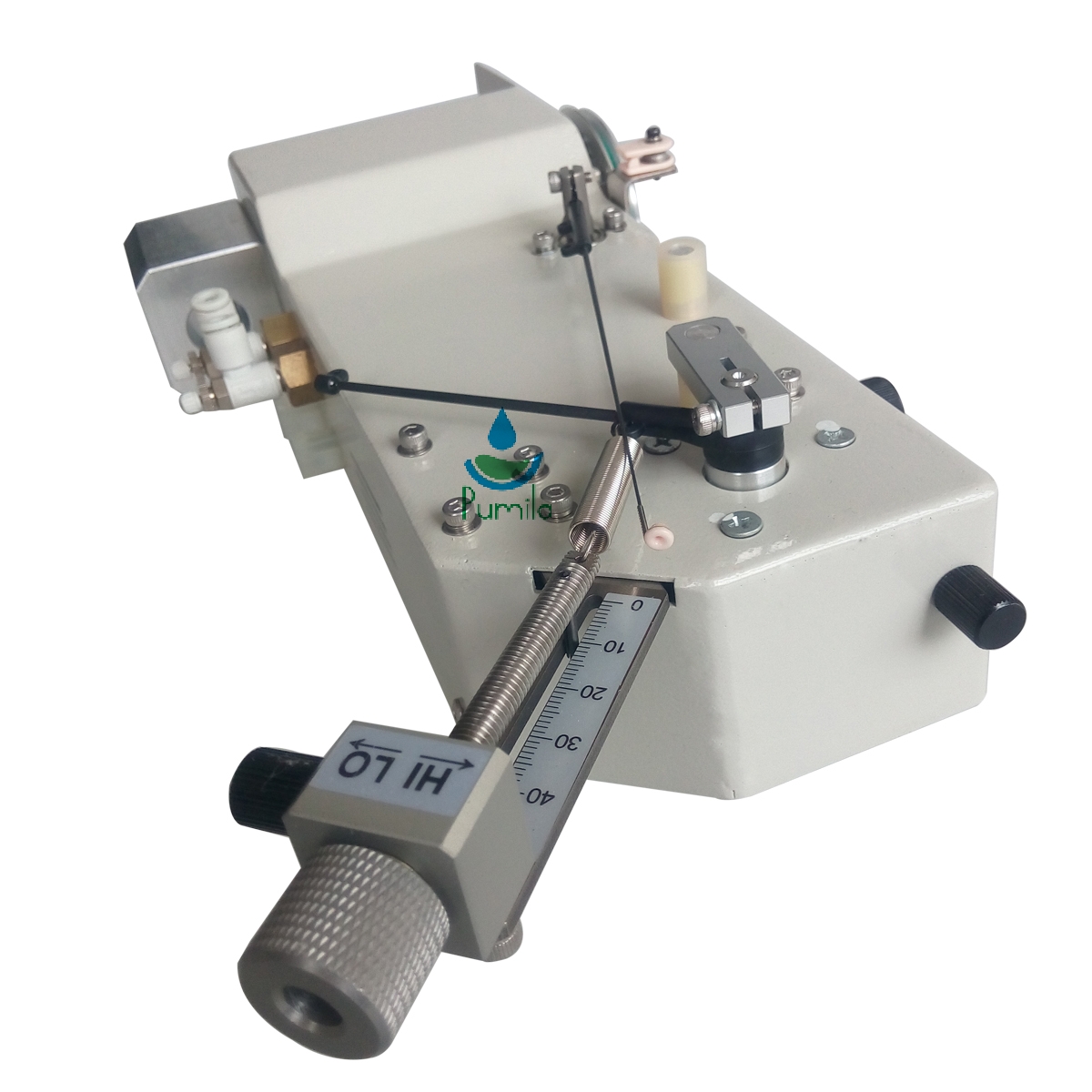

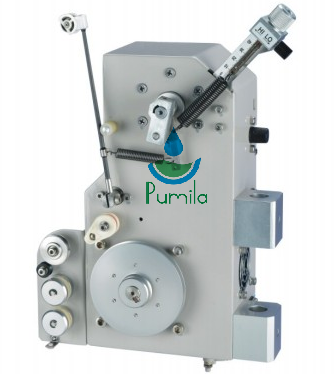

SET-R Coil Winding Tension Device Servo Copper Wire Tensioner for Coil Winding Machine
| FOB Price: | 561.00 - 783.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Month |
| Shipping: | Shenzhen |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Plastic tray with foam |
Quick Details
- Brand Name: Pumila
- Size: 300mm*215mm*115mm
- Type: Servo
- Material: Metal
- Color: Grey
- Model Number: SET-R
Specifications
| Model: | SET-R Series |
| Characteristic: | with Motor outside |
| Function: | Can change over two tension forces |
| Power: | DC24V |
| Electric Current: | 1.2A |
| Wire Speeding: | 5m/s |
| Product Size: | 300mm*215mm*115mm |
| Weight: | 5.40KG |
| Model | Applied wire diamiter(mm) | Tension scope(g.F) |
| SET-100-R | Φ0.01-φ0.12 | 1g-100 |
| SET-200-R | Φ0.02-φ0.17 | 2g-200 |
| SET-300-R | Φ0.03-φ0.22 | 5g-300 |
| SET-2000-R | Φ0.18-φ0.80 | 200g-2000 |
Product Description:
SET Standard Series Servo tensioner is sent from the traditional passive-line change to take the initiative to send lines from the motor, by replacing the spring tension to change its value, this product comes with tension feedback stabilization system that can automatically tension stable equilibrium. Tension is not speed, wire cover, pulleys, and felt the impact of tension in particular stable and easy to adjust.
the linear speed of standard type is 5m/s, and it can be customized that according to your special requirements.
