Shanghai Ncm Co., Ltd.
China Manufacturer with main products: Square Jack, Gooseneck Coupler, Hitch Ball/Towball, Ball Mounts, Weight Distribution Hitches, Adjustable Couplers, Pintle Hook/Eye, Topwind... |
Home
>Products Catalog > trailer/truck parts > 3500LB Electric Jack for Camper 25-1/8" Lift Round Base

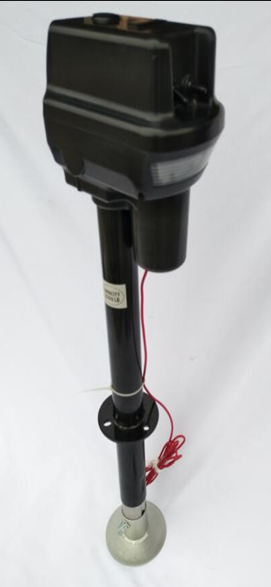

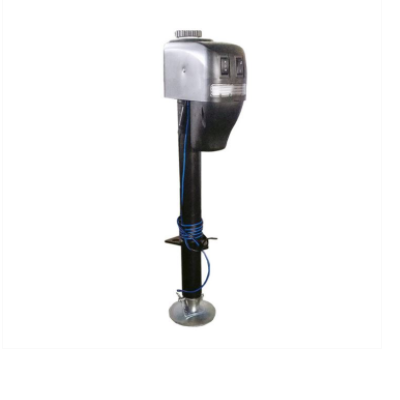

3500LB Electric Jack for Camper 25-1/8" Lift Round Base
| FOB Price: | 48.00 - 52.00 USD/Piece |
|---|---|
| Supply Ability: | 4,000 Piece(s) per Quarter |
| Shipping: | FOB or C&F |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe |
|---|---|
| Packaging Details: | CARTON & PALLET |
Quick Details
- Use: Trailer Parts
- Brand Name: NCM
- Max Payload: 3500lbs
- Parts: Trailer Suspension
- Use: use
- Color: Black
- Model Number: EJ-3550-B
- Size: 19-1/2"
- OEM No.: none
- finish: Black Powder Coating
Specifications
3500lbs Electric Jack with Drop Leg A Frame - 25-1/8" Lift Round Base-Black Powder Coating
Item No. EJ-3550-B
A-Frame Mounting Bracket
3,500 lbs
12V DC Electric Jack
25-1/8" Lift
Drop leg provide extra 5-5/8" Lift
Weld/Bolt-on
Electric and manual are optional
Caravan /Camper Jack

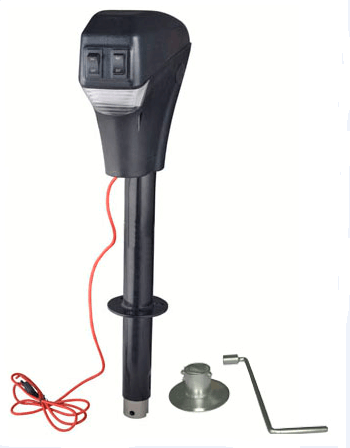

this 12DC Electric A frame mounting bracket & drop leg jack has 2 switches for operation. to rise up and down. Jack has a retracted mounting height of 9", an extended body height of 28-1/2", its screw provide 19-1/2" travel. Drop leg offers an extra 5-5/8" of lift. Includes a manual handle together.
Features:
Electric jacks can lift or lower your trailer
the purpose of the drop leg is to provide extra height easily in operation, no need to shake the handle to gain necessary height
Design 2 switches, one for lifting or lowering the height of the jack; the other controls LED lights
LED lights are designed to be used at night to increase brightness and point directly at the installation location.
Manual handle is mainly designed to replace the motor when no power.
Black powder coated outer tube & clear zinc inner tube and drop leg;
Wires to 12-volt power source
Serrated washer included for ground connection
Specs:
Mounting Bracket Height:
oRetracted: 9"
oExtended: 28-1/2"
Total lift: 25-1/8"
oScrew travel: 19-1/2"
oDrop leg travel: 5-5/8"
Outer tube dia.: 2-1/4"
Inner tube dia.: 2"
the distance between the two holes in drop leg: 1-7/8"
Foot Size: 5-1/2" (Round)
Lift capacity: 3,500 lbs
