Jinan Pioneer CNC Technology Co., Ltd.
China Manufacturer with main products: Laser Cutting Machine, Plasma Cutting Machine, Laser Welding Machine, Welding Rollers, Welding Manipulator, Welding Robot, Hydraulic Press... |
3000w Sheet Steel CNC Laser Cutting Machine Price
| FOB Price: | 85000.00 - 95000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set(s) per Month |
| Shipping: | By sea |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard wooden package |
Quick Details
- Application: Laser Cutting
- Certification: CE,ISO,SGS
- Brand Name: PIONEER
- Graphic Format Supported: DWG,DXF
- Applicable Material: Metal
- Laser Type: Fiber Laser
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: PF-3015D
- Control Software: CypCut
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Cutting Speed: 30m/min
- Cutting Area: 1500mmx3000mm
- Cutting Thickness: 20mm
- Condition: New
- Laser source: Raycus
- Laser head: Raytools
- Motor: Yaskawa
- Positioning accuracy: 0.03mm/1000
- Laser cutting speed: 30m/min
- Acceleration: 2G
Specifications

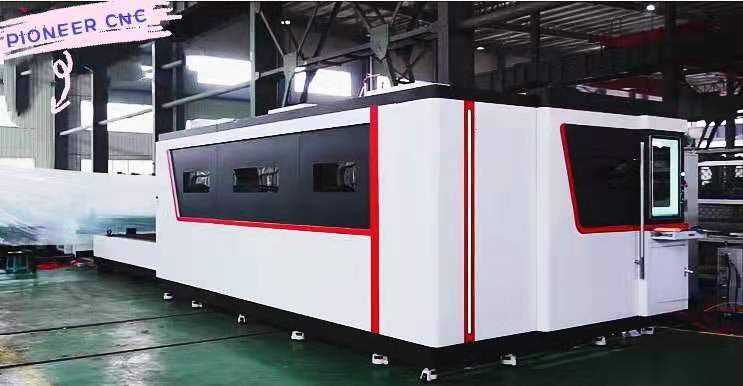

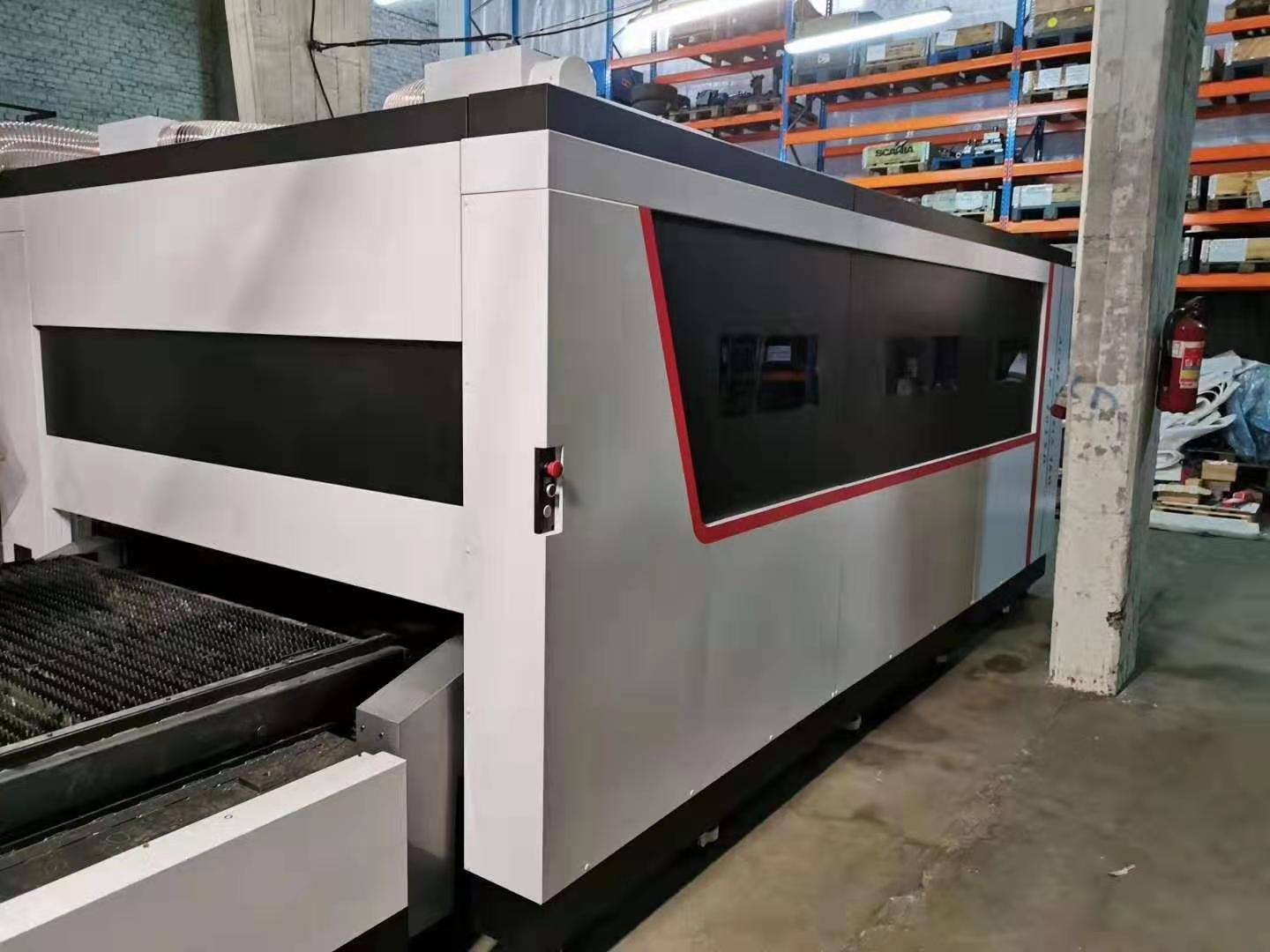

The series of pioneer PF-3025D laser cutting machine offers power ranges between 1000W to 10000W. One of the most efficient machine technologies for rapid sheet metal cutting which can cut the thickness for 50mm or less.
1. Saving Material ---- CNC control, it can cut the material in different shapes, improve the utilization rate and reduce waste.
2.Easy Programme ----high accuracy, cut to shape without molding, smooth finish, eliminating the process for edge modification.
3. Save Investment for Molding ---- Laser cutting without molding, eliminating the cost for molding and repair, save time, resulting in less manufacturing cost, reduce the cost of goods sold, particularly suitable for processing parts in large-size.
4. Protecting Environment ---- working area for laser cutting is fully enclosed, low noise, is clean, safe, free of pollution, totally improve the working condition and environment.
Application Materials
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries
Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Main Configuration
| Laser power source | IPG/Raycus(2000w-10000w) |
| Laser head | Swiss Raytools/Germany Precitec |
| Servo motor | Japan Yaskawa |
| Reducer | Shimpo |
| Linear slider | Rexroth |
| Gear&Rack | YYC |
| Control system | CypCut |
| Machine bed | Heavy-duty plate steel welded machine bed |
| Gantry beam | Cast aluminum gantry structure |
| Water chiller | Tongfei |
| Electrical components | Schnider |
Technical Parameter
| laser power source range | 2000w-10000w |
| effective cutting area for plate steel | 3000mmx1500mm(can be customized) |
| tube cutting length | 6000mm(can be customized) |
| Acceleration speed | 2G |
| Positioning accuracy | ±0.03mm |
| Repeating positioning accuracy | ±0.015mm |
| Maximum moving speed | 100m/min |
The features of a laser cutting machine
1. High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
2.Gantry double drive structure, with imported Germany rack & gear transmission system, which improves the production efficiency.
3. High-performance cast aluminum guide rail, after infinite analysis, which accelerates the circular arc cutting speed.
4.High precision, fast speed, narrow slit, minimum heat-affected zone, smooth cut surface, and no burr.
5. The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
6. The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
7. It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
8. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
