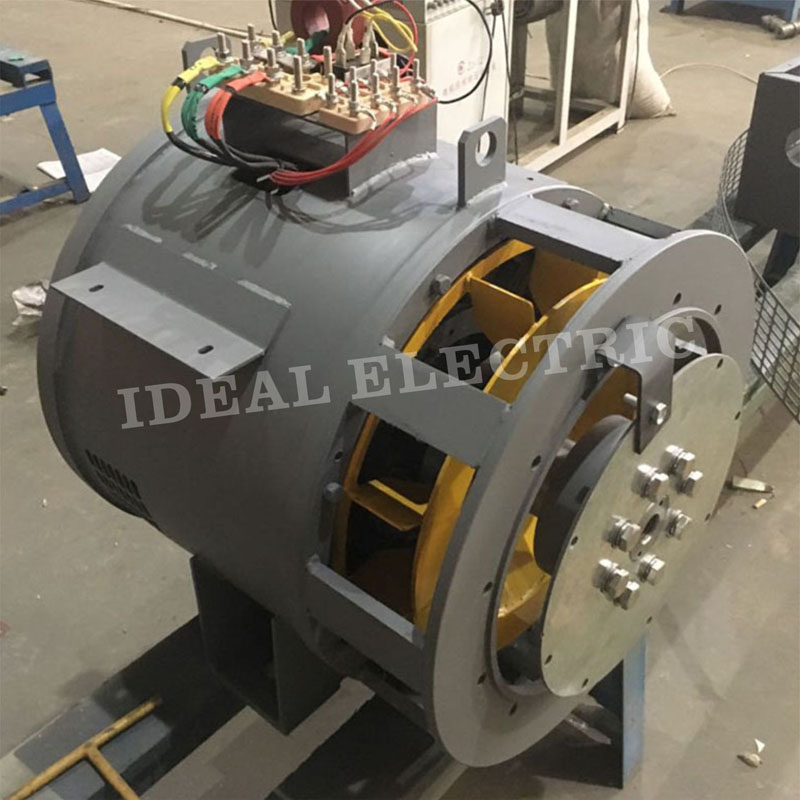

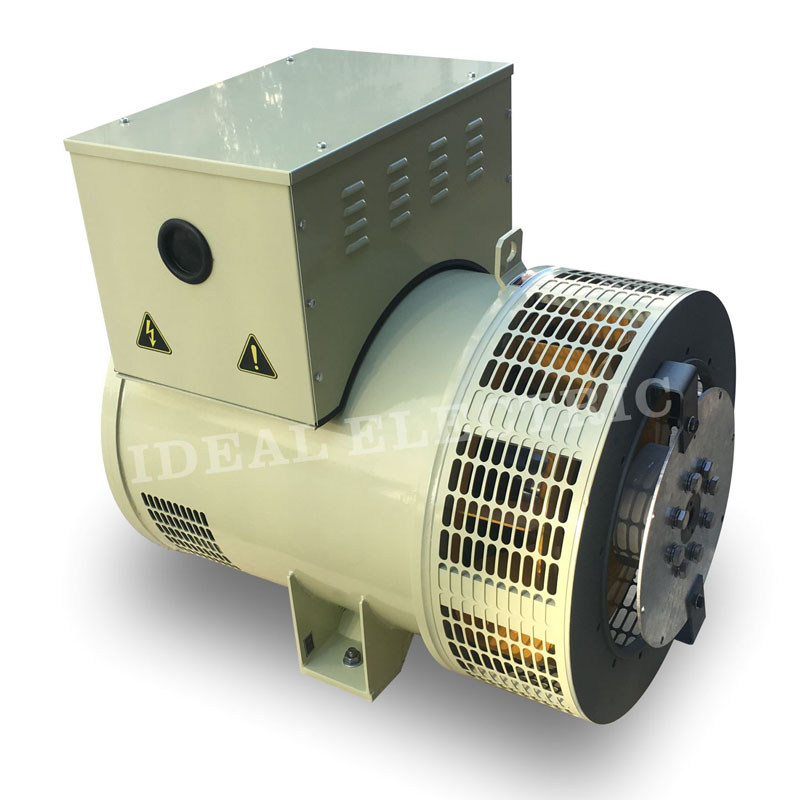

400Hz 26-Pole 1846rpm Brushless Generator (Alternator) 150kVA

FOB Price:	1000.00 - 5000.00 USD/Unit
Supply Ability:	10,000 Unit(s) per Month
Shipping:	By Sea
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	Wooden Case

Quick Details

Rated Power: 150kVA
Frequency: 400Hz
Speed: 1846rpm
Output Type: AC Three Phase
Brand Name: IDEAL
Rated Current: 416.4A
Rated Voltage: 3-Phase 200V 208V
Model Number: ADZ280M1-26
Pole Number: 26 poles
Insulation: H
Protection: IP23
THD: 1.5%
Crest Factor: 1.31-1.51
Steady Voltage Regulation: +/-1.0%
Duty: Continous
Power Factor: 0.8

Specifications

Brief Description

Product Name 400Hz brushless synchronous generator

Registered Brand: IDEAL ELECTRIC

Model No: ADZ280-26

Center Height 280mm

Rating Range: 90kVA 250kVA

Rated Speed: 1846RPM

Pole Count: 26 poles

Standard Warranty: 18 months

Standard Specifications

Model No.	ADZ280S1-26	ADZ280S2-26	ADZ280M1-26	ADZ280M2-26	ADZ280L1-26	ADZ280L2-26
Rated Power at Temp. Rise F (105C)	90kVA	120kVA	150kVA	180kVA	200kVA	250kVA
Power Factor	0.8 (lag)
Insulation	H
Protection	IP23
Rated Speed	1846RPM
Overspeed	1.5 times rated speed
Pole Count	26 poles
Rated Voltage	3-phase 200/208V (line to line)
Rated Current (at 3p208V)	249.8A	333.1A	416.4A	499.6A	555.2A	694.0A
Phase Connection	WYE with neutral
Stator Winding	12 leads
Coupling Structure	Single bearing with SAE flange & SAE flexible plates
Overload Capacity	110% rated load for 1 hour continuously in every 6 hours
Short Circuit	> 300% rated current
Exciation at No Load	≤ 2A, 50VDC
Excitation at Full Load	≤ 5A, 90VDC
Harmonic Distortion	THD ≤1.5%, individual harmonic ≤1.2%
Steady Voltage Regulation	Within ±1.0%
Transient Voltage Regulation	Within ±12%
Voltage Recovery Time	≤ 0.1s
Rotor Balancing Quality	G1.0 grade as per ISO1940-1
Dielectric Strength	2000V/2mins for stator, 1500V/2mins for rotor & exciter
Ambient Conditions	Altitude 1000m, temperature 40C, related humidity 95%
Standard Compliance	IEC60034-1, MIL-STD-704F

Optional Configurations

Vertical mounted generators
Tropic type generators (ambient temperature 55 C, related humidity 100% with no condensation)
IP44/IP54 protection
Extented 5- or 10-years warranty period

General Introduction

the ADZ280-26 series 400Hz generators are specially designed for aviation applications. the products range from 90kVA to 250kVA, with the 26 poles and 1846rpm operation speed.

All products have been designed in strict accordance with IEC60034, ISO8528, MIL-STD-704F & China military standards GJB1213-91, as well as other international and domestic standards. Due to the optimized designs and the strict quality control, the products have the first-rank performance and best reliability, suitable for both linear loads and non-linear loads.

Comparing to other existing products in the industry, the ADZ280-26 generators have the distinct technical advantages in the following aspects:

1) the products have the minimum frame no., dimensions and weight among the same rating products in the industry.

2) the products have the best voltage waveform with the minimum harmonic distortion; therefore they provide the clean 400Hz power supply to the load to ensure the best operation status.

3) the products have the best performance in both steady state and transient state, which makes them the ideal power supply for all dynamic loads and non-linear loads.

4) the products have the minimum full load temperature rise, which ensures them high operation reliability and long service life.

Outline Dimensions

400Hz 26Pole 1846rpm Brushless Generator Alternator 150kVA

Outline Dimensions (mm)

Model No.	A	AB	C	CG	H	HD	L
ADZ280S1-26	430	520	350	331	280	750	700
ADZ280S2-26			350	341			700
ADZ280M1-26			370	356			750
ADZ280M2-26			370	371			750
ADZ280L1-26			410	391			800
ADZ280L2-26			410	406			800
