Fujian Ideal Electric Co., Ltd.
China Manufacturer with main products: 50Hz Generator, 60Hz Generator, 400Hz Generator, Motor Generator Set, Rotary Frequency Converter, Ground Power Unit, Diesel Generator Set,... |
Home
>Products Catalog > Motor Generator Set (RFC) > 60Hz to 50Hz Motor Generator Set (Rotary Frequency Converter) 90kVA

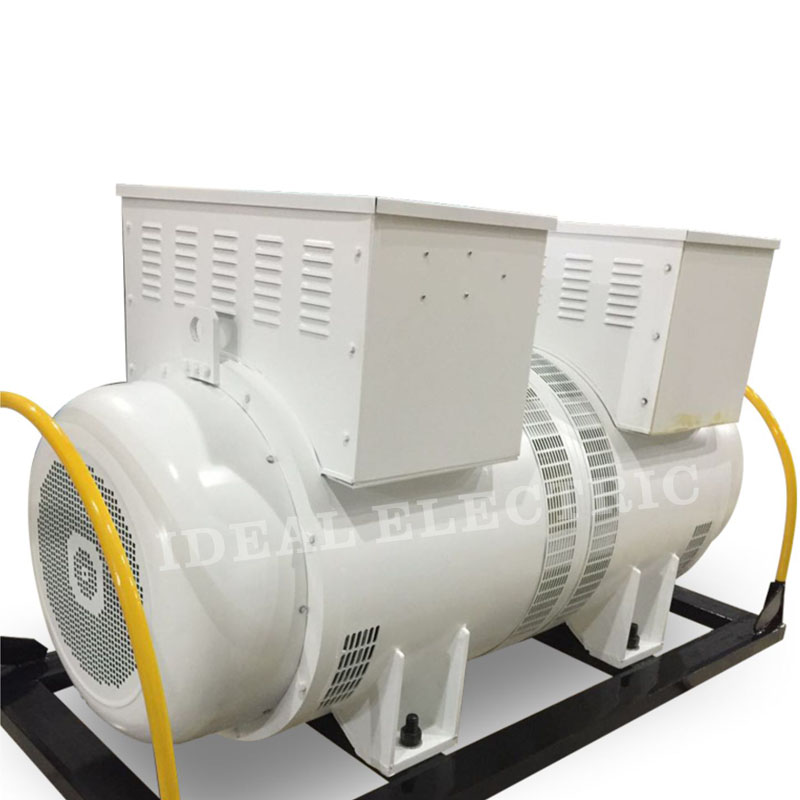

60Hz to 50Hz Motor Generator Set (Rotary Frequency Converter) 90kVA
| FOB Price: | 1000.00 - 5000.00 USD/Unit |
|---|---|
| Supply Ability: | 10,000 Unit(s) per Month |
| Shipping: | By Sea |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Wooden Case |
Quick Details
- Type: 60Hz to 50Hz Converters
- Output Voltage: 50Hz 3-Phase 400V
- Input Voltage: 60Hz 3-Phase 220/440/480V
- Output Type: Single
- Brand Name: IDEAL
- Output Current: 129.9A
- Output Frequency: 50Hz
- Model Number: ADBF50T12-90
- Input Frequency: 60Hz
- Pole of Motor: 12 poles
- Pole of Generator: 10 poles
- Mounting Structure: Common-shaft mounting
- Steady Frequency Regulation: +/-0.5% from no load to full load
- Duty: Continuous
- Rated Speed: Precise 600rpm
- Insulation: H
- Protection: IP23
- Type of Motor: Brushless Synchronous Motor
Specifications
Description
Product Name: Motor Generator Set (Rotary Frequency Converter) 50Hz to 60Hz Synchronous Type
Model No. ADBF50T12
Motor Type: Brushless Synchronous Motor
Input Frequency: 60Hz
Output Frequency: 50Hz
Rated Speed: Precise 600rpm
Rating Range: 90-250kVA
General Introduction
the ADBF50T12 series Motor Generator Sets consist of a 12-pole brushless synchronous motor and a 10-pole synchronous generator. the motor and the generator are mounted on the common shaft (integrative mounting) and operate at the speed of PRECISE 600rpm. the products are designed for the applications which require a clean & accurate 50Hz power output converting from the 60Hz grid line.
the ADBF50T12 Motor Generator Sets are rated for continuous duty. They have prominent technical advantages on precise frequency output, low operation noise, reliable excitation, precise voltage regulation, outstanding voltage waveform, compact size, easy operation and no radio interference. They also have the high overload capability, best transient characteristics and rugged fabrication, which make them suitable for the applications where continuous service in a harsh environment is required.
as an option, ADBF50T12 series Motor Generator Sets can be mounted with a weather-proof enclosure, an acoustic-attenuated canopy or a trailer.
Technical Data
MG Set Parameters | |||||
| Model No. | ADBF50T12-90 | ADBF50T12-125 | ADBF50T12-165 | ADBF50T12-200 | ADBF50T12-250 |
| Rated Power |
90kVA / 72kW | 125kVA / 100kW | 165kVA / 132kW | 200kVA / 160kW | 250kVA / 200kW |
| Power Factor |
0.8 (lag) | ||||
| Duty Cycle |
S1 (continuous) | ||||
| Insulation |
Class H | ||||
| Protection | IP23 | ||||
| Mounting Structure |
the motor and the alternator are mounted on the single common shaft (integrated mounting). | ||||
| Overload Capacity |
110% rated load for 1 hour continuous in every 12 hours. | ||||
| Temperature Rise |
No more than 90°C Rise in ambience 40°C measured by resistance | ||||
| Ventilation |
Shaft-mounted fan | ||||
| Rotor Balancing |
G1.0 Grade as per ISO1940-1 | ||||
| Ambient Temperature | -15°C to +40°C maximum without de-rating | ||||
| Altitude |
1000m | ||||
| Relative Humidity | 95% with no condensation | ||||
| Compliance |
IEC60034, NEMA MG1 & China National Standards | ||||
Generator Parameters | |||||
| Rated Frequency |
50Hz | ||||
| Pole Count |
10 poles | ||||
| Rated Speed |
600rpm | ||||
| Rated Voltage | 3-phase 400/230V (line to line) | ||||
| Winding Connection |
Wye with neutral | ||||
| Rated Current |
129.9A | 180.4A | 238.2A | 288.7A | 360.9A |
| Excitation Mode | Automatic self excitation with AVR control | ||||
| Steady Voltage Regulation | Within ±1% (0 to 100% steady state, balanced, linear load) | ||||
| Transient Voltage Regulation | Within ±12% (0 to 100% rated load applied or removed in one single step) | ||||
| Voltage Recovery Time | ≤ 0.1s | ||||
| Harmonic Distortion | THD ≤ 2.5%, single harmonic ≤ 2.0% | ||||
Motor Parameters | |||||
| Motor Type | Brushless Synchronous Motor | ||||
| Motor Power | 90kW | 120kW | 150kW | 180kW | 220kW |
| Rated Freqency | 50Hz | ||||
| Rated Speed | Precise 600rpm | ||||
| Pole Count | 10 poles | ||||
| Rated Voltage | 3-phase 220/440/460V (line to line) | ||||
| Rated Current (at 3p440V) | 138.1A | 184.2A | 230.2A | 276.3A | 337.6A |
| Winding Connection | WYE | ||||
| Power Factor | 0.95~1.0 | ||||
| Efficiency | ≥ 90% | ||||
| Excitation Control | Automatic excitation control | ||||
| Starting Mode | Reduced voltage starting or soft start | ||||
| Max. Starting Current |
≤ 1.5 times rated current | ||||
| Frequency Regulation | Within ±0.1% from no load to full load | ||||
Options
- WeathEr-proof / sound-proof enclosure
- Digital control panel
- Analog control panel
- Trailer / trolley
Typical Structure
Technical Features
