>Products Catalog > 50Hz/60Hz Generators > 60Hz Full-Copper Brushless Generator (Alternator) 30-75kVA

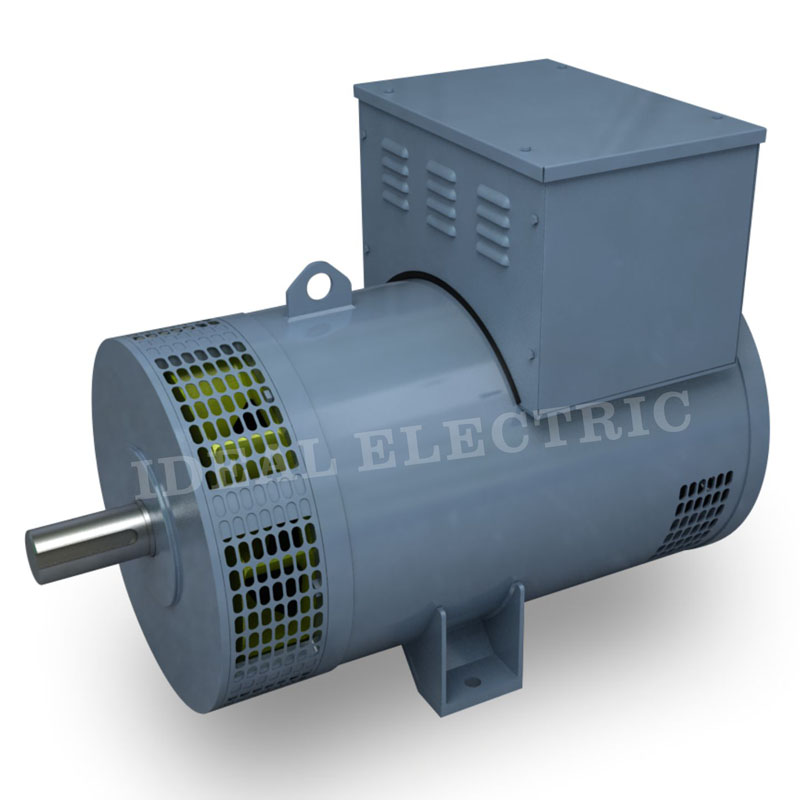

60Hz Full-Copper Brushless Generator (Alternator) 30-75kVA
| FOB Price: | 100.00 - 1000.00 USD/Unit |
|---|---|
| Supply Ability: | 10,000 Unit(s) per Month |
| Shipping: | By Sea |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | Wooden Case |
Quick Details
- Rated Power: 30-75kVA
- Frequency: 60Hz
- Speed: 1800rpm
- Output Type: AC Three Phase
- Brand Name: IDEAL
- Rated Voltage: 3-Phase 415/440/460/480V
- Model Number: ADG200-4
- Pole Number: 4 poles
- Insulation: H
- Protection: IP23
- Overspeed: 1.5 times rated speed
- Overload: 1-hour 10% continuous overload
- Total Harmonic Distortion: 1.5%
- Steady Voltage Regulation: +/-1.0%
- Duty: Continuous
- Excitation Mode: Brushless excitation with AVR control
- Wire Material: 100% copper
Specifications
Brief Description
Product Name 60Hz brushless synchronous generator
Registered Brand: IDEAL ELECTRIC
Model No: ADG200-4
Rating Range: 30kVA 90kVA
Rated Speed: 1800RPM
Pole Count: 4 poles
Standard Specifications
| Model No. |
ADG200S1-4 | ADG200S2-4 |
ADG200S3-4 | ADG200M1-4 | ADG200M2-4 | ADG200L1-4 |
Continuous Power at Temp. Rise F (105C) |
30kVA 24kW |
36kVA 28.8kW |
45kVA 36kW |
60kVA 48kW |
75kVA 60kW |
90kVA 72kW |
| Power Factor | 0.8 (lag) | |||||
| Rated Frequency | 60Hz | |||||
| Insulation |
H | |||||
| Protection | IP23 | |||||
| Rated Speed | 1800RPM | |||||
| Overspeed |
2250RPM | |||||
| Pole Count |
4 poles | |||||
| Rated Voltage |
3-phase 380/416/440/480V (line to line) | |||||
| Rated Current (at 3p440V) |
39.4A | 47.2A |
59.0A |
78.7A |
98.4A |
118.1A |
| Phase Connection |
WYE with neutral | |||||
| Stator Winding |
6/12 leads | |||||
| Coupling Structure |
Single bearing with SAE flange & flexible plates, or double bearing with shaft extension | |||||
| Overload Capacity |
110% rated load for 1 hour continuously in every 6 hours | |||||
| Short Circuit |
300% rated current | |||||
| Excitation Mode |
Brushless excitation, with AVR control & current compound excitation | |||||
| Exciation at No Load |
≤ 2A, 50VDC | |||||
| Excitation at Full Load |
≤ 5A, 90VDC | |||||
| Harmonic Distortion |
THD ≤ 1.8%, individual harmonic ≤1.2% | |||||
| Steady Voltage Regulation |
Within ±1.0% (from no load to full load) | |||||
| Transient Voltage Regulation | Within ±12% (0-100% load applied and removed in one step) | |||||
| Voltage Recovery Time |
≤ 0.1s | |||||
| Rotor Balancing Quality |
G2.5 grade as per ISO1940-1 | |||||
| Dielectric Strength |
2000V/2mins | |||||
| Ambient Conditions |
Altitude 1000m, temperature 40C, related humidity 95% | |||||
| Standard Compliance |
IEC60034-1 & China national standards | |||||
Optional Configurations
- VerticalMounting generator
- Tropic area type generators (Ambient temperature 60 C)
- Frigid area type generators (ambient temperature -40 C~+40 C)
- Hight altitude area type generators (altitude up to 4000m)
- IP44/IP54/IP65 protectioN level
General Introduction
the ADG200-4 series 50/60Hz generators are designed for general purpose applications. the products range from 25kVA to 75kVA, with 4 poles and 1500 / 1800rpm operation speed.
All products have been designed in strict accordance with IEC60034, ISO8528, NEMA MAG1 & China national standards. Due to the optimized designs and the strict quality control, the products have the world-class performance and best reliability, suitable for both linear loads and non-linear loads, as well as both static and dynamic loads.
Comparing to other existing products in the industry, the ADG200-4 generators have the distinct technical advantages in the following aspects:
1) the products have the minimum frame size., dimensions and weight among the same rating products in the industry.
2) the products have the best voltage waveform with the minimum harmonic distortion; therefore they provide the high quality 50/60Hz power supply to the load to ensure the best operation status.
3) the products have the best performance in both steady state and transient state, which makes them the ideal power supply for all kinds of dynamic loads and non-linear loads.
4) the products have the ultra-low full-load temperature rise, which ensures them high operation reliability and long service life.
the ADG200-4 generators can also be connected with 3-phase, 6-phase or 12-phase rectifiers (with 3-phase, 6-phase or 12-phase stator winding designs) to realize the high-quality DC outputs.
