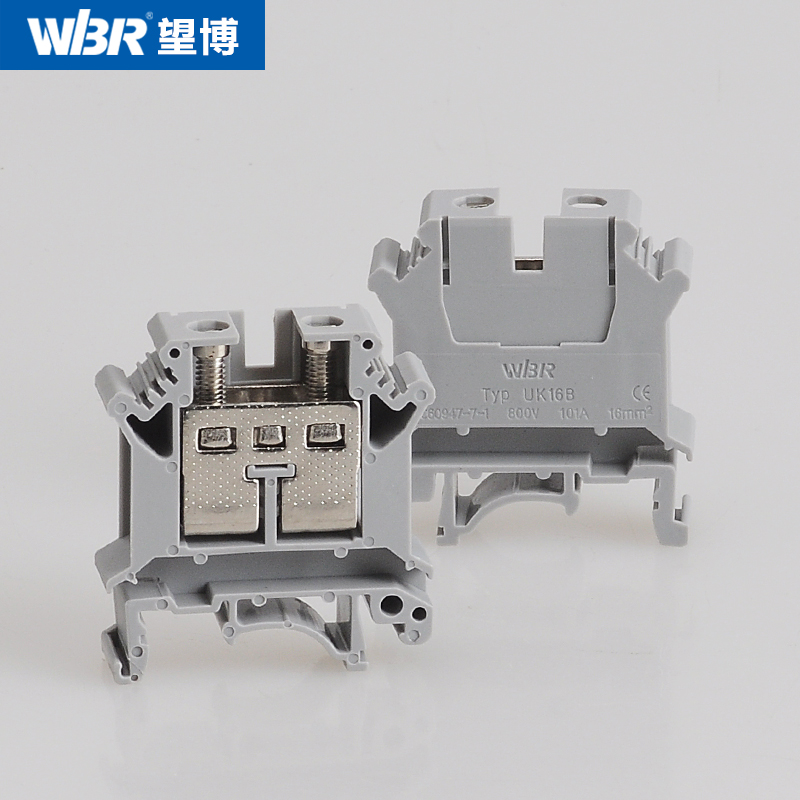

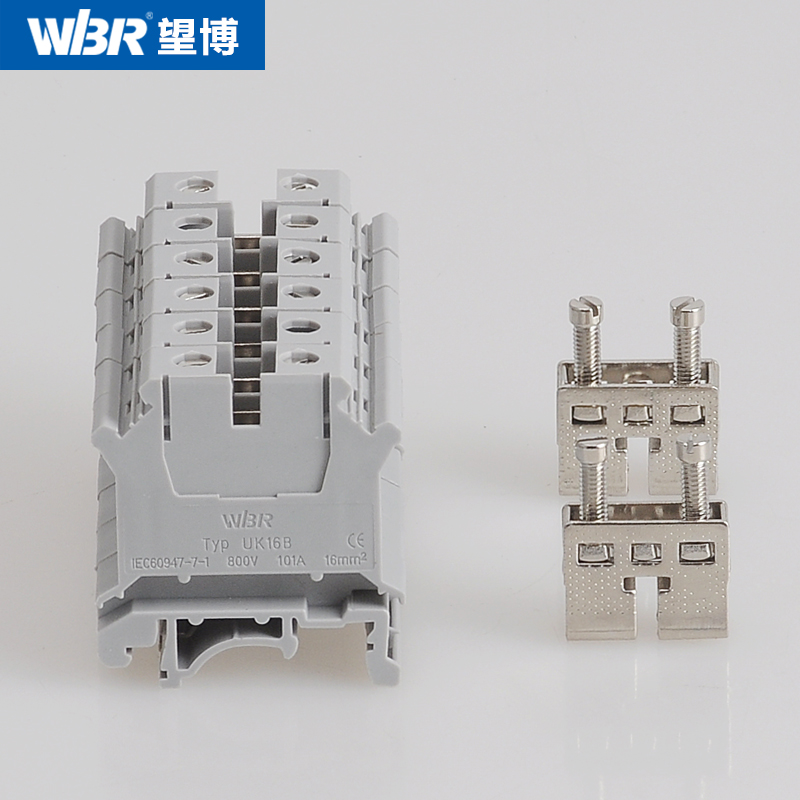

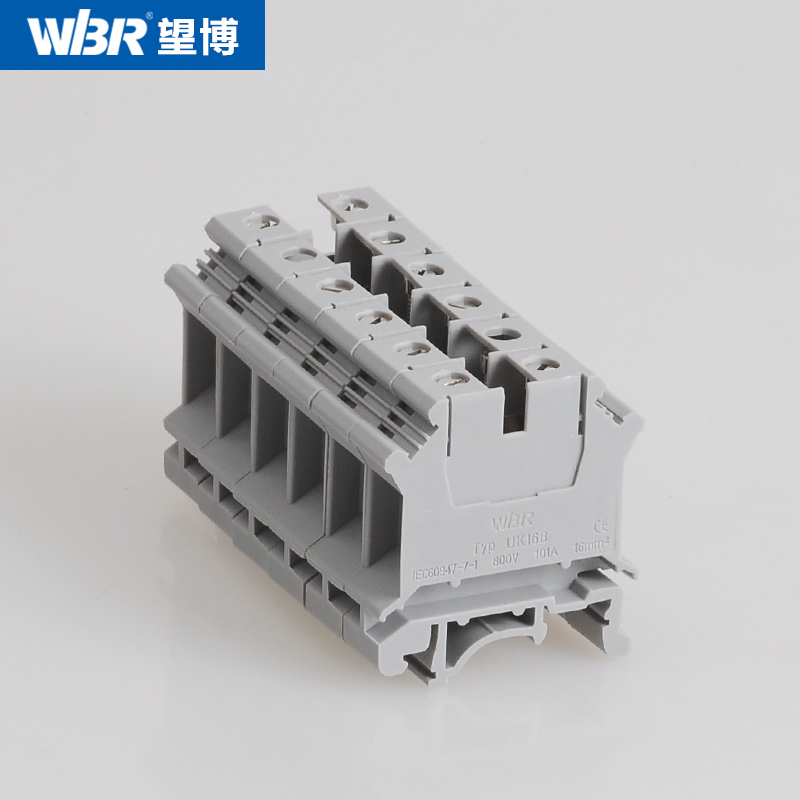

DIN Rail Tmerinlas Block UK16B Connector

Supply Ability:	20 Bushel(s) per Day
Shipping:	Shanghai
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	50PCS/BOX 2000PCS/CNT

Quick Details

Model No.	UK16B
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	42.5/42/16.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/24A
CRoss section, solid/soft Cable	0.14-16 mm2 / 0.14-16mm2
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	4.32g/PC, 100PCS/BOX,1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
