Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: Mircolomay
- Color: Orange
- Application: material handling
- Material: AGV
- payload: 500KG
Specifications
Product Description

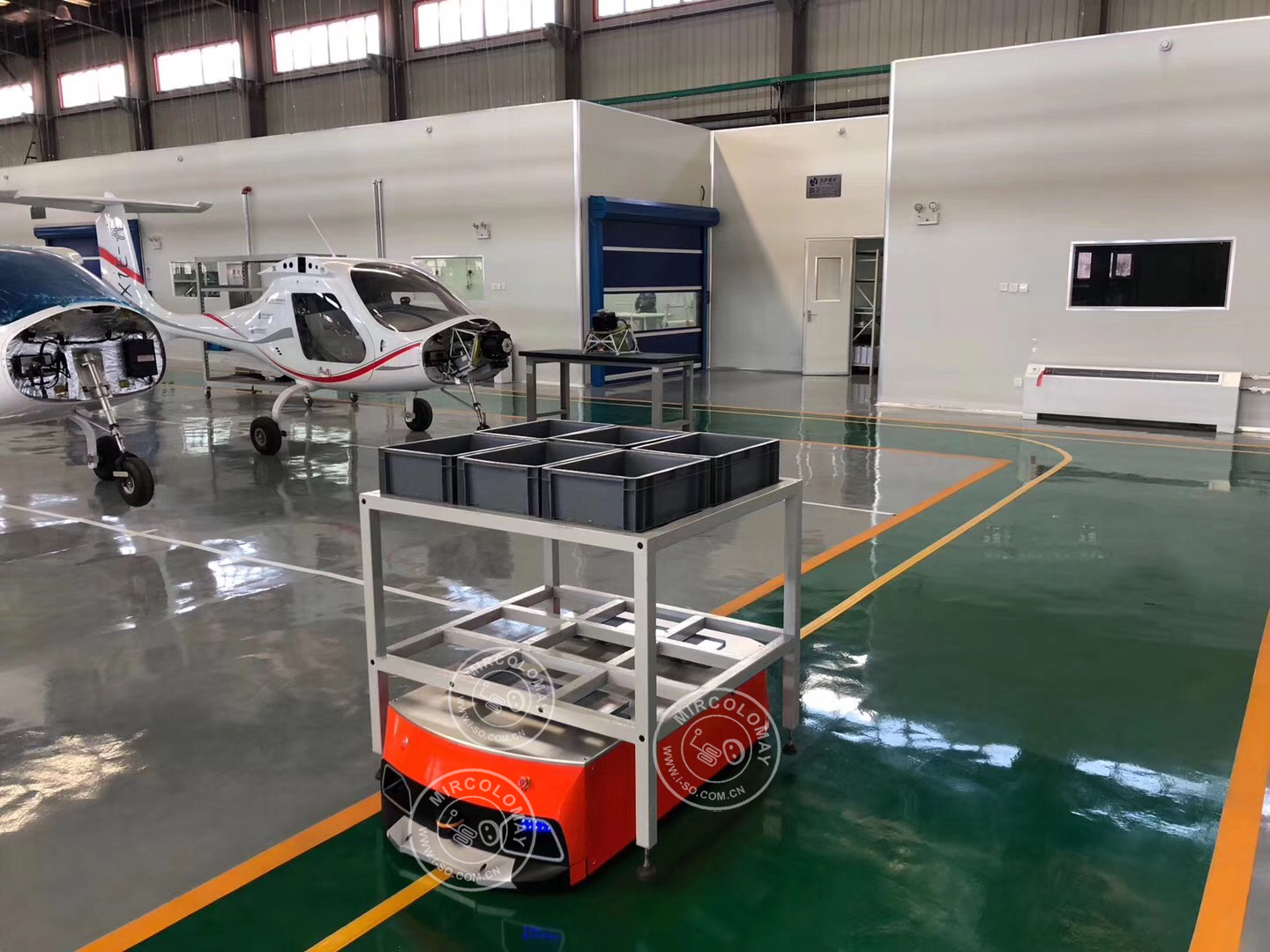

HY-500 is a lift type unmanned vehicle which designed by MircoLomay mainly for factory and logistics transportation.
the driving method of HY-500 AGV is integrated differential driving,it has high efficient motion control system and lifting platform to make it move easily without fixture.We used the magnetic tape guidance method and two-way driving to realize its high precision positioning and make the distribution more flexible and convenient.
You can customize site name through the intelligent control system of HY-500 and operate easily on the simple interface.
Product Parameter
Guide Method |
Magnetic tape guidance |
Driving Method |
Integrated differential driving |
Load Capacity |
500KG(Customizable to 1T) |
Size |
1350*700*340mm |
Driving speed |
0-50M/min(Adjustable 3 speed) |
Minimum turning radius |
R500mm |
Stop accuracy |
±10mm |
Continuous working time |
>24 hours |
Security features |
Mechanical anti-collision device; Obstacles sensor; Emergency switch |
Welcome to contact us if any needs.
