>Products Catalog > Feeder Cable > Hansen 50ohm RF 50 7/8'' Coaxial Feeder Cable RF 5078 Coaxial Shielded Cable for Transmission

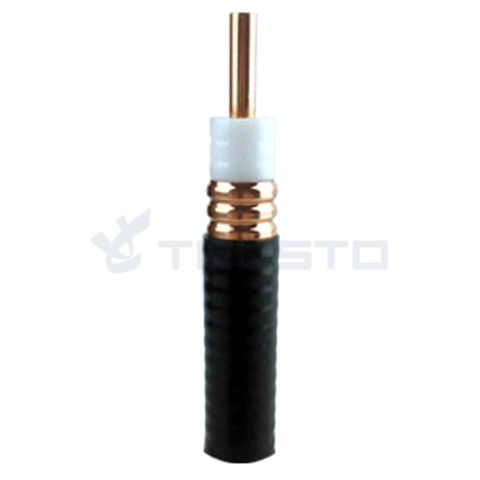

Hansen 50ohm RF 50 7/8'' Coaxial Feeder Cable RF 5078 Coaxial Shielded Cable for Transmission
| FOB Price: | 1.00 - 2.00 USD/Meter |
|---|---|
| Supply Ability: | 100,000 Meter(s) per Month |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard Export Packing |
Quick Details
- Type: Coaxial
- Brand Name: Hansen
- Application: Transmission signal
- Color: black
- Model Number: RF 5078
Specifications
 Construction | |||
| Inner conductor | Material | Smooth conpper tube | |
| dia. | 8.80±0.10 mm | ||
| Insulation | Material | Physically foamed PE | |
| dia. | 22.20±0.40 mm | ||
| Outer conductor | Material | Ring corrugated copper | |
| Diameter | 24.90±0.30 mm | ||
| Jacket | Material | PE or fire retardant PE | |
| Diameter | 27.30±0.20 mm | ||
| Mechanical properties | |||
Bending Radius |
Single Repeated Moving |
120 mm 250 mm 500 mm | |
| Pulling strength | 1470 N | ||
| Crush resistance | 1.4 kg/mm | ||
| Recommended temperature | PE jacket | store | -70±85°C |
| Installation | -40±60°C | ||
| Operation | -55±85°C | ||
| Fire retardant PE jacket | store | -30±80°C | |
| Installation | -25±60°C | ||
| Operation | -30±80°C | ||
| Electrical properties | |||
| Impedance | 50±2 Ω | ||
| Capacitance | 75 pF/m | ||
| Inductance | 0.187 uH/m | ||
| Propagation velocity | 88 % | ||
| DC breakdown voltage | 6.0 kV | ||
| Insulation resistance | >5000 MQ.Km | ||
| Peak power | 91 kW | ||
| Screening attenuation | >120 dB | ||
| Cut-off frequency | 5.5 GHz | ||
| Attenuation and average power | |||
| Frequency,MHz | Power rate@20°C,kW | Nom.Attenuation@20°C,dB/100m | |
| 10 | 24.6 | 0.366 | |
| 100 | 7.56 | 1.19 | |
| 450 | 3.41 | 2.65 | |
| 690 | 2.85 | 3.35 | |
| 800 | 2.48 | 3.63 | |
| 900 | 2.33 | 3.88 | |
| 1000 | 2.19 | 4.12 | |
| 1800 | 1.57 | 5.75 | |
| 2000 | 1.48 | 6.11 | |
| 2200 | 1.41 | 6.45 | |
| 2400 | 1.34 | 6.79 | |
| 2500 | 1.30 | 6.95 | |
| 2600 | 1.27 | 7.12 | |
| 2700 | 1.25 | 7.28 | |
| 3000 | 1.16 | 7.76 | |
| Maximum attenuation value may be 105% of the nominal attenuaiton value. | |||
| vswr | |||
| 820-960MHz | ≤1.15 | ||
| 1700-2200MHz | ≤1.15 | ||
| 2300-2400MHz | ≤1.15 | ||
| Standards | |||
| 2011/65/EU | Compliant | ||
| IEC61196.1-2005 | Compliant | ||
