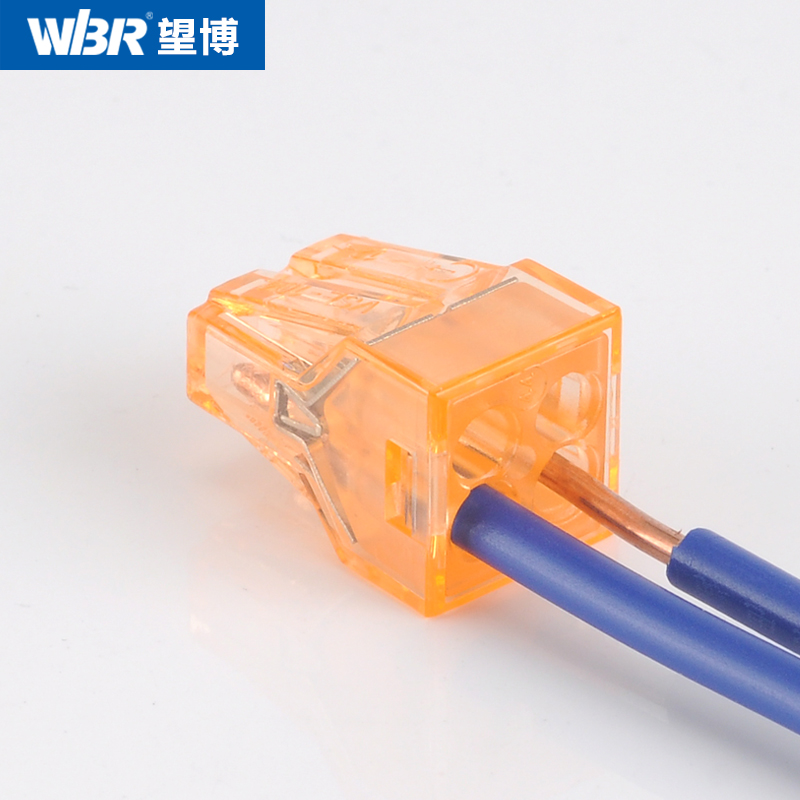

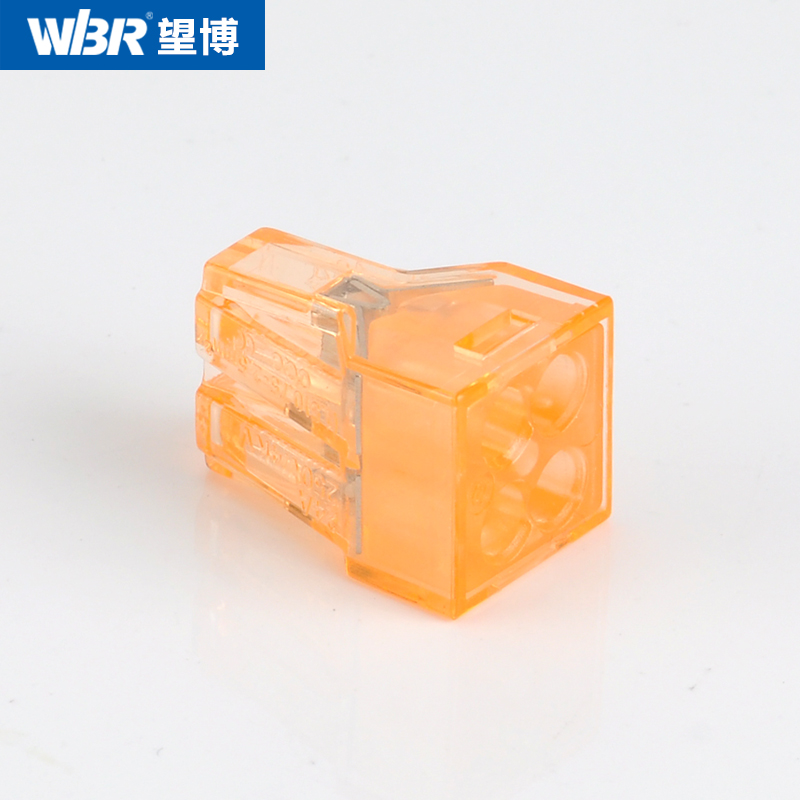

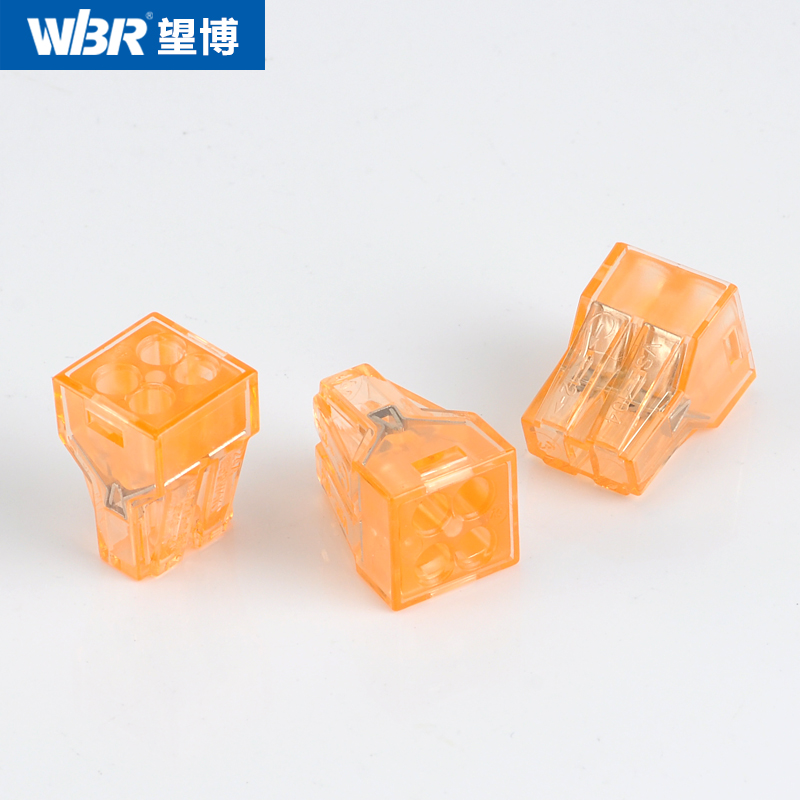

Light Wire Connector Pure Copper Terminal Block VSE104-C

Supply Ability:	20 Box(es) per Day
Shipping:	Shanghai
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

Type: Plug-in
Conductor Size: 11 - 20 AWG
Number of Contacts: 11 - 20
Brand Name: WBR
Wire range: 0.75-2.5mm2
Model Number: VSE104-C
colour: orange

Specifications

the internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. for the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross sections.

the JUK universal screw terminal block series has the typical features which are decisive for practical applications.
Made from engineering Flaming resistant nylon PA66 with brass Conductor.
with universal foot which can be installed on DIN Rail NS 35.
It can connect two conductors with ease, even large conductor cross sections are not a problem.
Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.
Knife disconnect terminal block, with test socket screws for insertion of test plugs. Localize malfunctions quickly and easily, and perform off-load maintenance.
All types of accessories: End cover, End Stopper, Partition plate,Separating plate, MArker sTrip, FIxed bridge, INsertion bridge, etc.

Technical Parameters

Model No.	VSE104-C, Knife disconnect terminal block
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	51/46.5/6.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/16A
CRoss section, solid/soft Cable	0.2-4 mm2 / 0.2-4 mm2
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized

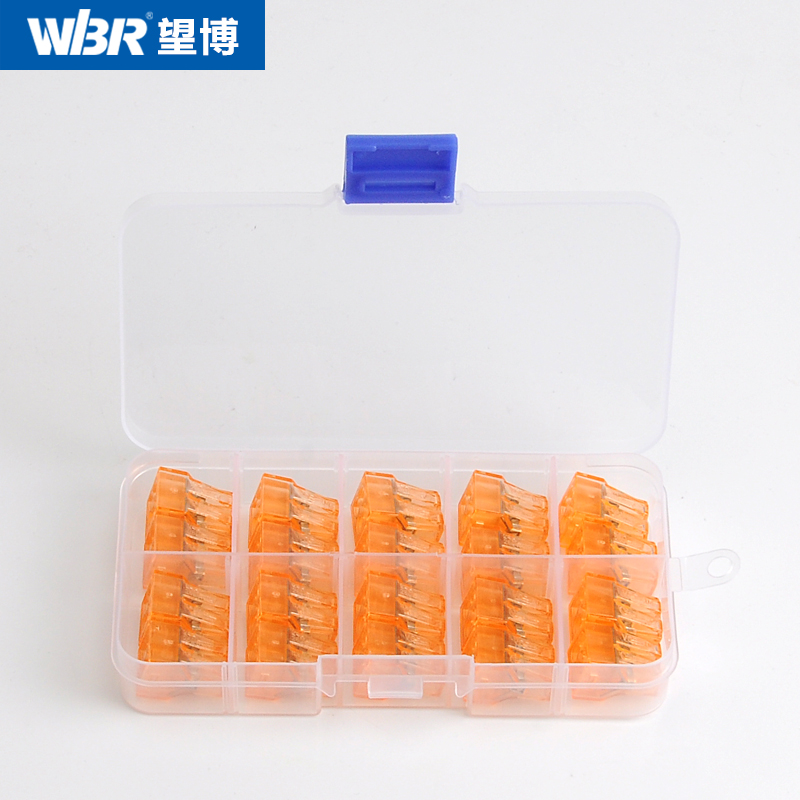

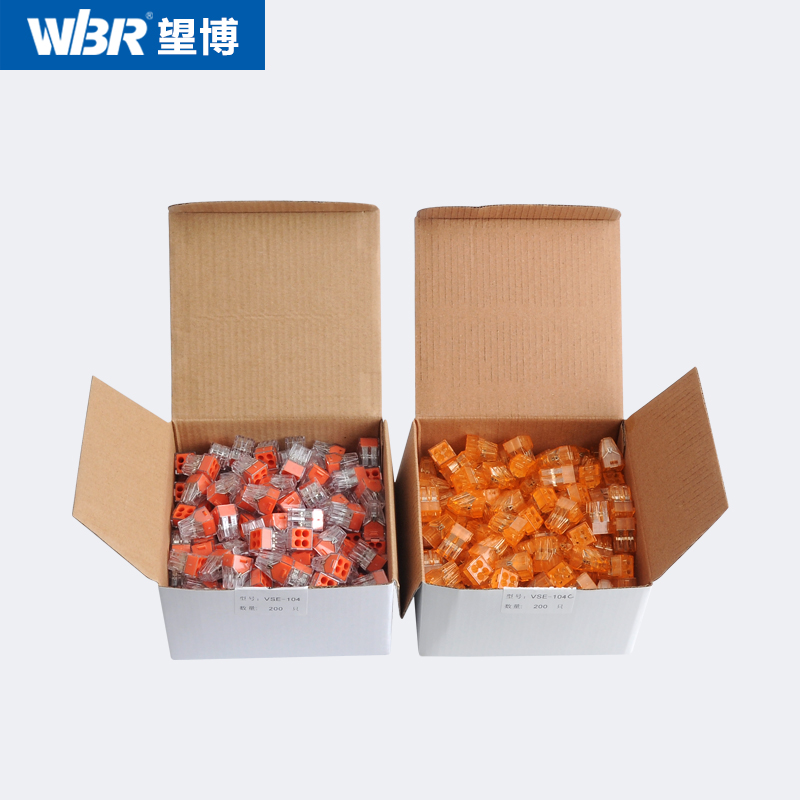

Packing Detail	12.79g/PC, 50PCS/BOX,1500PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001
