>Products Catalog > RF Connector > DIN 7/16 Female Connector for 7/8'' Flexible RF Cable RF Coaxial Connector

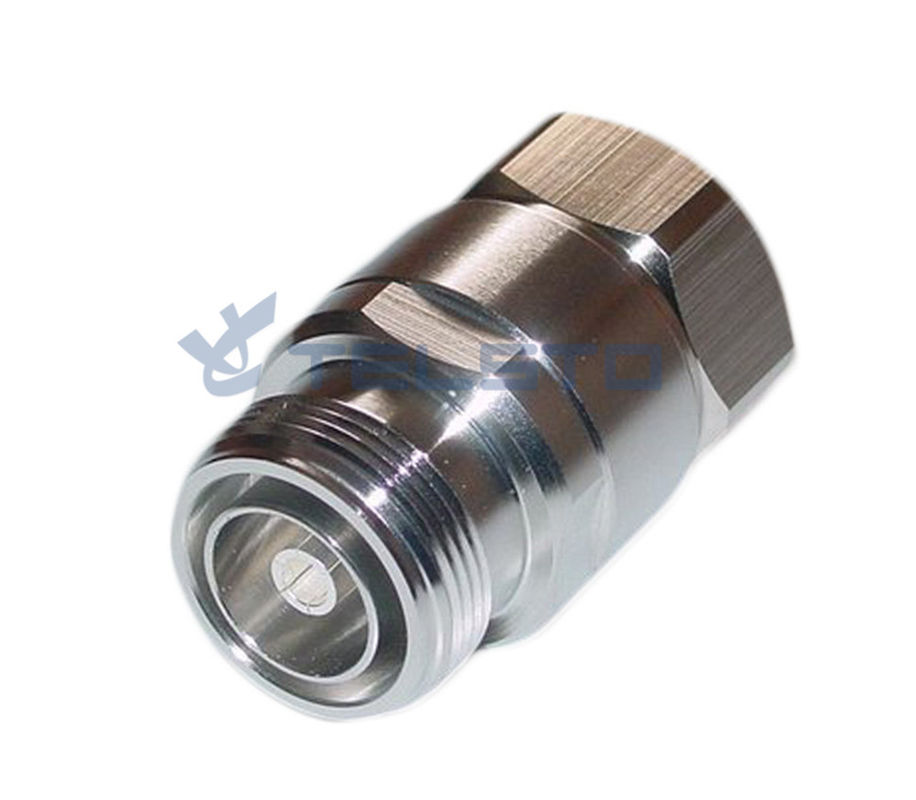

DIN 7/16 Female Connector for 7/8'' Flexible RF Cable RF Coaxial Connector
| FOB Price: | 0.50 - 1.00 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece(s) per Quarter |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Standard Export Packing |
Quick Details
- Brand Name: Telsto
- Material: Brass
- Sealing Class: 67
- Color: Silver
- Application: Transmission signal
- Model Number: TEL-DINF.78-RFC

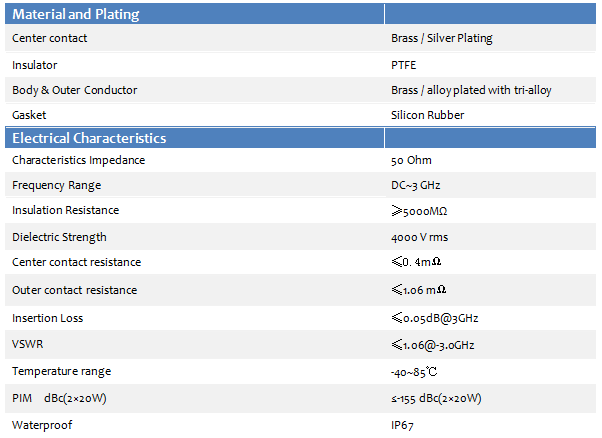

Specifications
Telsto RF Connector has an operational frequency range of DC-3 GHz, offers excellent VSWR performance and Low Passive Intermodulation. this makes it ideally suited for use in cellular basestations, distributed antenna systems (DAS) and small cell applications.
A coaxial RF connector (radio frequency connector) is an electrical connector designed to work at radio frequencies in the multi-megahertz range. RF connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers. Better models also minimize the change in transmission line impedance at the connection. Mechanically, they may provide a fastening mechanism (thread, bayonet, braces, blind mate) and springs for a low ohmic electric contact while sparing the gold surface, thus allowing very high mating cycles and reducing the insertion force. Research activity in the area of radio-frequency (RF) circuit design has surged in the 2000s in direct response to the enormous market demand for inexpensive, high-data-rate wireless transceivers.
RF Connectors designs and manufactures an extensive line of radio frequency (RF) coaxial connectors used in wireless telecommunications applications, including WiFi, PCS, radio, computer networks, test instruments and antenna devices.
