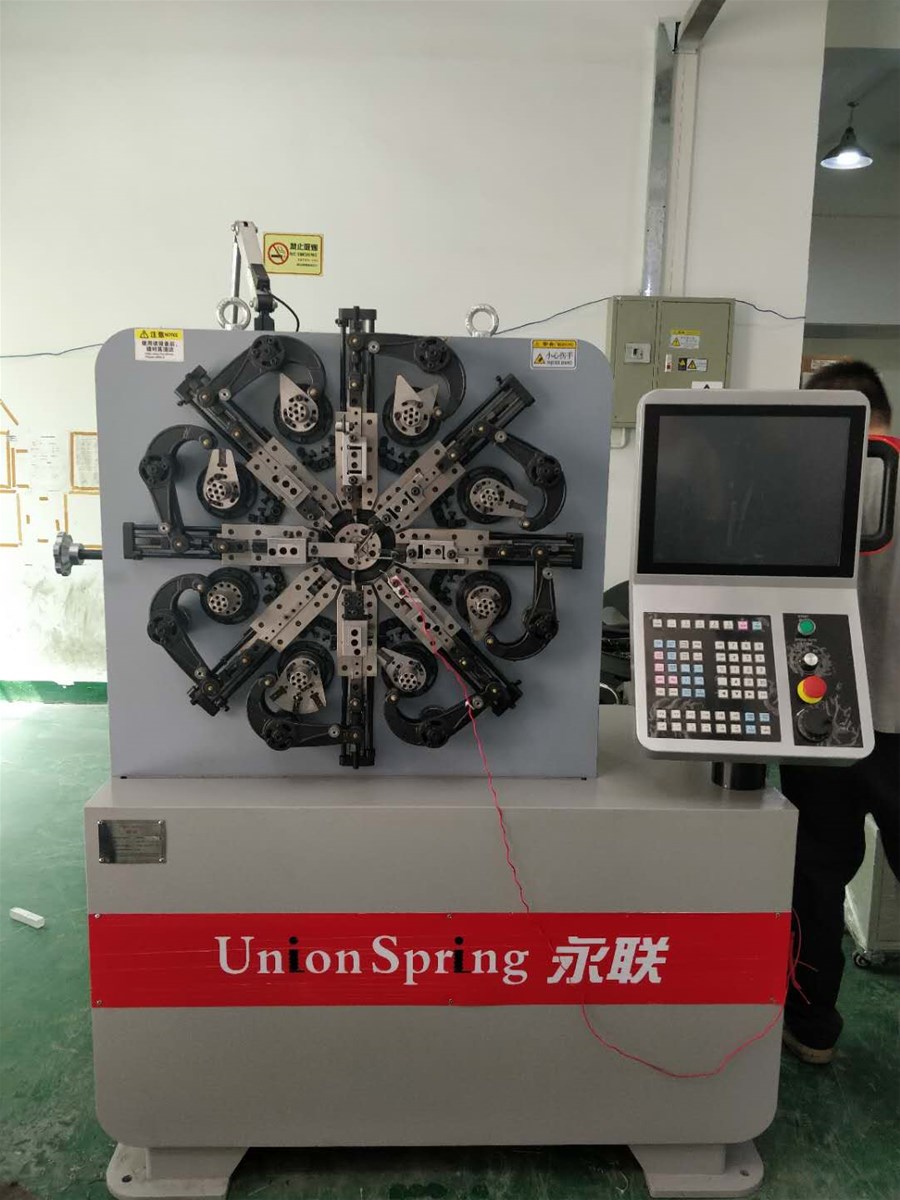

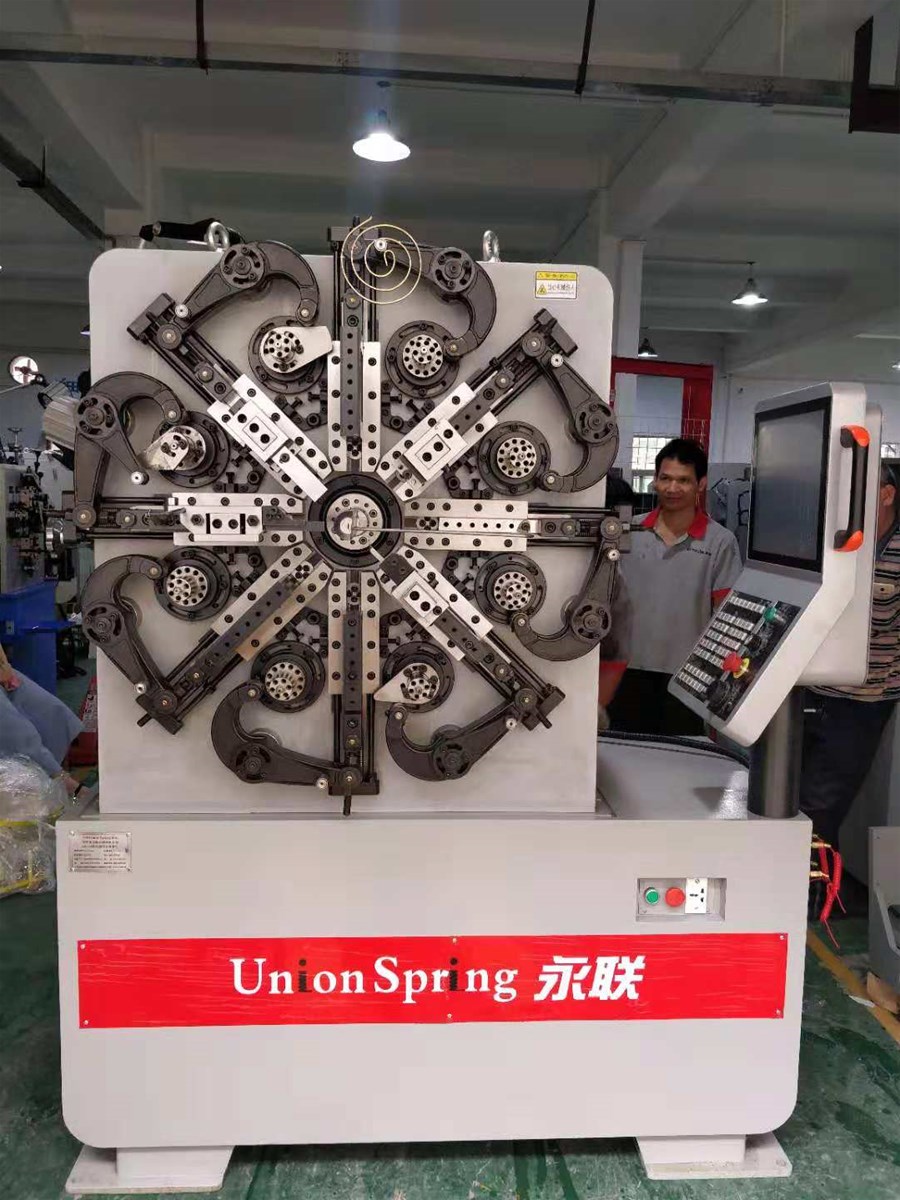

CNC Spring Forming Machine, Pins Hook Making Machine, CNC Torsion Spring Wire Forming Metal Clip Hook Machine
| FOB Price: | 2500.00 - 2700.00 USD/Piece |
|---|---|
| Supply Ability: | 10 Piece(s) per Quarter |
| Shipping: | by sea |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, Africa |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1550*850*1850mm3 |
Quick Details
- Brand Name: UNION SPRING
- Power: Electricity
- Type: Wire Binding Machine
- Max Punching Capacity: shenzhen
- Max binding capacity: shenzhen
- Model Number: US-35
- COLOR: RED AND GREY
- type: cnc
Specifications
1. the machine adopts computer control system imported from Taiwan and servo motor imported from Japan.
2. the four axis of the machine are cam axis, wire feeding axis, rotary quill axis, and spinner axis(optional accessory). the four axis can be operated synchronously.
3. the position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. According to the working conditions on the display, the outer diameter and angle of the product can be modified at any time. It is equipped with precision detection and tracking equipment, which can automatically stop the machine if there are unqualified products.
4, the machine is suitable for the production of double torsion springs, straight springs, tower springs, tension springs, rectangular springs, vortex springs and various fancy springs and shaped springs.
Specification:
Model |
US-20 |
US-35 |
Axis |
3/4 |
3/4 |
Wire Diameter |
0.3-2.5mm |
0.8-4.0mm |
Wire WheelSets |
2Sets |
3Sets |
Cam Axis |
2.7KW |
5.5KW |
Wire Feeding Axis |
2.7KW |
5.5KW |
Rotary Quill Axis |
1KW |
1KW |
SpinnerAxis |
0.4KW |
1KW |
MachineSize |
1350*750*1650mm3 |
1550*850*1850mm3 |
Machine Weight |
850kg |
1800kg |
