Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Sichuan in China

Quick Details

Operating Temperature: 0 ~ +70c
Supply Voltage: <=8v
Application: Telecommunication
Type: LiNbO3 MIOC
Brand Name: westmag

Specifications

Mini LiNbO₃ multi-function integrated optical chip (MIOC) is designed special for mini system. There are several cells integrated on the same chip, include polarizer, splitter, combiner, phase modulator, etc.

Key Capability

2 Super small packaging

2 X-cut,y-propagating LiNbO₃

2 Very low insertion loss

2 APE process for waveguide

2 Push-pull electrode design

2 Excellent long-term stability

Applications

2 Fiber optic gyroscopes (FOG).

2 Fiber optic current sensor(FOCS)

2 Hydrophone and other optic sensitive fields

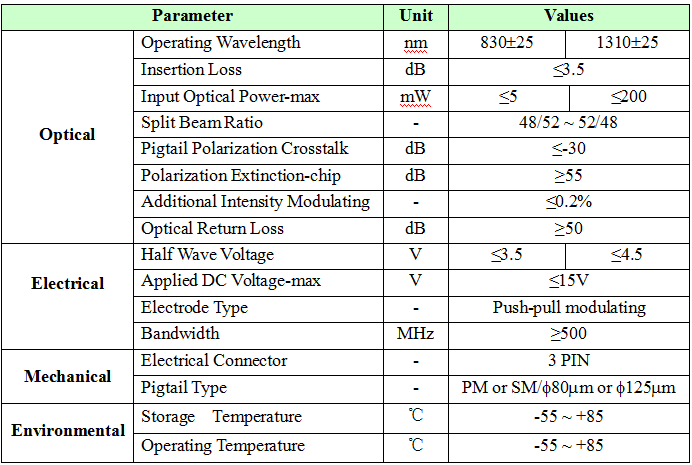

Specifications(23^oC)

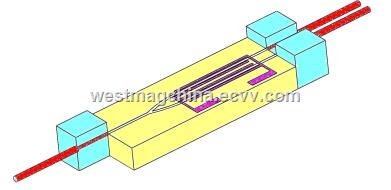

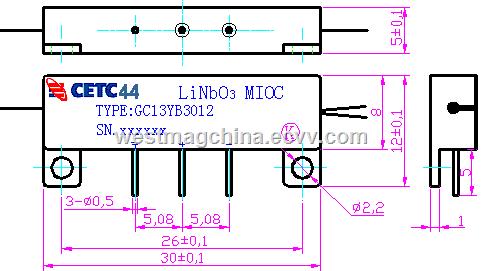

Structure

We can provide different pigtail and package by customer requirement. Welcome to contact us.
Note:Price depends on performance requirements.
