China Shipping Anchor Chain(Jiangsu) Co., Ltd.
China Manufacturer with main products: Anchor, Anchor Chain, Steel Buoy, Anchor Chain Accessories |

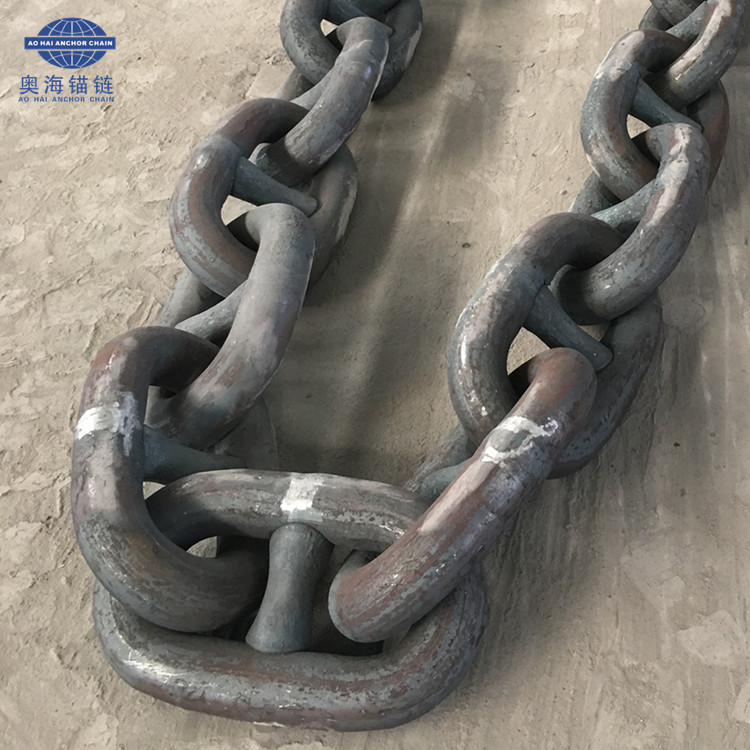

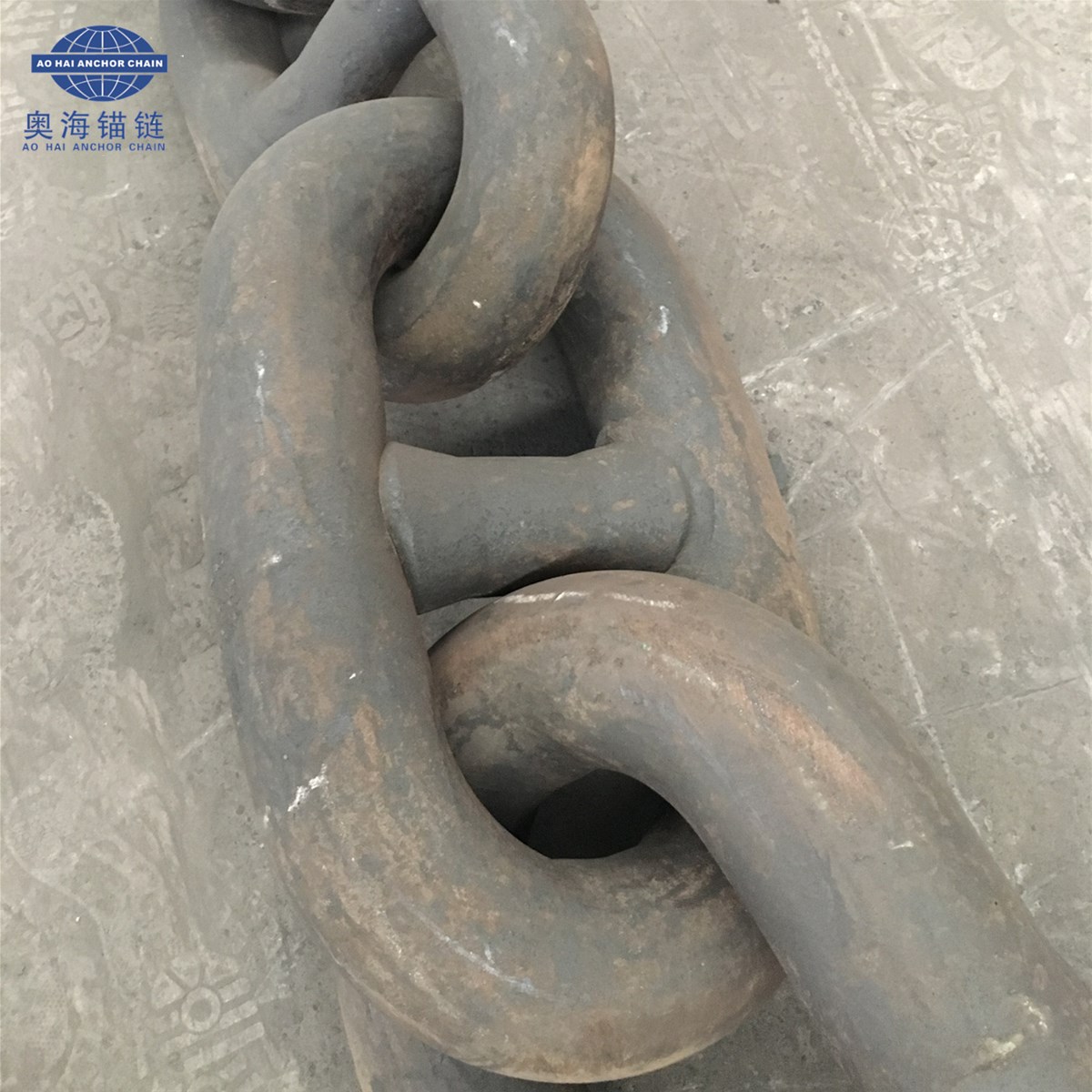

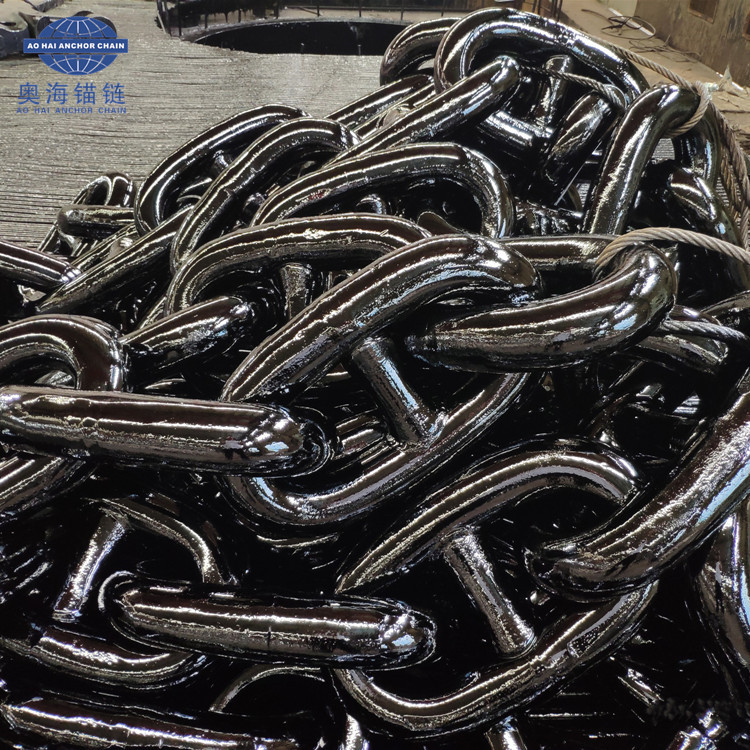

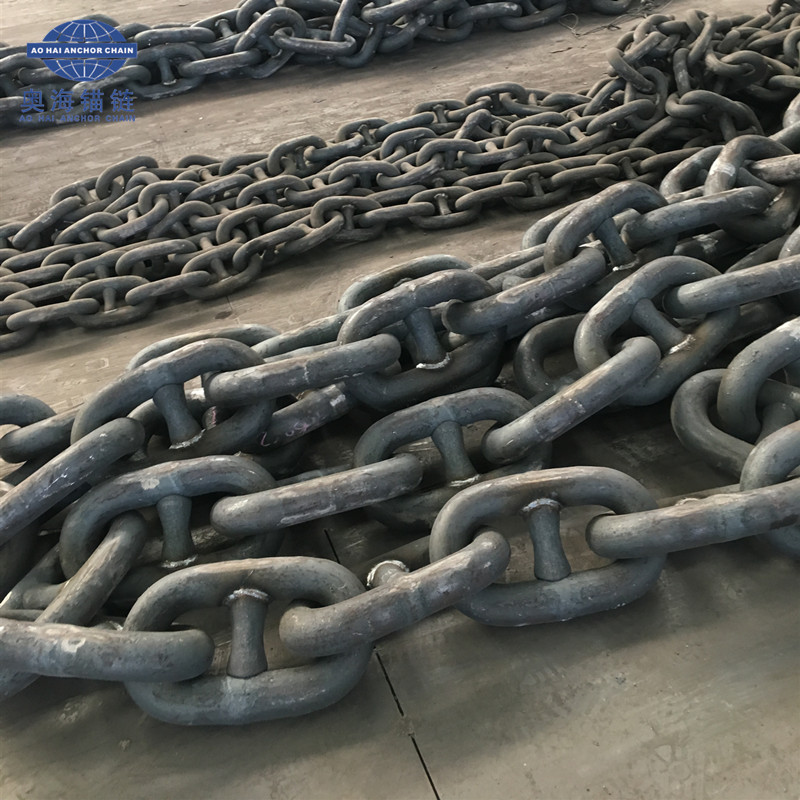

100MM Marine Stud Link Anchor Chain In Stock
| FOB Price: | 1000.00 - 1200.00 USD/Ton |
|---|---|
| Shipping: | 25 |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Part: anchor chain
- Brand Name: Aohai
- Material: steel
- size: 12.5-162MM
- Diameter: 12.5-162MM
- Color: Black,Galvznized
- Product Name: 90MM Marine Stud Link Anchor Chain In Stock
- Certification: : ISO9001, LR, ABS, DNV, GL, BV, NK, KR, CCS, RINA, CCS, RMRS...
- Size: 12.5-162MM
- Packing: in nude
- Material: steel
Specifications
China largest 100MM stud link anchor chain, manufacturer, supplier, stockiest,for sales. DNV GL BV ABS LR CCS NK KR Class,100MM stud link anchor chain;anchor chain;china 100MM stud link anchor chain;100MM stud link anchor chain;anchor chain manufacturer;anchor chain suppliersuper long warranty
1.Product Description:
Stud Link Anchor Chain is available in size from 12.5mm to 162mm.Chains are supplied in a number of different material grades,grade 2 and grade 3 being the most common for ship equipment.
| Dia. | Proof load(KN) | Breaking load(KN) | Weight | ||||
| MM | U1 | U2 | U3 | U1 | U2 | U3 | KG/M |
| 12.5 | 46 | 66 | 92 | 66 | 92 | 132 | 3.42 |
| 14 | 58 | 82 | 116 | 82 | 116 | 165 | 4.29 |
| 16 | 76 | 107 | 150 | 107 | 150 | 216 | 5.61 |
| 17.5 | 89 | 127 | 179 | 127 | 179 | 256 | 6.71 |
| 19 | 105 | 150 | 211 | 150 | 211 | 301 | 7.91 |
| 20.5 | 123 | 175 | 244 | 175 | 244 | 349 | 9.20 |
| 22 | 140 | 200 | 280 | 200 | 280 | 401 | 10.60 |
| 24 | 167 | 237 | 332 | 237 | 332 | 478 | 12.61 |
| 26 | 194 | 278 | 389 | 270 | 389 | 556 | 14.80 |
| 28 | 225 | 321 | 449 | 321 | 449 | 642 | 17.17 |
| 30 | 257 | 368 | 514 | 368 | 514 | 735 | 19.71 |
| 32 | 291 | 417 | 583 | 417 | 583 | 833 | 22.43 |
| 34 | 328 | 468 | 655 | 468 | 655 | 937 | 25.32 |
| 36 | 366 | 523 | 732 | 523 | 732 | 1050 | 28.38 |
| 38 | 405 | 581 | 812 | 581 | 812 | 1190 | 31.62 |
| 40 | 448 | 640 | 896 | 640 | 896 | 1280 | 35.04 |
| 42 | 492 | 703 | 981 | 703 | 981 | 1400 | 38.63 |
| 44 | 538 | 769 | 1080 | 769 | 1080 | 1540 | 42.40 |
| 46 | 585 | 837 | 1170 | 837 | 1170 | 1680 | 46.34 |
| 48 | 635 | 908 | 1270 | 908 | 1270 | 1810 | 50.46 |
| 50 | 685 | 981 | 1370 | 981 | 1370 | 1960 | 54.75 |
| 52 | 739 | 1060 | 1480 | 1060 | 1480 | 2110 | 59.22 |
| 54 | 794 | 1140 | 1590 | 1140 | 1590 | 2270 | 63.86 |
| 56 | 851 | 1220 | 1710 | 1220 | 1710 | 2430 | 68.68 |
| 58 | 909 | 1290 | 1810 | 1290 | 1810 | 2600 | 73.67 |
| 60 | 969 | 1380 | 1940 | 1380 | 1940 | 2770 | 78.84 |
| 62 | 1030 | 1470 | 2060 | 1470 | 2060 | 2940 | 84.18 |
| 64 | 1100 | 1560 | 2190 | 1560 | 2190 | 3130 | 89.70 |
| 66 | 1160 | 1660 | 2310 | 1660 | 2312 | 3300 | 95.40 |
| 68 | 1230 | 1750 | 2450 | 1750 | 2450 | 3500 | 101.30 |
| 70 | 1290 | 1740 | 2580 | 1840 | 2580 | 3690 | 107.30 |
| 73 | 1390 | 1990 | 2790 | 1990 | 2790 | 3990 | 116.71 |
| 76 | 1500 | 2150 | 3010 | 2150 | 3010 | 4300 | 126.50 |
| 78 | 1580 | 2260 | 3160 | 2260 | 3160 | 4500 | 133.20 |
| 81 | 1690 | 2410 | 3380 | 2410 | 3380 | 4820 | 143.69 |
| 84 | 1800 | 2580 | 3610 | 2580 | 3610 | 5160 | 154.53 |
| 87 | 1920 | 2750 | 3850 | 2750 | 3850 | 5500 | 165.76 |
| 90 | 2050 | 2920 | 4090 | 2920 | 4090 | 5840 | 177.39 |
| 92 | 2130 | 3040 | 4260 | 3040 | 4260 | 6080 | 185.36 |
| 95 | 2260 | 3230 | 4510 | 3230 | 4510 | 6440 | 197.56 |
| 97 | 2340 | 3340 | 4680 | 3340 | 4680 | 6690 | 206.06 |
| 100 | 2470 | 3530 | 4940 | 3530 | 4940 | 7060 | 219.00 |
| 102 | 2560 | 3660 | 5120 | 3660 | 5120 | 7320 | 227.85 |
| 105 | 2700 | 3850 | 5390 | 3850 | 5390 | 7700 | 241.45 |
| 107 | 2790 | 3980 | 5570 | 3980 | 5570 | 7960 | 250.73 |
| 111 | 2970 | 4250 | 5940 | 4250 | 5940 | 8480 | 269.83 |
| 114 | 3110 | 4440 | 6230 | 4440 | 6230 | 8890 | 284.61 |
| 117 | 3260 | 4650 | 6510 | 4650 | 6510 | 9300 | 299.79 |
| 120 | 3400 | 4850 | 6810 | 4850 | 6810 | 9720 | 315.36 |
| 122 | 3500 | 5000 | 7000 | 5000 | 7000 | 9990 | 325.96 |
| 124 | 3600 | 5140 | 7200 | 5140 | 7200 | 10280 | 336.73 |
| 127 | 3750 | 5350 | 7490 | 5350 | 7490 | 10710 | 353.23 |
| 130 | 3900 | 5570 | 7800 | 5570 | 7800 | 11140 | 370.11 |
| 132 | 4000 | 5720 | 8000 | 5720 | 8000 | 11420 | 381.59 |
| 137 | 4260 | 6080 | 8510 | 6080 | 8510 | 12160 | 411.04 |
| 142 | 4520 | 6450 | 9030 | 6450 | 9030 | 12910 | 441.59 |
| 147 | 4790 | 6840 | 9560 | 6840 | 9560 | 13660 | 473.24 |
| 152 | 5050 | 7220 | 10100 | 7220 | 10100 | 14430 | 505.98 |
| 157 | 5320 | 7600 | 10640 | 7600 | 10640 | 15200 | 539.81 |
| 162 | 5590 | 7990 | 11180 | 7990 | 11180 | 15980 | 574.74 |
Aohai Marine Fittings Co., Ltd. Was founded in 2009, total investment nearly one billion, intending to be the most modernized product line in China, manufacturing welded anchor chain, offshore mooring chain and steel structured anchor. We mainly manufacture marine anchor chain from 22mm to 182mm, offshore mooring chain, ship anchor chain, stud link anchor chain, studless anchor chain, galvanized anchor chain, offshore chain, buoy chain, marking chain, buoy chain, chafing chain, steel structured anchor, flipper delta anchor, delta anchor, stevpris anchor, MK5 anchor, MK6 anchor, spek anchor, hall anchor, admiralty anchor, AC-14 HHP anchor, aquaculture anchor, steel structured buoy, mooring buoy, shipboard fittings and so on, we can supply with CCS, BV, LR, ABS, KR, NK, DNV-GL and other certificate from 11 class societies and admiralty approval.
3.Quality Control:
China largest 100MM stud link anchor chain, manufacturer, supplier, stockiest,for sales. DNV GL BV ABS LR CCS NK KR Class,100MM stud link anchor chain;anchor chain;china 100MM stud link anchor chain;100MM stud link anchor chain;anchor chain manufacturer;anchor chain suppliersuper long warranty
Manufacturing process quality control from raw material to final product, we make our own tracking number in every production progress to ensure traceability.
Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 4000Ton.
4.Manufacturing Advantage:
We have more than 18 years experience in anchor chain / mooring chain / steel mooring buoy / steel welded Anchor and accessories production and sales, and are the largest Manufacturer in China.
for Anchor chain from 2014 to 2016 our sales is the NO. 1 in worldwide.
Our factory is ISO9001 approval, OSHMS18001 approval, ISO14001 approval, API approval and type approval by all IACS members.
with excellent product quality and superior service Aohai has been the appointed Military supplier of Chinese Navy.
7.Certification:
China largest 100MM stud link anchor chain, manufacturer, supplier, stockiest,for sales. DNV GL BV ABS LR CCS NK KR Class,100MM stud link anchor chain;anchor chain;china 100MM stud link anchor chain;100MM stud link anchor chain;anchor chain manufacturer;anchor chain suppliersuper long warranty
