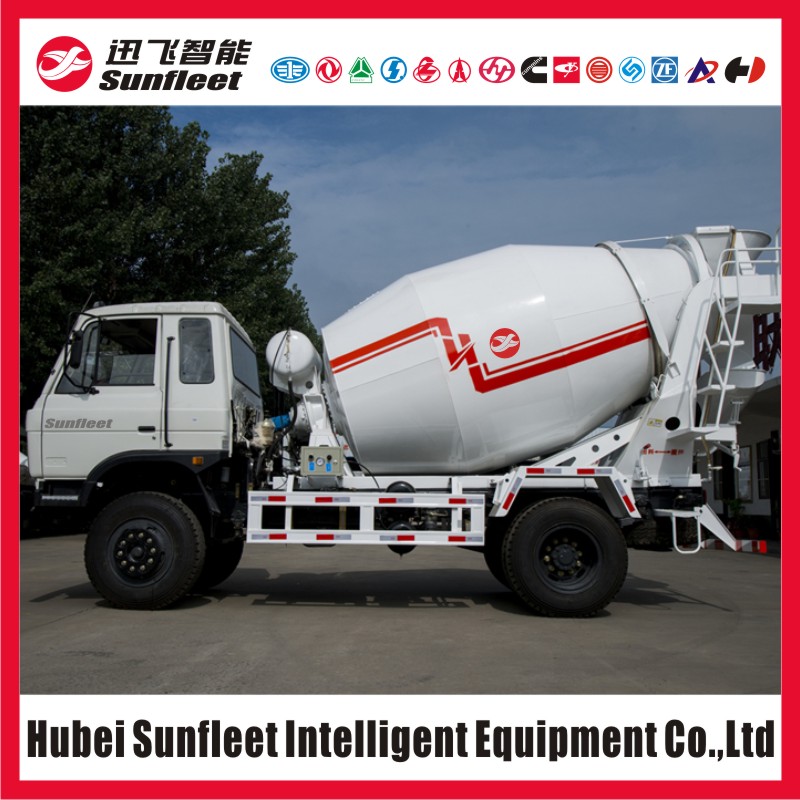

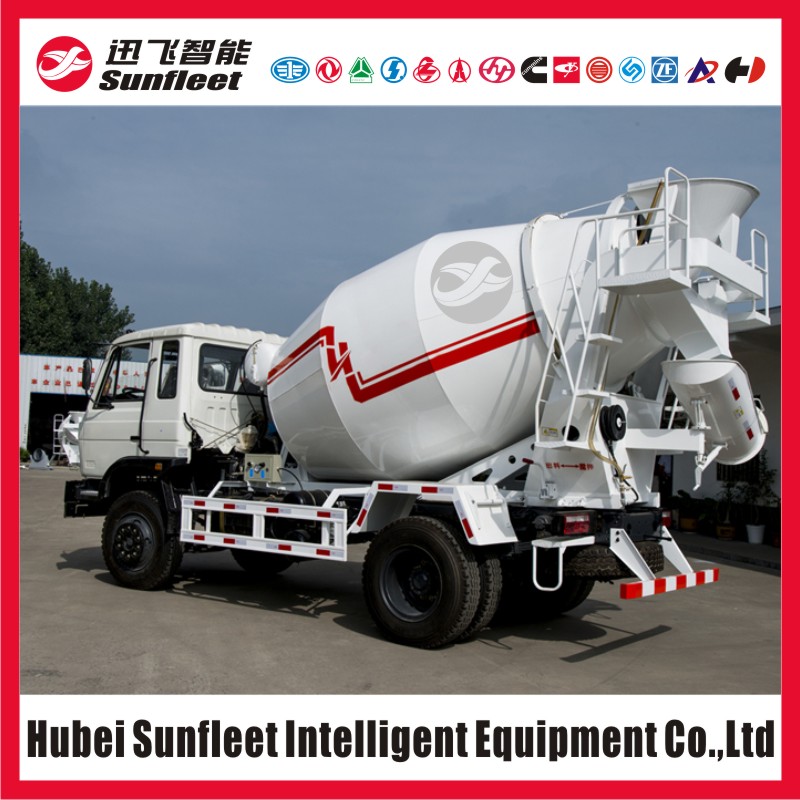

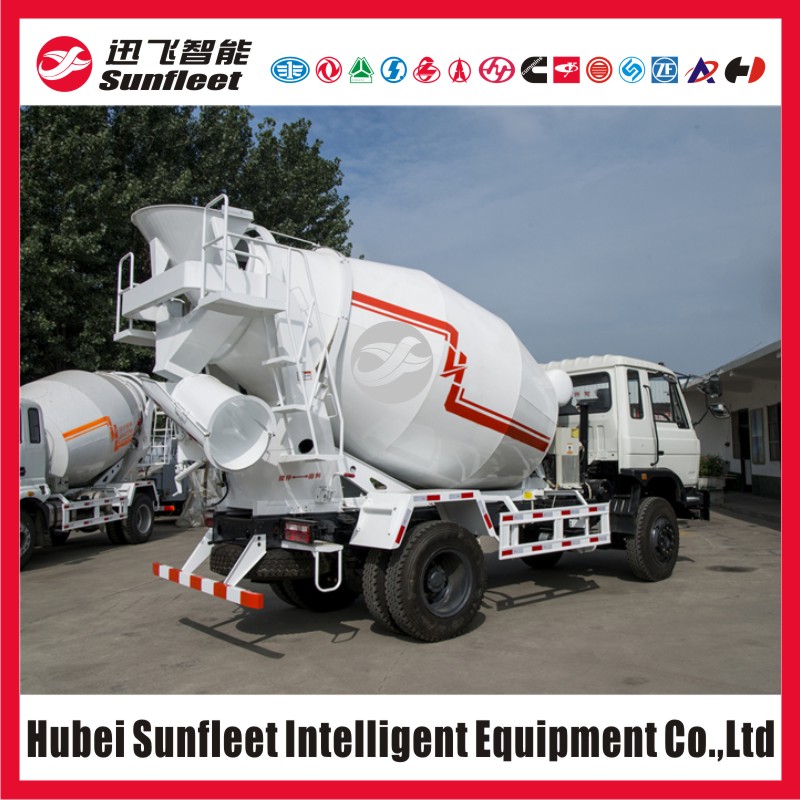

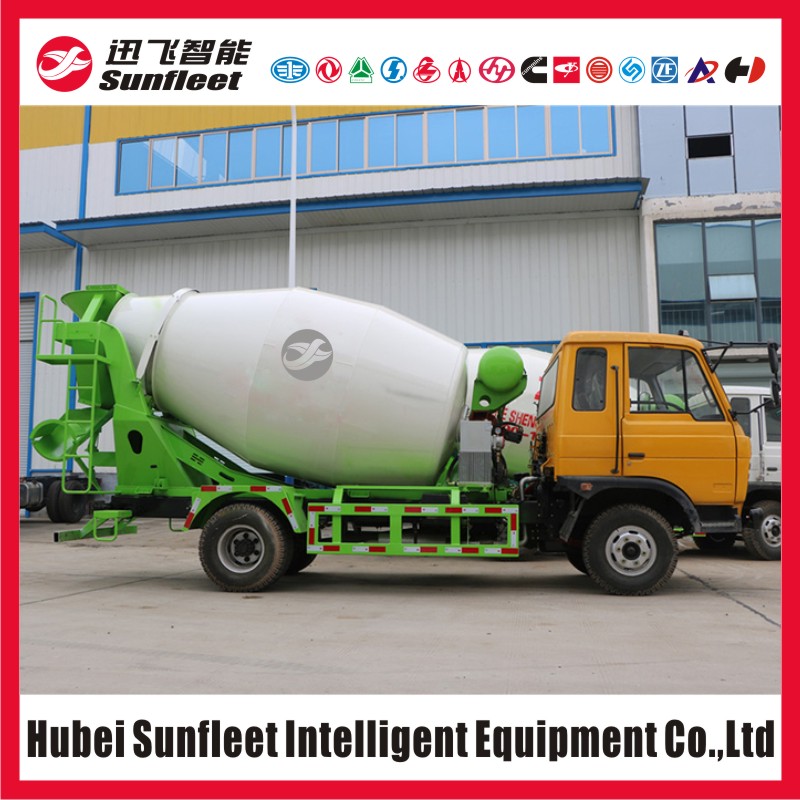

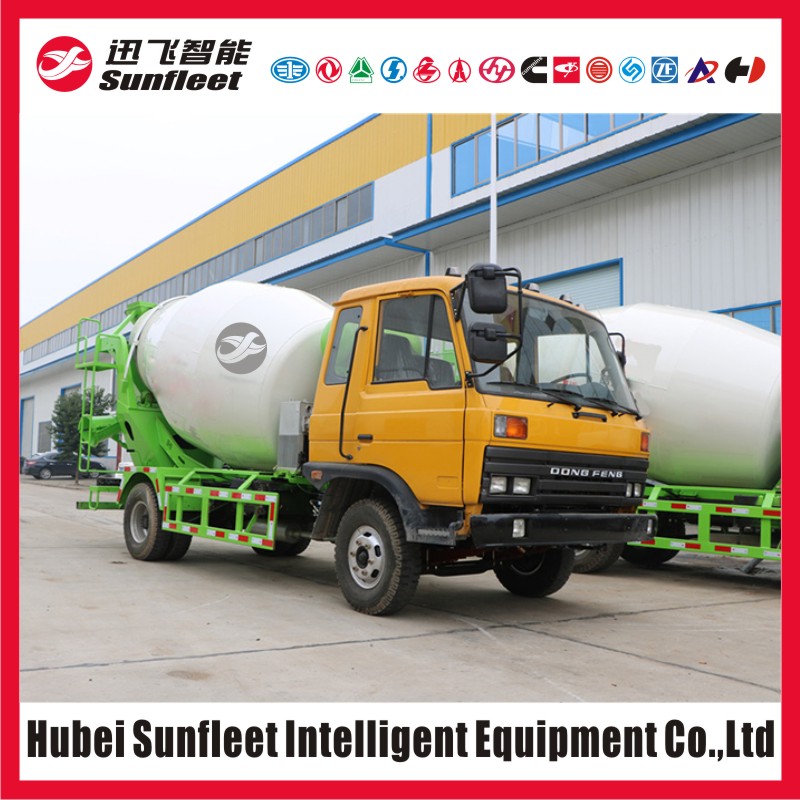

Dongfeng EQ Series 6 Wheel Cement Mixer Truck, 4x2 Truck Concrete Mixer, 5 Cbm Mixing Drum, Famous Brand Hydraulic System

FOB Price:	30000.00 - 60000.00 USD/Unit
Supply Ability:	300 Unit(s) per Year
Shipping:	shipping
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	no packing

Quick Details

Gross Vehicle Weight: 18000
Brand Name: dongfeng
Aftersales service: 1 year
Leading time: 30 days
Test operation: factory test
Model Number: 5168G
Max mixing cubage: 5 cbm
Mixing drum material: wear-resistant steel
Eu5 engine: cummins ISD245-51
Eu4 engine: cummins ISD245-40
Eu3 engine: Yuchai YC6A240-33

Specifications

Basic Specification Parameter
Model	HXF5168G
1,Basic Parameter
Overall Length/Width/Height (mm):	8900x2500x3850
Curb Weight (kg):	11500
Chassis Brand and Model:	Dongfeng EQ1168G
Wheelbase(mm):	3650
Front / Rear overhang (mm):	1500 / 2150
Approach / Departure Angle:	20-/13-
Front / Rear wheel distance (mm):	1940 /1860

2, Chassis Specification
Engine:	Dongfeng Cummins ISD245-51, YC6A240-33
Engine Type	Line cylinder, Water cooling, Turbo
Max HP and Power (km/rpm)	245HP, 180KW
Engine Displacement:	6700ml
Fuel Type:	Diesel
Emission Level:	Euro 5
Gearbox Model:	Fast 9JS135TA
Gear Specification:	9 advance gear, 1 reverse gear
Carframe Specification:	280/80/8+5
Carframe Section Height:	280mm
Section Width:	80mm
Section Thickness:	8+5
Front Axle Description:	Forge steel beam axle, tandem axle, H shape beam section
Front axle load(kg):	5500
Rear Axle Description:	Hub reduction tandem drive axle, Cast steel axle case, with speed differential lock, with ABS
Rear axle load(kg):	11500
Rear axle speedratio:	5.26
Suspension Spring Type:	Multi leaves steel plate spring
Suspension Spring Specification:	Front 9 leaves, Rear 10 leaves
Brake system:	Service brake: Duo loop air brake, steel tube with dryer
Brake system:	Parking brake: Cut-off air brake
Steering system:	Hydraulic power steering
Fuel Tank Cubage:	250L
Tyre Qty:	6 wheels
Tyre Specification:	10.00R20 16PR

3, Modification Describtion
Mixer drum material:	Alloy steel plate, thickness:5mm
Geometric volume of mixer drum:	8 CBM
Max mixing cubage:	5 CBM
Feeding speed:	≧3 CBM
Discharging speed:	≧3 CBM
Leftover Rate:	≤0.3%
Max ratating speed of mixer drum:	14-16 (r/min)
Mixer drum obliquity:	5-10 Degree
Mixer drum diameter:	2100mm
Speed reducer:	PMP/WPM/ZF/BONFIGLIOLI
Hydraulic pump:	SAO
Hydraulic motor:	SAO
Water supply mode:	Water pump
