CNC Woodworking Lathe/1.5m/Gaomi Hongxida CNC Machinery Co., Ltd

Specifications

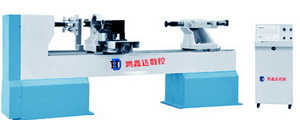

Shandong gaomi hongxinda CNC machinery co.,ltd/CNC woodworking lathe.


CNC woodworking lathe.

Product:




the new single-column and double-blade CNC numerical control woodworking lathe is equipped with a CNC three-axis control system. The self-developed double-blade simultaneous processing technology, within 300mm diameter, can be formed with one blade, no need to return to the knife, and accuracy and smoothness are improved. It is suitable for processing furniture workpieces with large diameter or smoothness requirements. Adopt metal CNC machining center power head, grinding screw drive, increase the heavy bed foot, make the processing more stable, higher accuracy, faster speed, comprehensive upgrade from the bed to all parts: the finished product Far beyond traditional CNC woodworking lathes
1: Overall casting bed: power head, casting knife table, casting tail seat
2: Spindle motor 5.5KW adopts frequency conversion stepless speed regulation device
3: X Z axis adopts 12N high precision stepping motor: grinding screw drive
4: Y axis adopts 16N high precision stepper motor: grinding screw drive
5: CNC control system: simple operation and easy to learn: it has functions such as stepless speed adjustment of processing speed, power-off memory, arbitrary setting of starting point, and restart of breakpoint.
6: Processing output: 20-1000mm 20-1500mm 20-2000mm
7: Processing directly: 20mm-200mm
8: Tool: White steel Tungsten steel
