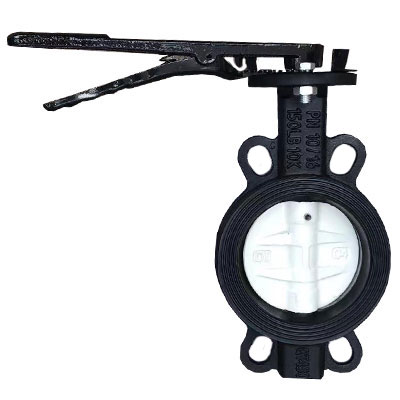

Wafer Butterfly Valve Manual Operated

FOB Price:	5.00 - 20.00 USD/Piece
Supply Ability:	150 Ton(s) per Month
Shipping:	FOB/CNF TIANJIN
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

capillary thermostat &bellow sensing thermo...

Price:2.50-8.00 USD/Piece

Min. Order:2,000 Pieces

Product Details

Export Markets:	North America, South America, Southeast Asia, Mid East, Eastern Asia
Packaging Details:	1.1M1.1M1.1M PLYWOOD BOX

Quick Details

Brand Name: JPLS
Temperature of Media: Medium Temperature
Material: Casting
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: D71X-10
Port Size: DN50-300
Media: Water
Power: Manual
Structure: Butterfly
PAINT: EPOXY
OPERATE: HANLDE
APPLICATION: GENERAL
PRESSURE: PN10-16
BODY: DUCTILE IRON
DISC: STAINLESS STEEL
SEAT: EPDM/PIFE/Elastomer/NBR/VITON
Media: Fresh water;Sewage;Sea Water;Air;Steam;Food;Medicine;Oils;Acid,ETC.

Specifications

Handle butterfly valve has simple structure, small volume, light weight, only by a few parts.and only need to rotate 90 ° can rapid opening and closing, simple operation, at the same time, the valve has good flow control characteristics.Butterfly valve in the fully open position, the butterfly plate thickness is medium flows through the body when the only resistance, thus produced by the valve pressure drop is small, it has good flow control characteristics.

1.Technical data:

Size	DN50-DN1200
Nominal Pressure	PN10/PN16
Working Temperature	-10~ -150 °c
Applicable Medium	Sewage;Sea Water;Air;Steam;Food;Medicine;Oils;Acids;etc

2.Standard:

Design Standard	GB/T 12238-2008
Face to Face	GB/T 12221-2005
Side Flange Standard	GB9112, DIN2501, BS4504, ISO2084, ANSI125, etc
Top Flange	ISO5211
Connection Mode	Wafer mode
Test Standard	ISO5208 API598

3.Features:

1.Wide selection of materials, applicable for various medium.

2.Bubbles-tight sealing with no leakage under the pressure test.

3.Long service life.Standing the test of thousands opening,closing operations.

4.Flow curve tending to straight line. Excellent regulation performance.

5.Simple and compact construction,quick 90° on-off operation.

Packaging & Shipping

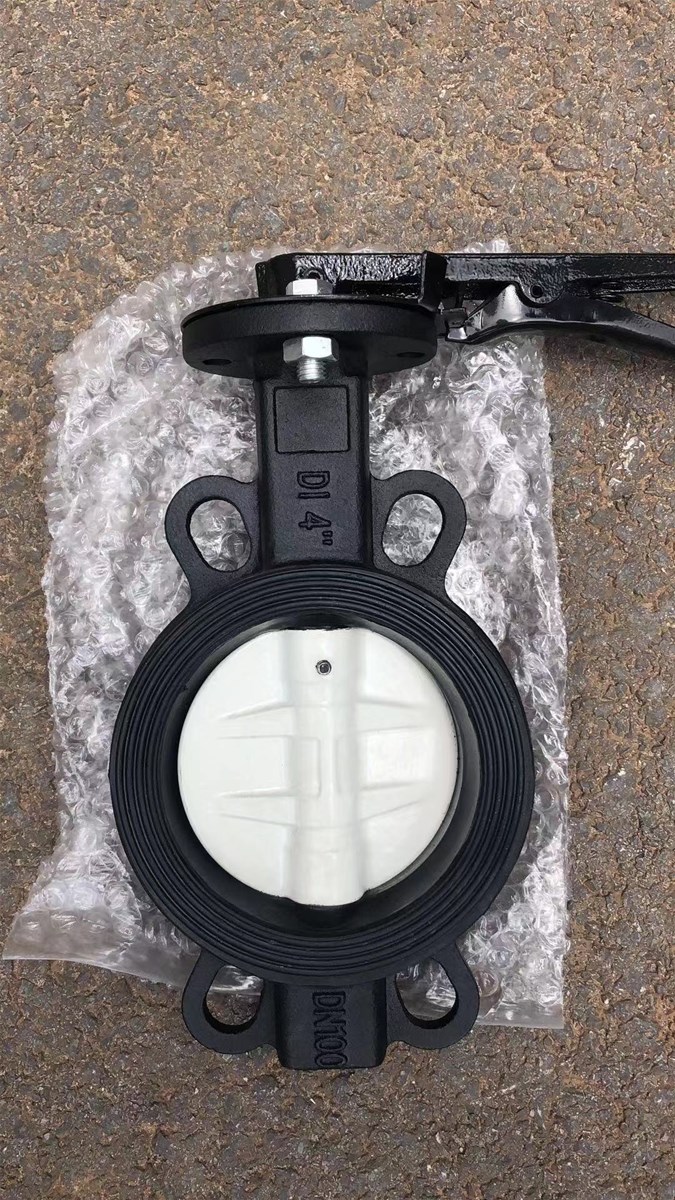

wafer butterfly valve manual operated

Packaging of handle butterfly valve:

1.First,putting the valve into a plastic bag.

2.Second,putting the plastic bag into a plywood box.
