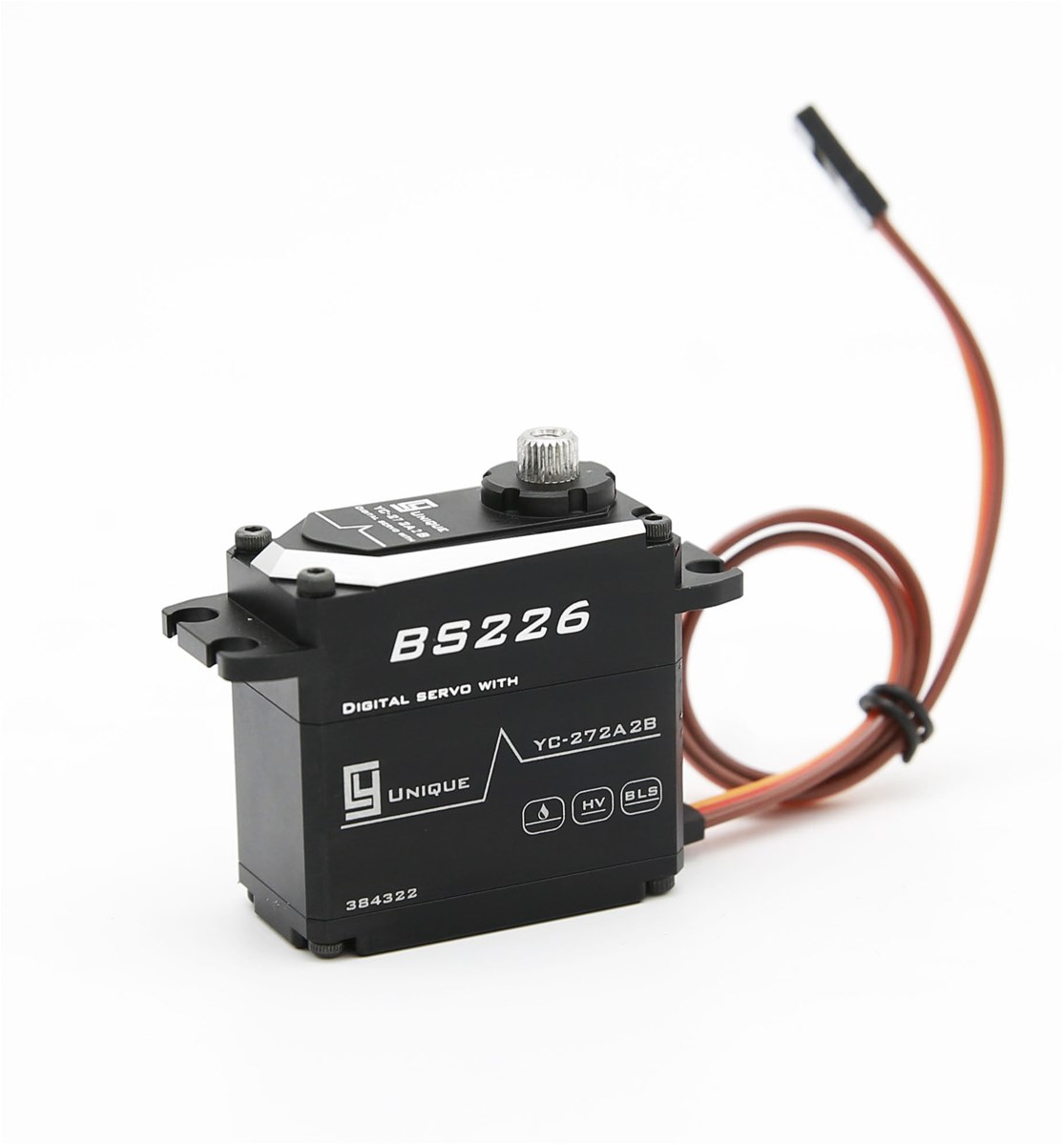

CY Servo BS226 HV Brushless IPX8 Waterproof Stainless Steel Gears Precision 3.0Double Bearing Ball 25T PWM Servo
| FOB Price: | 59.00 - 139.00 USD/Piece |
|---|---|
| Supply Ability: | 6,000 Piece(s) per Month |
| Shipping: | Lead Time:2days; Express, Air, Sea,SheKou Port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 200pieces per box;Box size:315*315*220mm |
Quick Details
- Brand Name: CY
- Use: Vehicles & Remote Control Toys
- Material: metal
- Scale: 1:10
- Type: brushless servo
- Model Number: YCBS226B
- Torque: @6.0V 22.5Kgf.cm(312ozf.in) @7.4V 28Kgf.cm(389)@11.1V 36Kgf.cm(500ozf.in)
- Speed: @6.0V 0.12s @7.4V 0.101s @11.1V: 0.071s
- Gears: Stainless steel
- Motor: Brushless
- Weight: 85.1g
- Output Shaft: 25T
- Temperature: -20~60
- Connected wire length: 260mm/10.0inch
- Input Voltage: 4.8V-11.1V
- Bearing Type: 3.0mm Ball Bearing x 2
Specifications
Main Advantages:
1.Industrial precision steering engine
2.the
Special SS more thickenGear set are allQuenched,
We assured the three key life factor,material,thickness and hardness.
3.the only 0.2 clearance accuracy between the gear each
Other is far more than the 0.5 international value, the can also up to
The standardize even go through100 thousand cycle.
4.the
Ordered Brush-less motor assure both the.
5.We have
Profound professional experience on driver- controlling including Core
Motor,Hollow Cup Motor,Brush-less motor and Magnetic coding control and so on,
and we are keeping technical sharing and exchange with the professional experts
6.We choose
the ordered product from quality supplier on the material property and
Production process,we are a group of craftsman and experts,each process was
Made with meticulous attention and its stable property meet your requirement
Absolutely.
Technical details:
- Torque(6.0V): ()
- Torque(7.4V): ()
- Torque(8.4V):(416ozf.Ch)
- Torque(11.1V):()
- Speed: @6.0V 0.12s @7.4V 0.101s@8.4V 0.09s@11.1V: 0.071s
- Operating Voltage:4.80 ~ 11.1 DC Volts
- Weight: 85.1 g (3.0 oz)
- Bearing Type:(W3.0)Ball Bearing x 2
- Motor Type:Brushless Motor

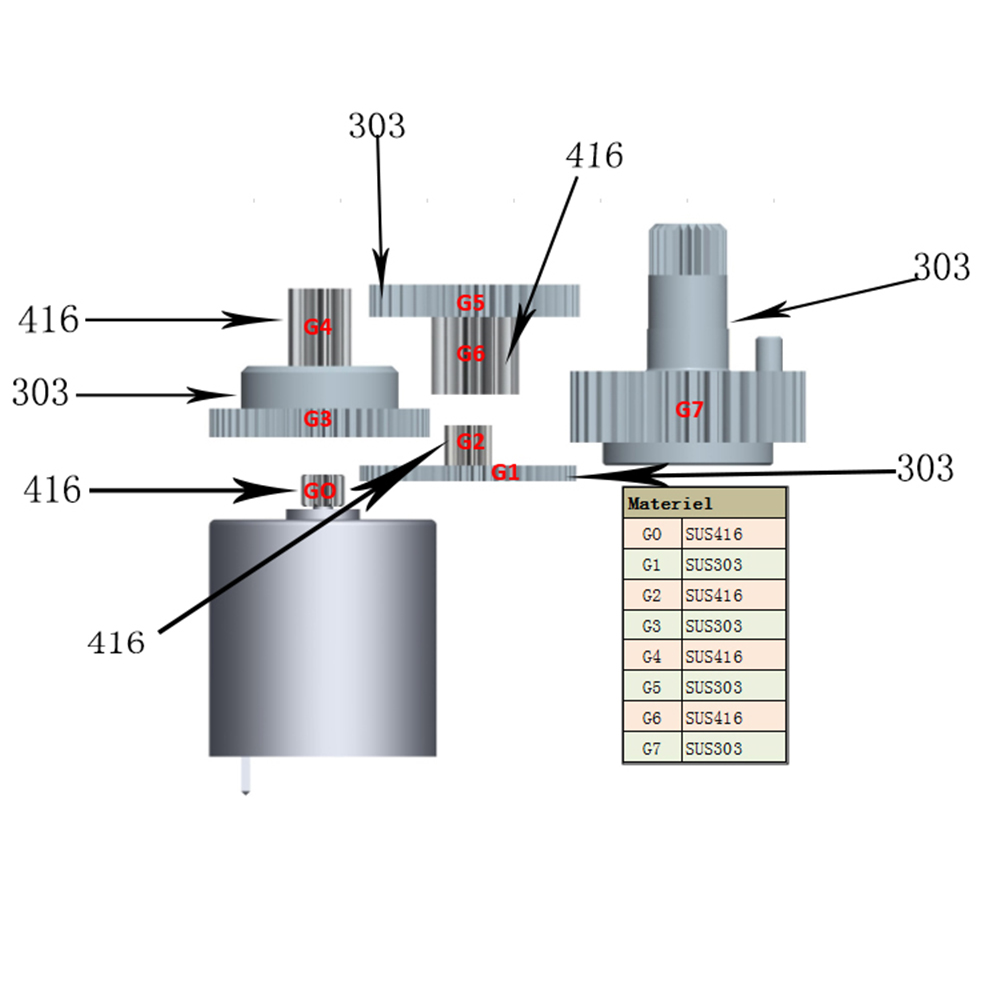

- Gear Type:Stainless Steel enhance & quenching
- Operating Temperature: -20℃~60℃
- Working frequence:1520μS / 333hz

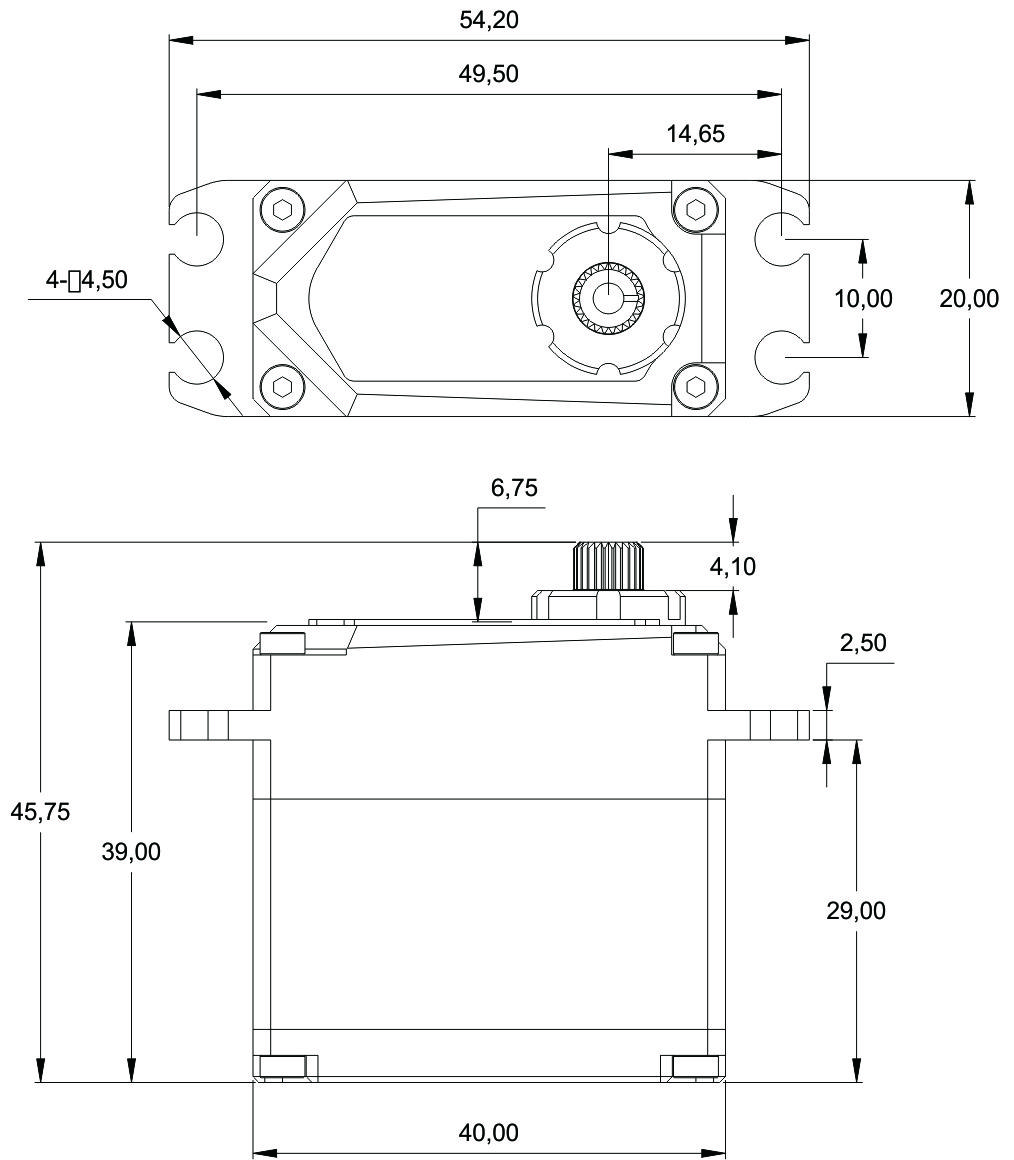

- Size:40x 20 x 39mm (1.57*0.79*1.54 in)
Our Factory:
It locate in Huizhou City Guangdong Provice.
Certificates:
ISO9000,TS16949,ISO14000
Our Service:
to
Customer satisfaction is CY's eternal pursuit, not only products, but also
Service. We have comprehensive sales service, pre-sale, in sale and after sale.
You can enjoy all-around technical support and counselling from our experienced
Engineer and professional customer service representative all the time.Generally, we will reply to your inquiry and
Acknowledge your purchase order within 1 working day, acknowledge the delivery
Time within 2 working days. We will also supply all of the required documents
In time. Our engineer will settle the technical issues effectively. after sale,
If there is any problem to the products within warranty period, we will supply
Free maintenance service, issue a credit note or supply replacements.
FAQ:
CY is a reliable supplier of servo and
Accessories for worldwide remote control toys (such as RC car, airplane,
Helicopter, boat and etc. ) and robot applications. We are a new-emerging force
In servo field. All of the engineers from our R&D department areProfessional and experienced leader in this
Industry.Our concept
Is to supply the unique original products. but we can also supply the products
According to customer's requirements and specifications.
