Simple Operation & High Quality Hydraulic Full Automatic Type Injection Moulding Machine Produce CT PT SF6
| FOB Price: | 40000.00 - 60000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
Related products from verified members
| Place of Origin: | Jiangxi in China |
|---|---|
| Packaging Details: | epoxy-resin molding machine packed by plastic film then into wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: VOLMET
- Weight: 7350
- color: customizable
- Model Number: AVOL-1210
Specifications

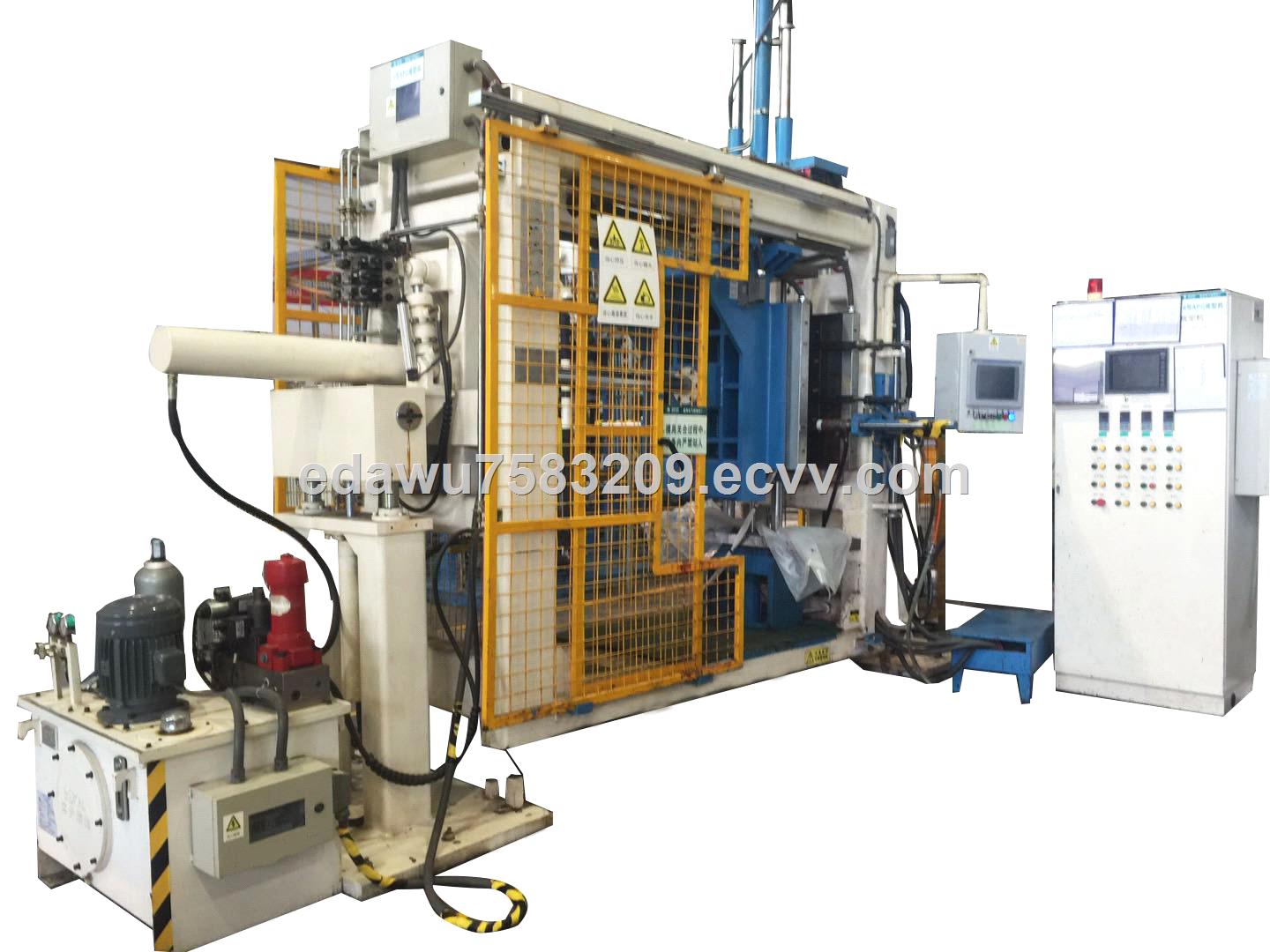

1.AVOL-1010 Full Automatic APG clamping machine:
1. Application:

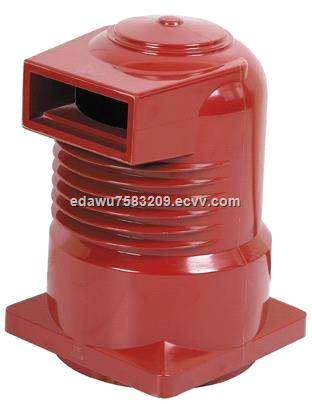

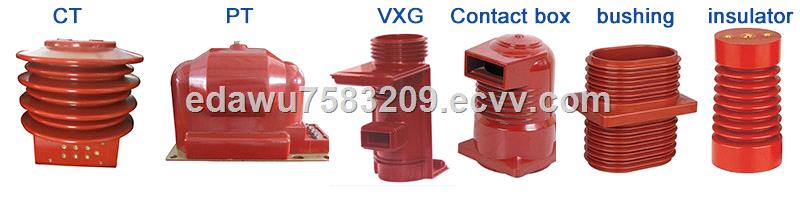

Used for producing epoxy resin components from 11-36KV, such as CT, PT, insulators, bushings, spout,SF6 cover, GIS, LBS etc.
2.Full automatic control system with touch screen, Realize one-button run machine:
- Automatically clamping mold;
- Automatically adjust injection pressure and injection time
- Automatically tilting machine
- Automatically hold pressure and hold pressure time
- Automatically alarm and de-mould
- (install coil and inserts, take products from mold, clean mold by manual)
3.Advantages:
- Reduce work injure
- High efficiency
- Ensure product quality
- Save labor cost, 1 worker can operate 2-4 machines
- Low requirement for workers
- Remote control machine (optional)

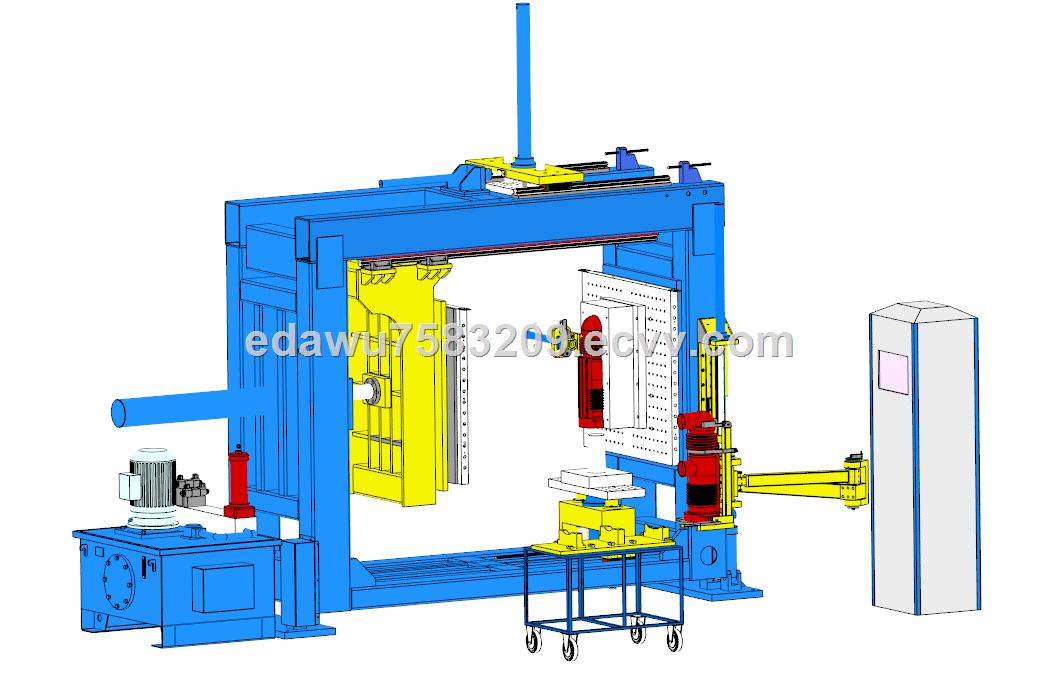

2.Machine introduction:
Machine frame: Tempering and finish machinery →Improve strength,avoid deformation,ensure high precision,avoid mold leakage
Collect Tray → Keep clean,protect lower core.
Tilting device → vertical and horzontal tilting
Safe fences→ avoid work injure
Servo motor→ save energy, low noisy, easy maintance
Full automatic system→ programmable, full automatic.Save receipt,remote control
Linear guide →Ensure clamping stability
Power cabinet→
APG Mold →Volmet supply mold and technique training overseas.Turn key project.

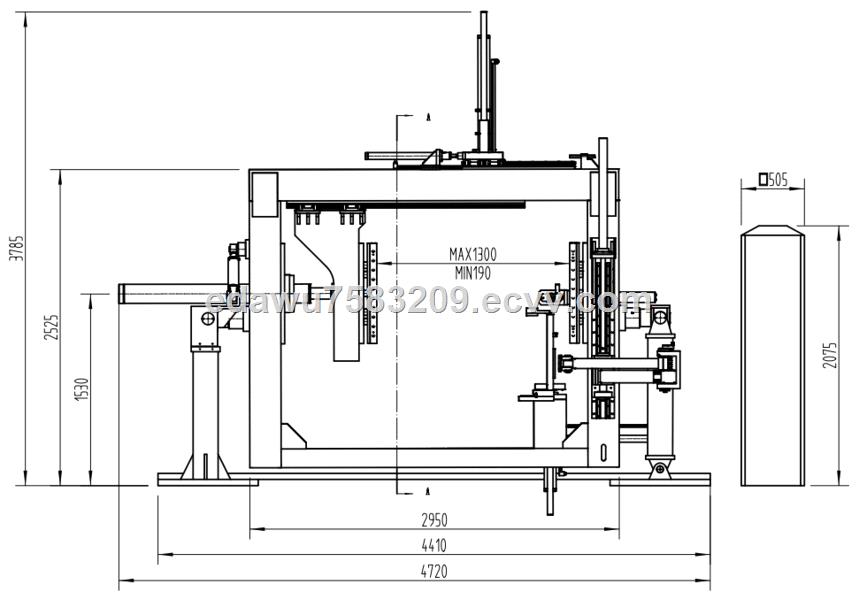

3.Technical Datas:

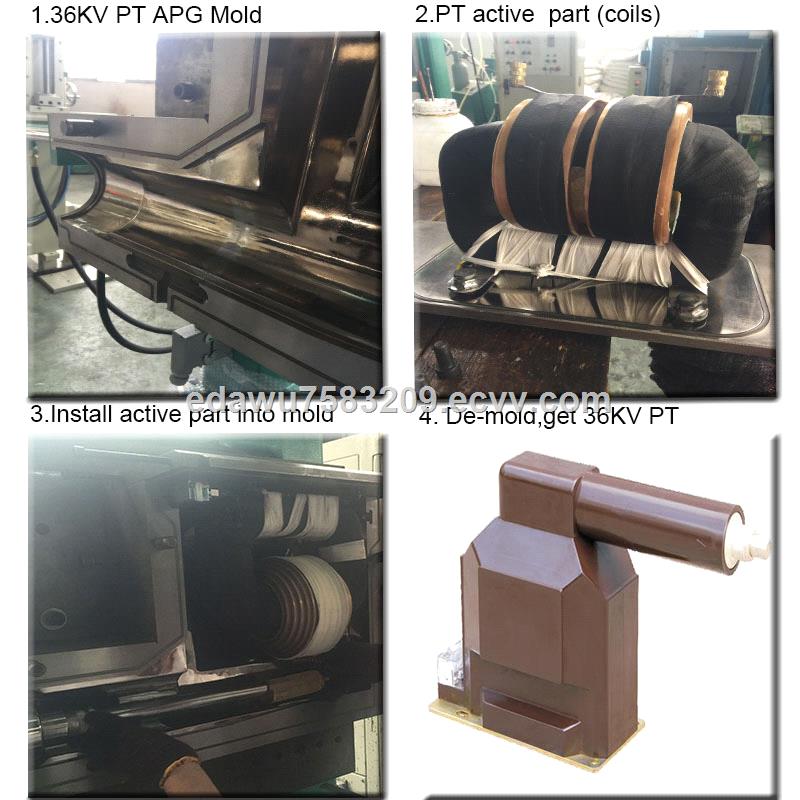

4.36KV potential transformer production process:
4.Embedded pole production process:
5. APG machine process:
1.Milling machine frame: each side of frame will milled by vertical lathe machine,enasure installation precison,avoid mold leakage.
2.Heating treatment for machine frame: Do 3 times of heat treatment for machine frame after welding. Release inter stress,reduce machine deformation in the future.
