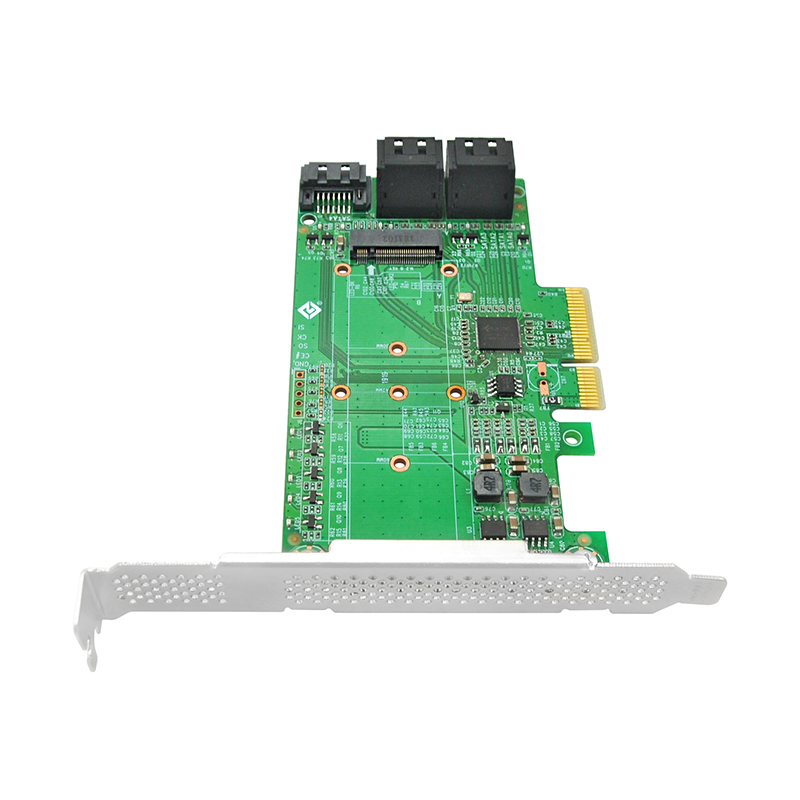

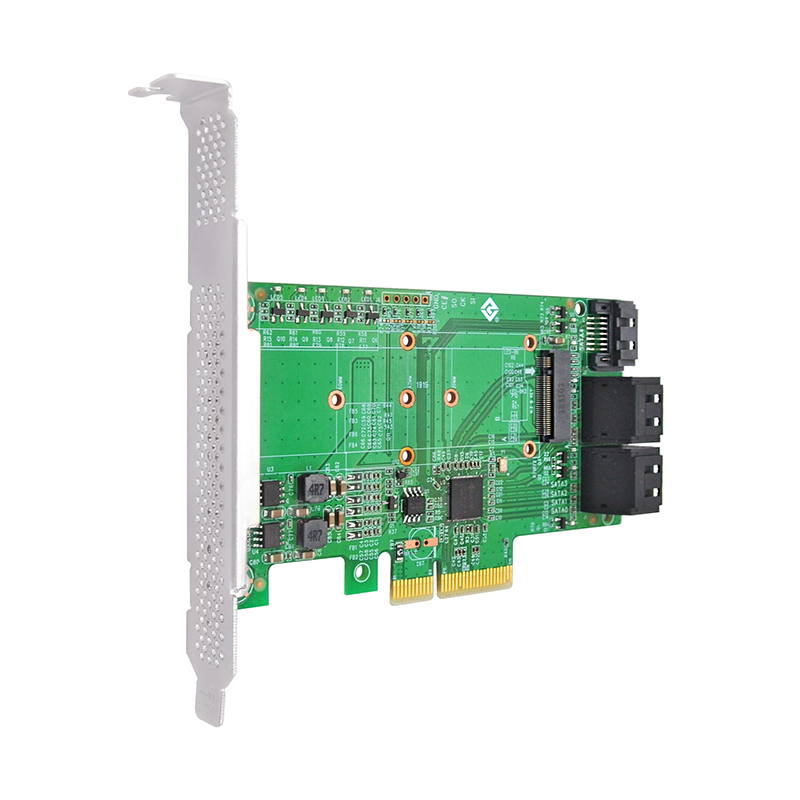

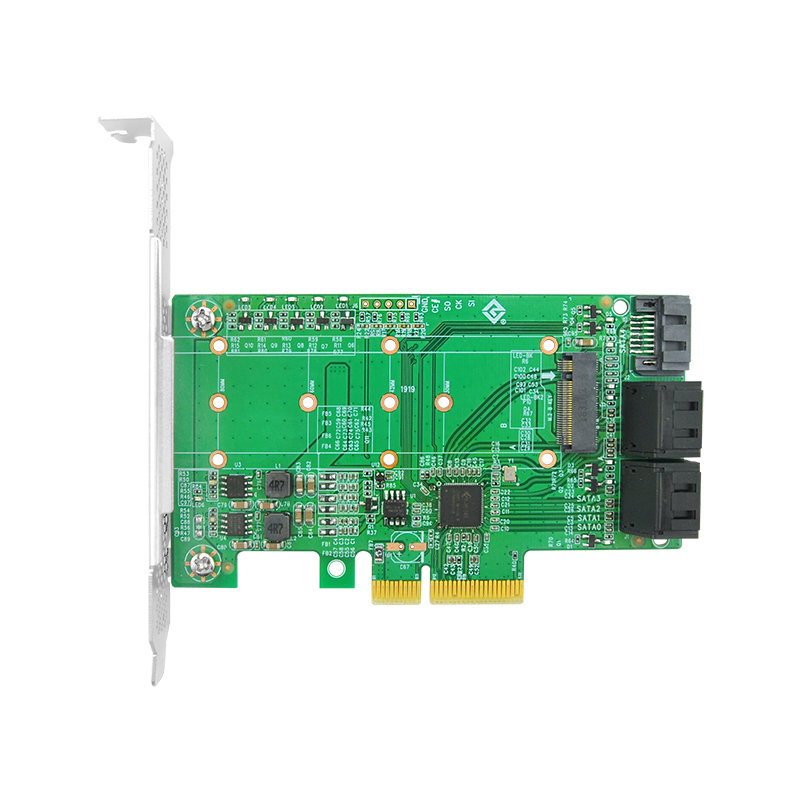

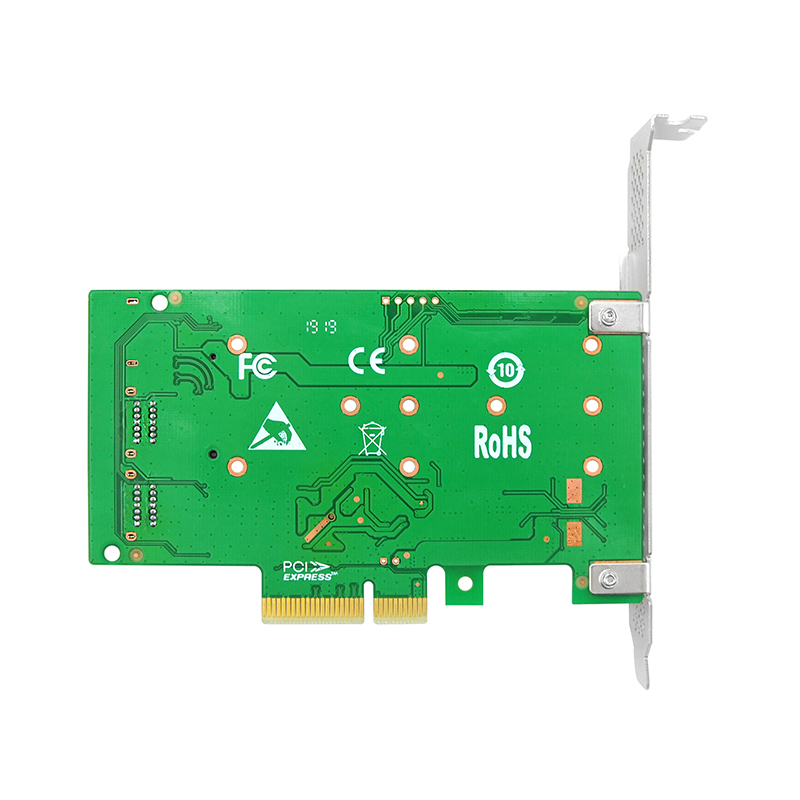

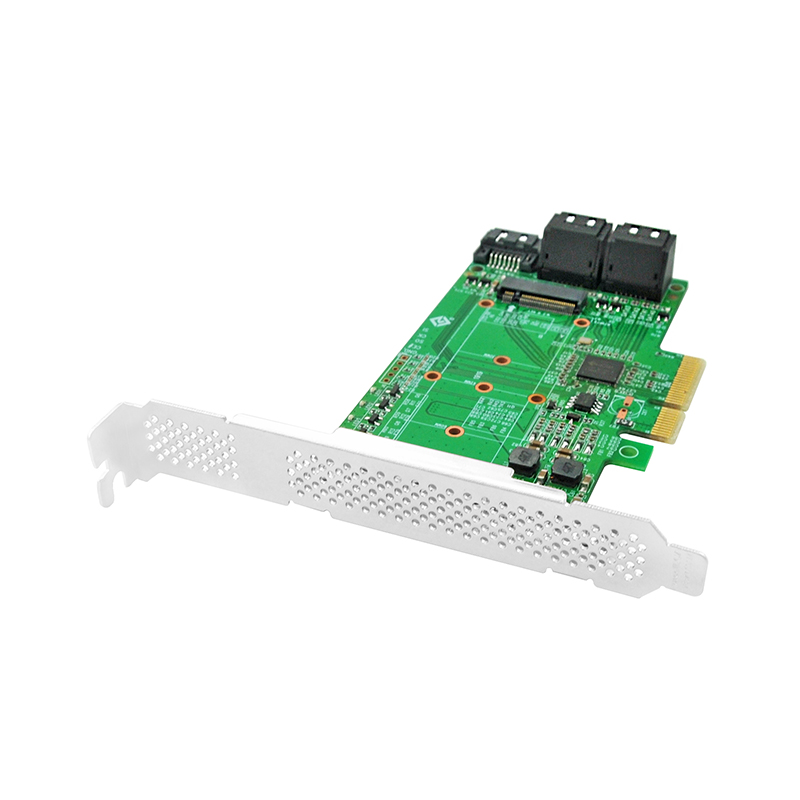

Linkreal PCIe 3.0 X4 Gen 3 to Internal One M. 2 B-Key & Quad SATA 6Gb/s Host Bus Adapter
| FOB Price: | 35.00 - 48.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | DHL Express |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Static Bag in carton box |
Quick Details
- Interface Type: PCI Express
- Transmission Rate: 10/100/1000Mbps
- Type: Wireless
- Application: Server
- Products Status: Stock
- Model Number: LRST9685-1M4S
- Brand Name: Linkreal
- Certification: Ce, Rohs
- Kind: Internal
- Chipset: JMICRON JMB585
- Interface: 1*M.2&4 SATA
- Support Equipment: 4*SATA&1*M.2 SSD
- Host Bus Type: PCIe 3.0 x4
Specifications
Features:
Standards Compliant
Complies with PCI Express Base Specification Revision 3.1a.
Supports PCI Express x4 ( PCIe 3.0 x2 bandwidth).
Supports AHCI mode.
Complies with SATA Specification Revision 3.2.
Supports SATA plug-in detection capable.
Supports 5 SATA port.
Supports Windows 7, Windows 10 and Linux-base OS.
Technical details: Model LRST9685-1M4S Downstream Ports 1 Internal NGFF M.2 Key B & 4 internal SATA Connector 100ohm, 75pin (pitch=0.75) 7pin SATA Controller chip JMC585 Upstream PCIe x4 Edge connecting finger (PCIe 3.0 X2 bandwidth) Power 2.1W Physical Dimensions 115MM*68.9MM Product Weight 1.75oz [49.5 g] Bracket Support Full height, half length Operating Temperature 0°C to 60°C (41°F to 122°F) Storage Temperature -25°C to 70°C (-13°F to 158°F) Hardware Warranty 2 Years Regulator CertiCations ROHS,CE,FCC OS Support Microsoft Windows, Linux Included in Package 1 - PCI Express to 1 M.2 &4 SATA Card 1 - low-profile bracket 1 - Warranty Card
