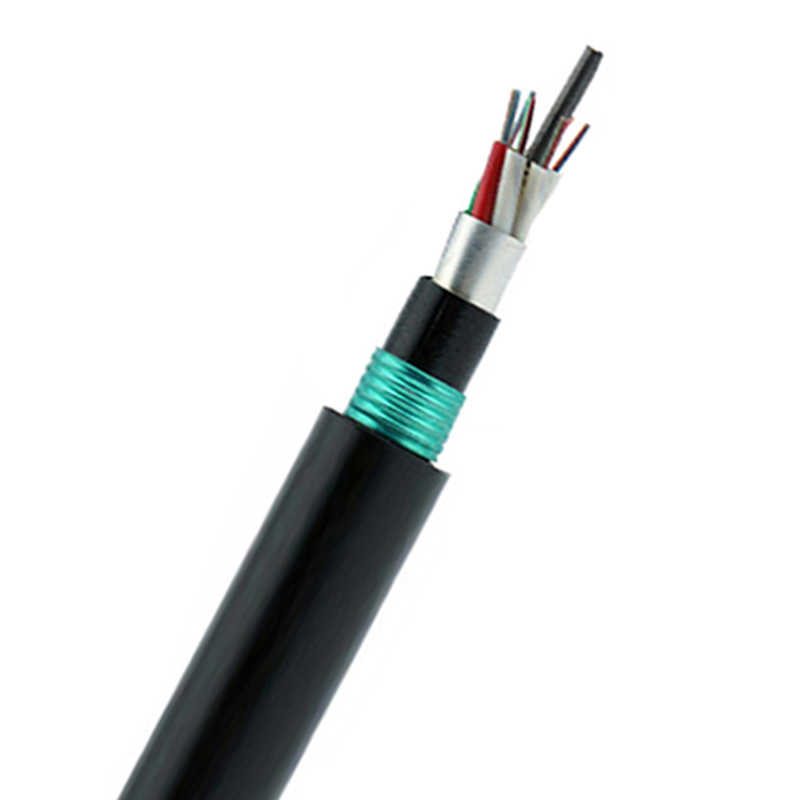

Gyfta53-24b1 Non-Metallic Moisture-Proof Buried Fiber Optic
| Supply Ability: | 100,000 Kilometer(s) per Day |
|---|---|
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Type: Coaxial
- Brand Name: futong
- Application: Communication cable
- Color: black
- Model Number: Gyfta53-24b1
Specifications
Product Description:
GYFTA53 (Loose tube stranding, Non-metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Steel-polyethylene adhesive outer jacket)
Standards:
YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications
Technical Parameters(Typical Value):
| Fiber Count | Structure | Diameter (mm) |
Weight (kg/km) | Tensile(N) Long Short term term |
Crush(N) Long Short term term |
Bending Radius(mm) Static Dynamic | |||
| 24 | 1+6 | 13.8 | 176 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
Applications:
the kind of optical cable is suitable for Buried installation.
Characteristics:
Excellent water-blocking performance;
Excellent resistance to lateral pressure, and mechanical and temperature performance.
Operating Temperature:-40C~+70C
Transmission Performance
| Item | 62.5μm(OM1) 850nm/1300nm |
50μm(OM2) 850nm/1300nm |
G. 652 1310nm/1550nm |
G. 655 1550nm/1625nm |
| Attenuation of Maximum Value(dB/km) | 3.5/1. 5 | 3.5/1. 5 | 0. 36/0. 22 | 0. 22/0. 26 |
| Attenuation of Typical Value(dB/km) | 3.5/1. 5 | 3.0/1. 0 | 0. 35/0. 21 | 0. 21/0. 24 |
