High Quality Facing CNC Lathe Machine for Turning Flange, Tyre Mold, Impeller

FOB Price:	1.00 - 99.00 USD/Set
Supply Ability:	200 Set(s) per Year
Shipping:	By Ocean
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Wooden Box Package

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: Mingtai
Automatic Grade: Automatic
Type: Horizontal
Condition: New
Certification: ISO9001, CE, BV, SGS
Voltage: 380V, 440V, 415V, 220V all are available according to customer request
Model Number: CK64125
Max. Swing Diameter: 1250 mm
CNC or Not: CNC
Lathe Machine type: CNC Lathe with FANUC Control
Swing Diameter over machine bed: 1250 mm

Specifications

High Quality Facing CNC Lathe Machine
for Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.

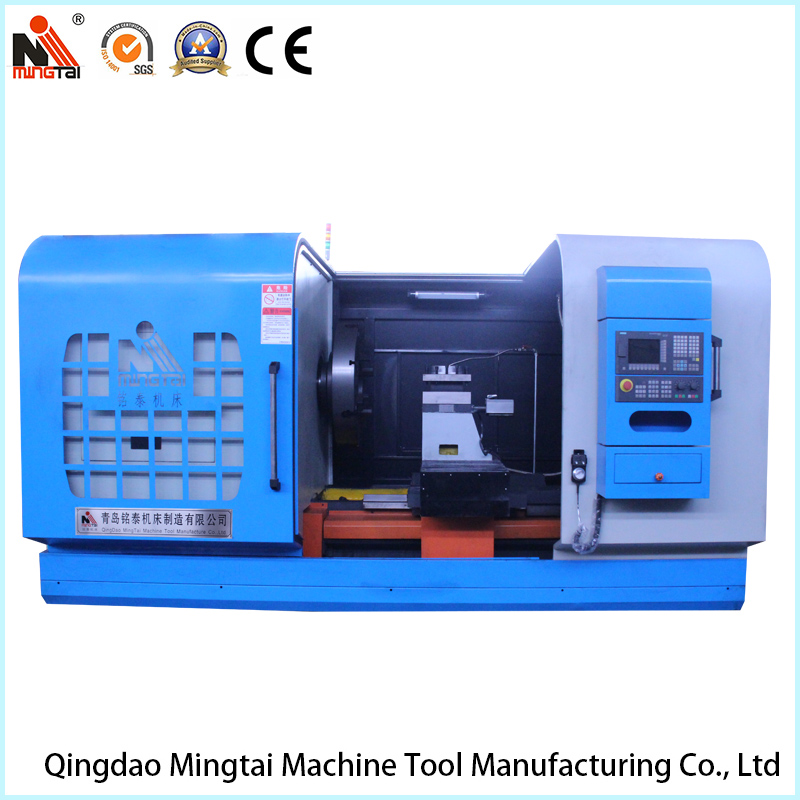

China Professional Horizontal Lathe for Turning Shipyard Propeller Tyre MoldFlange

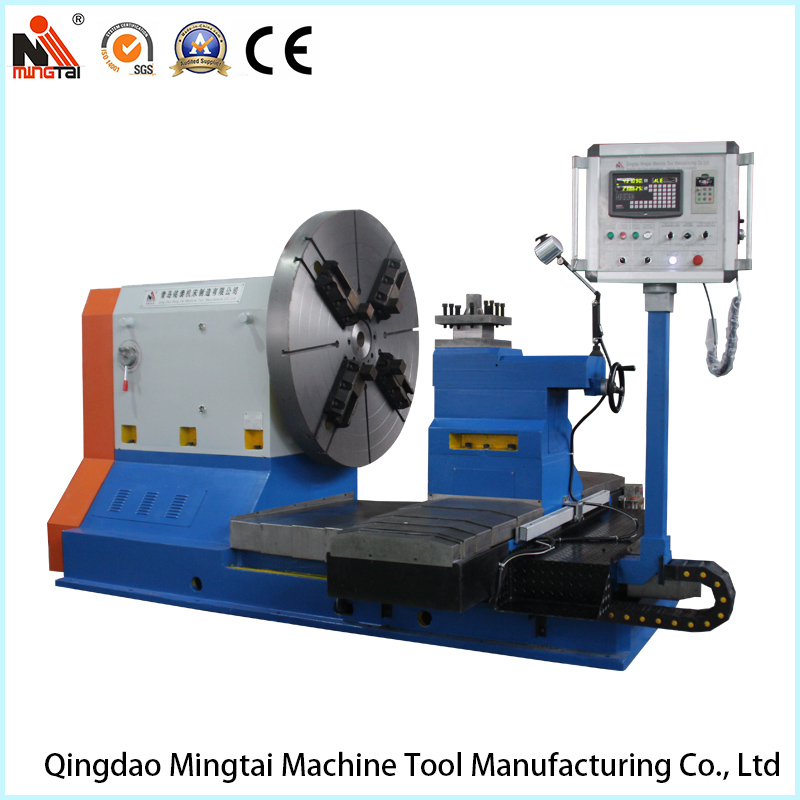

China Professional Horizontal Lathe for Turning Shipyard Propeller Tyre MoldFlange

More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 20 years, if you have special request and demands, please feel free to contact us.
Application: the base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. this machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.

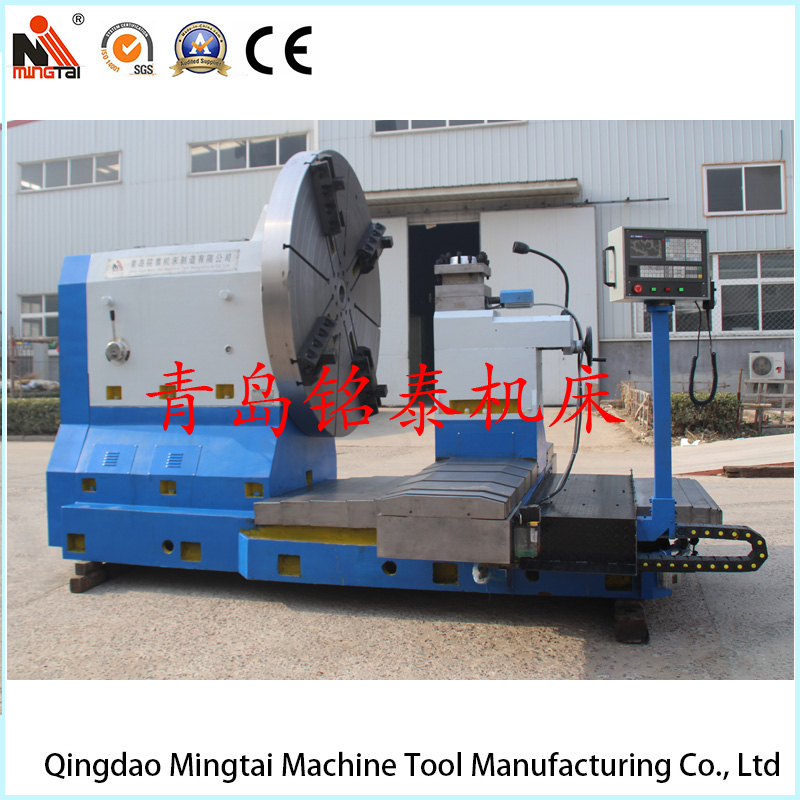

China Professional Horizontal Lathe for Turning Shipyard Propeller Tyre MoldFlange

2. Standard Technical Parametes

Name		CK61100	CK61125	CK61160	CK61200	CK61250
Description	Unit	CK61100	CK61125	CK61160	CK61200	CK61250
Max. Swing over bed	mm	1000	1250	1600	2000	2500
Max. Swing over the skateboard	mm	600	800	1200	1500	1800
Max. Weight of Work-piece	T	1	1	2	2	3
Max. Length of Work-piece	mm	700	700	700	700	700
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	R/Min	10-300	10-200	10-160	10-160	4-80
Chuck Diameter	mm	800	1000	1250	1600	2000
Bearing Diameter of Main Front Shaft	mm	190	190	220	220	300
X,Z X,Z-Axis Feed Range	Mm/Min	0-3000
Horizontal Stroke	mm	500	650	800	1000	1250
Longitudinal Stroke	mm	700	700	700	700	700
Main Driving Motor	Kw	Variable Frequency 11Kw-4	Variable Frequency 15Kw-4	Variable Frequency 22Kw-4	Variable Frequency 30Kw-4	Variable Frequenc

3. after -salse Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. in case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. the company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. the company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
for more details, please feel free to contact us. Thanks!
