17.5/24kV Outdoor Three-Phsae Epoxy Resin Type Combined CT&VT
| FOB Price: | 1.00 - 1000.00 USD/Piece |
|---|---|
| Supply Ability: | 36,000 Piece(s) per Year |
| Shipping: | FOB SZ |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Three
- Usage: Instrument
- Brand Name: CHUANGYIN
- Model Number: JLSZXW8-17.5, 24
Specifications

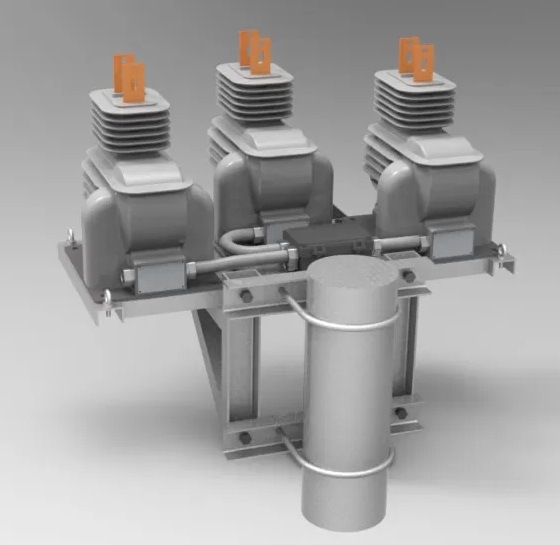

JLSZXW8-17.5/24.5 "3-phase combined CT&VT" is assembled by 3 set of single-phase combined transformers. 1 set Transformer is composed of 1CT& 1VT. Three-phase star connection, alicyclic epoxy resin casting, high UV resistance for outdoor environment. Smaller & lighter than oil-immersed type transformer. No oil spill pollution, maintenance free. Especially suitable for power energy metering and smart management of 24KV 50/60Hz overhead line power system.
Basic technical data:
1. Installation: Outdoor, overhead line column installation
2. Insulation type: Dry, Epoxy
3. Highest voltage for equipment Um (r.m.s.) 24kV
4. Rated power-frequency withstand voltage (r.m.s.): 50kV
5. Rated lightning impulse withstand voltage (peak): 125kV
5. Rated frequency: 50Hz / 60Hz
6. Applied standard: IEC 61869-1,-2,-3&4
IEC 60044-1&2
Specification:
| Voltage transformer | Current transformer | Rated insulation level (kV) | |||||
| Rated primary voltage (kV) |
Rated secondary votage (V) |
Accuracy Class |
Rated output (VA) | Rated current ratio(A) | Accuracy Class |
Rated output (VA) | |
| 12.47/√3 13.8/√3 8.4 15/√3 20/√3 22/√3 14.4 |
100/√3 110/√3 115/√3 120/√3 100 110 115 120 |
0.2 0.5 1 |
15 20 25 30 50 75 |
Single ratio 5/5 10/5 ... 1200/5 |
0.2S 0.2 0.5S 0.5 1 |
10 12.5 15 20 25 30 |
17.5/38/95 24/50/125 |
| Double ratio 5-10/5 10-20/5 ... 400-800/5 | |||||||
