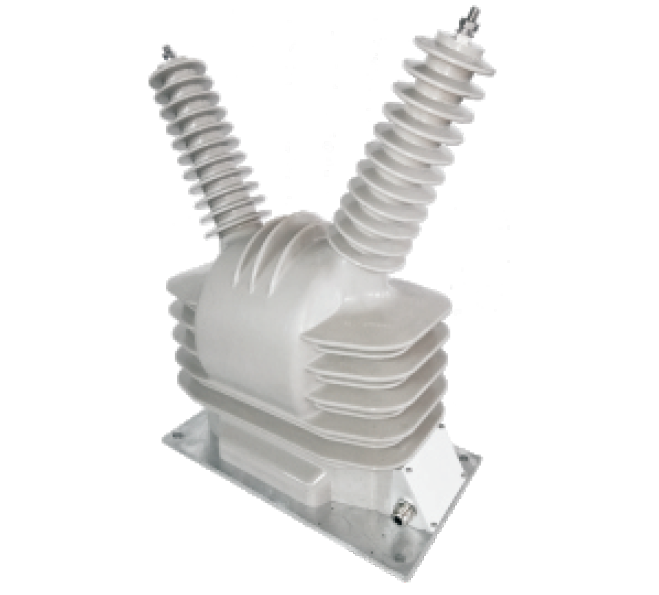

36kV Epoxy Resin Type MV Current Transformer Outdoor VT JDZW5-36 IEC/GB Standard
| FOB Price: | 1.00 - 1000.00 USD/Piece |
|---|---|
| Supply Ability: | 36,000 Piece(s) per Year |
| Shipping: | FOB SZ |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Coil Number: Autotransformer
- Coil Structure: Toroidal
- Phase: Three
- Usage: Instrument
- Brand Name: CHUANGYIN
- Model Number: JDZW5-36
Specifications
36kV Epoxy Resin Type Electric Energy and Protective Outdoor VT JDZW5-36
1. Installation site: Outdoor
2. Rated frequency: 50/60Hz
3. Load power factor: cosΦ=0.8 (lagging)
4. Technical standard accords with: IEC 60044-2/IEC 61869-1&3
Voltage transformer with fully enclosed cast insulation structure, the primary and secondary windings and toroidal cores are all encapsulated in epoxy casting body for large creepage distance and improving resistance to contamination and moisture performance. It is used outdoor for measuring voltage, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 36kV.
