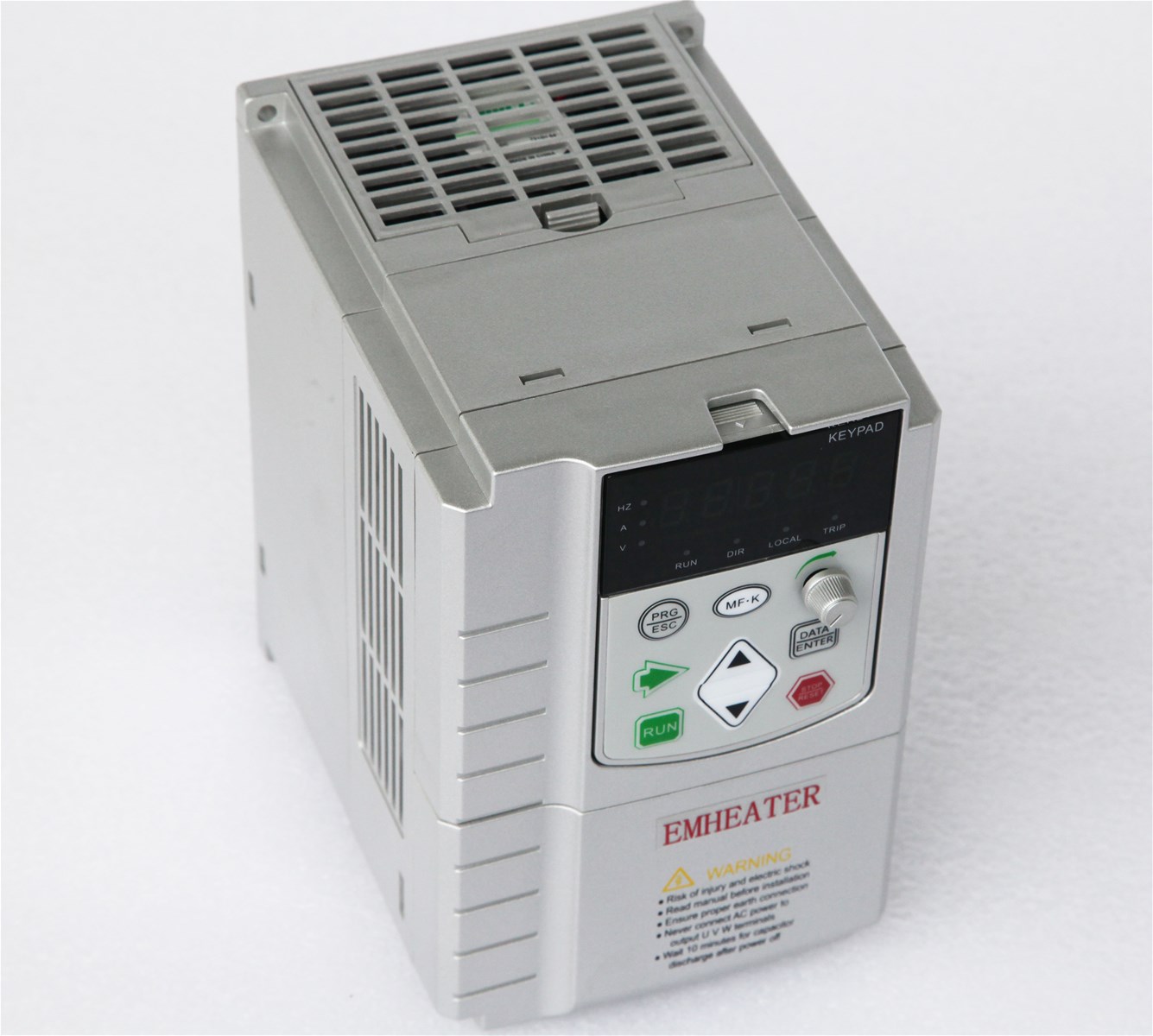

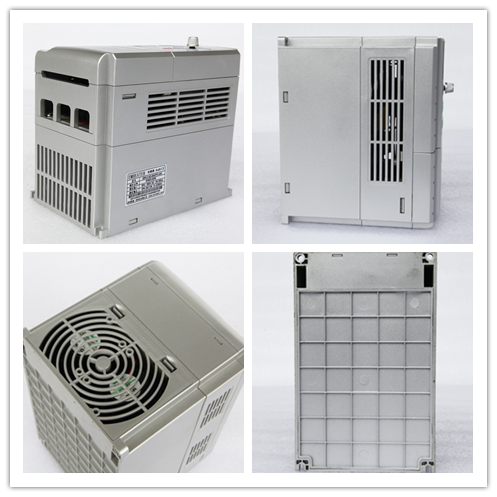

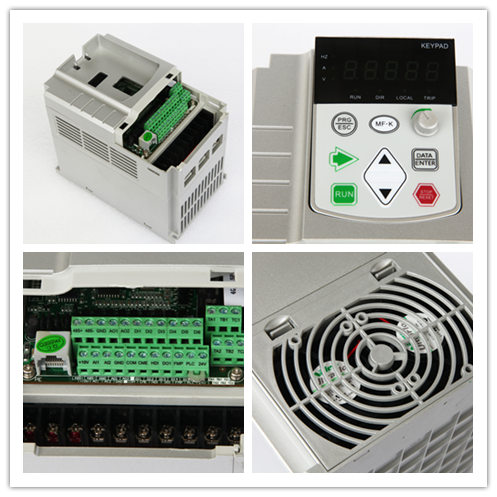

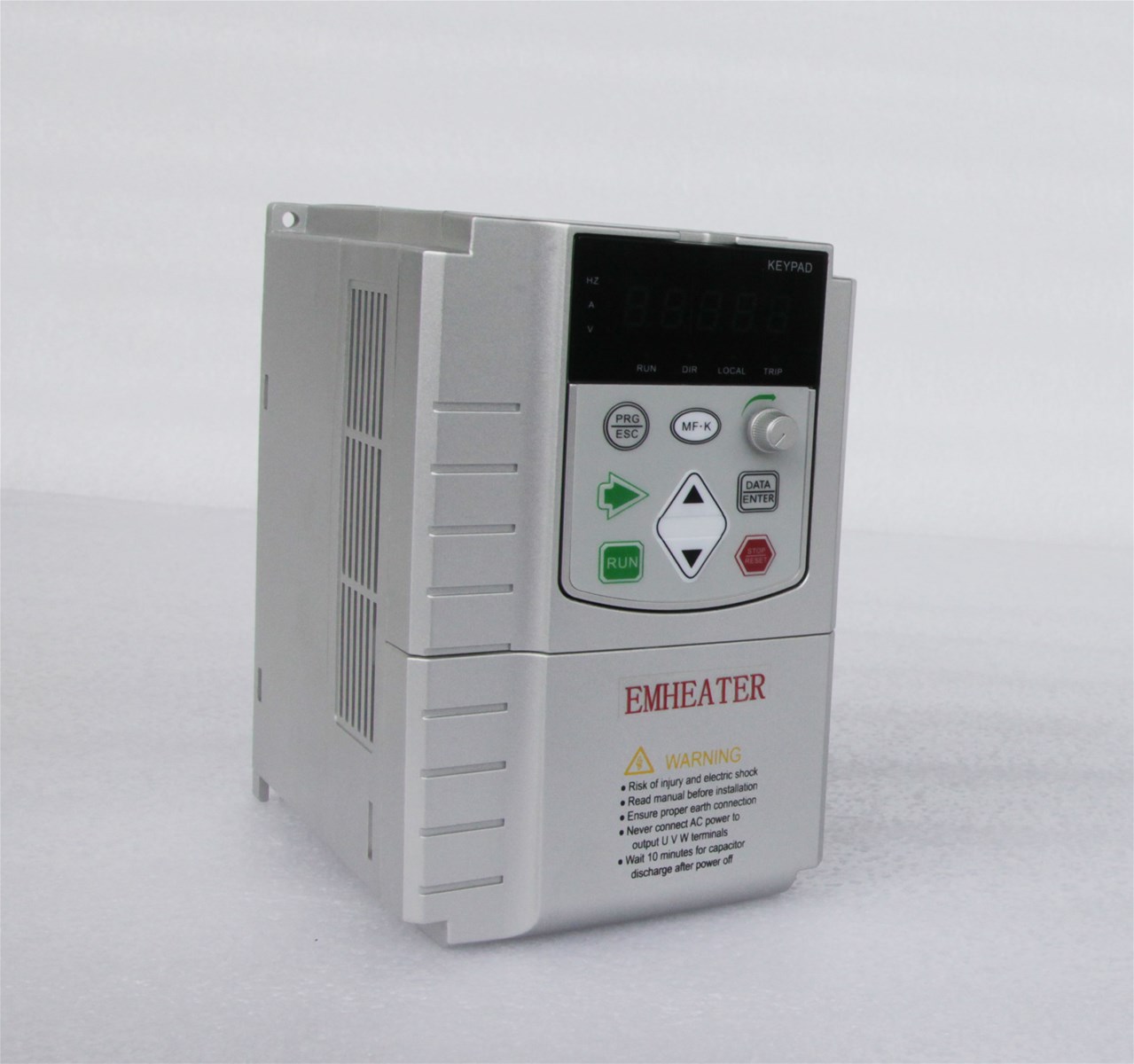

2020 the Newest 3phase 380V 30kw AC Variable Frequency Drive for AC Motor

FOB Price:	529.00 - 599.00 USD/Piece
Supply Ability:	1,000 Piece(s) per Week
Shipping:	expree
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	box

Quick Details

the following example is for you reference.

1.Brief Introduction:

1.EM12 is first class frequency inverter with very strong software and hardware.

2.It has servo drive feature, with perfect speed control mode, and excellent torque control mode.

3.It can save 2 group motor parameters, and can drive synchronous motor and Asynchronous motor.

4.It has sensor-less vector Control (SVC), vector control+ PG; V/F control and V/FSeparation control.

5.It has 49 kinds digital input functions and 38 kinds digital output functions.

6.It has S curve of acceleration and deceleration, user can self defined S curve turning time.

7.the IGBT carrier frequency can auto adjustment According to Heat sink temperature.

8.35 kinds Protection function, including auto detecting short circuit after power on.

9.Including textile swing frequency and skip frequency function, etc.

10.Voltage Range:220V~240V; 380V~440V.

11.Input Frequency Range:45~65Hz.

12.Output Voltage Range:0V~Rated input voltage.

13.Output Frequency Range:V/F( 0~3000Hz); Vector Control (0~300Hz).

14.Overload Capacity:60s with 150% of rated current, 3S with 180% of rated current.

15.from 0.75~30KW Plastic house; 30~400KW is metal house.

16.Speed Accuracy: ±0.5% (SVC); ±0.02% (VC).

17.Pulse setting input: 0Khz~100Khz.

18.All model built-in RS485 card, and approved by CE, Rohs, ISO9001 quality certificate.

19.EM12-G3/P3 models are integrated IGBT.

2.Techincal parameters:

Hot sale 3phase 380V 15kw AC Variable Frequency Drive for pump Made In China

3.Performance features:
