Techwin Industrial Control Line AI/AO Analogy Signal RS485 Protector

FOB Price:	338.00 - 340.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Day
Shipping:	by sea, express, air cargo
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	one piece in one box

Quick Details

Brand Name: techwin
Application: Signal protector internet
Category: signal surge protector
Family: lightning arrester
Function: Techwin 19 inch Rack-mounted 1000 Base Switch Surge Arrester,cat6 RJ45
Model Number: D12Y2-A
color: Blue

Specifications

Techwin Industrial Control Line AI/AO Analogy signal RS485 Protector

APPLICATIONS:
V.1, X.27, RS485, RS422
LAN, CAN, V.24/RS232-C, MODEM BUS
TOKEN-RING, INDUSTRIAL BUS
Suitable for the signal's transmission rate protection under the same voltage and same specifications
Analog signal lightning arrester
Protect power supply and control line for camera
Loss prevention system device; Security system; Security integration.
IASP; VSCS; ESA; ACS; exit-inlet control system; exit-inlet control system

FEATURES:
Low insertion loss, fast response.
Low limiting voltage.
Precise limiting voltage.
Strong discharge current.
Crimping

TECHNICAL PARAMETER:
ModelD12Y2
Electrical Parameter
Max. Continuous operating voltage Uc12V
Nominal discharge current(8/20s)In3kA
Max. Discharge current (8/20s)Imax5kA
Limiting voltage (10/700s) up
Line-line40V
Line-ground500V
Adapt transmission rate10Mbps
Insertion loss0.5dB
Response time tA1ns
Interface formCompression plug
Protection way1
Protection port1
Mechanical characteristics
Dimension83(L) 25(W) 32(H)mm
Weight per unit74g
IP CodeIP20
Working conditionsTemperature: -40 to 80℃,
Relative humidity: ≤95

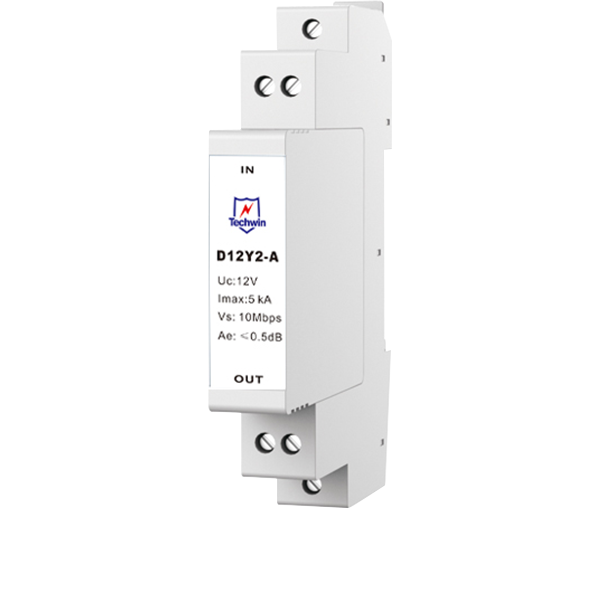

Techwin Industrial Control Line AIAO Analogy signal RS485 Protector
