Navector (Shanghai) Screening Technology Co., Ltd.
China Manufacturer with main products: Vibrating Screen, Vibro Sifter, Tumbler Screen, Compact Sieve, Linear Vibrating Screen |
Navector High Capacity Tumbler Screen for Food Powder Separating
| FOB Price: | 5000.00 - 20000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set(s) per Month |
| Shipping: | By SEA |
| Payment Terms: | L/C, D/A, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, Eastern Europe, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | wooden box |
Quick Details
- After-sales Service Provided: Overseas service center available
- Warranty: 12 month
- Voltage: 220V-480V
- Brand Name: Navector
- Condition: New
- Certification: BV,ISO9001
- Weight: 1-3 tons
- Dimension(L*W*H): 1000-1500mm
- Power(W): 2kw
- Model Number: NTSP
- Production Capacity: 30 sets/month
Specifications
Product Details

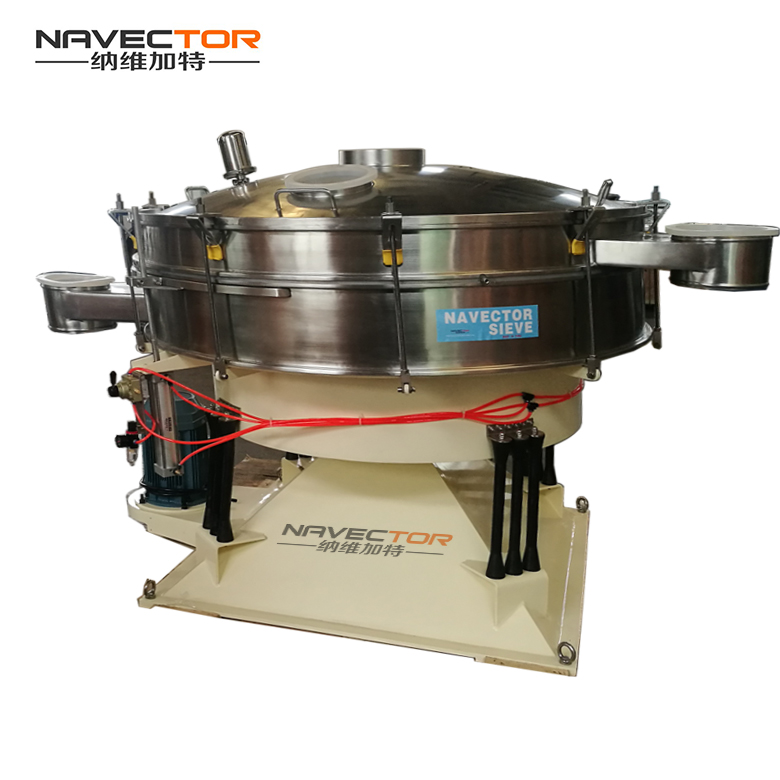

Tapioca Starch tumbler screening machine

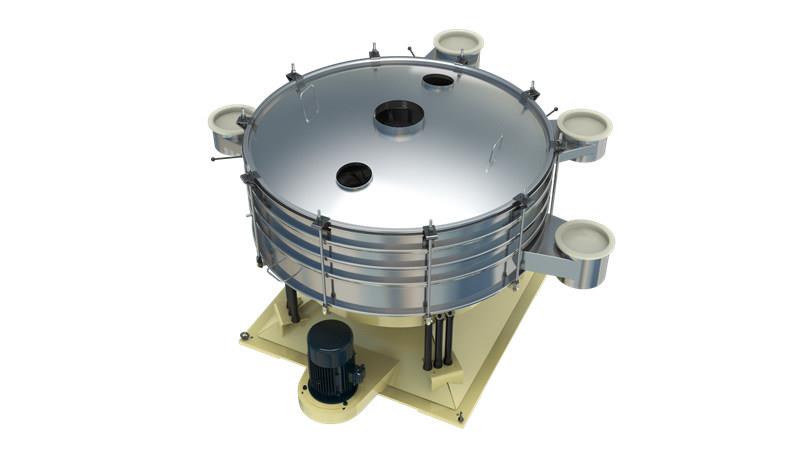

Navector tumbler screen machine is used for bulk material grading, safety screening, and dedusting in all industrial sectors. They are particularly well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 particle sizes. The NAVECTOR NTS tumbler screen system features a range of customization options designed to meet extremely demanding requirements, as well as a broad variety of additional equipment options: among these, the number of available screen cleaning systems is particularly worth mentioning, with balls, brushes, ultrasonic, and various combinations being of these options are available to prevent blinding and maintain efficient screening.
Tumbler Screening Machine Data Sheet
Feed Sizes |
20 μm 20 mm |
Feed Rates |
1 kg/h 50.000 kg/h |
Bulk Densities |
20 10.000 g/l |
Mesh Openings |
20 μm 20 mm |
Screens Usable |
Stainless steel wire or perforated plates |
No. of Decks |
1 5 |
Mesh Cleaning |
Jumping balls/rings, Rotating brush, Ultrasound |
Speed Range |
180 280 min1 |
Screen Movement |
3-dimensional, settable |
Acceleration |
1.3 1.8 g / 60 80 mm horizontal & 5 40 mm vertical |
Materials |
Carbon steel, stainless steels 304/316 |
Machine Surface Treatment |
Painted, brushed or mirror polished |
