| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |

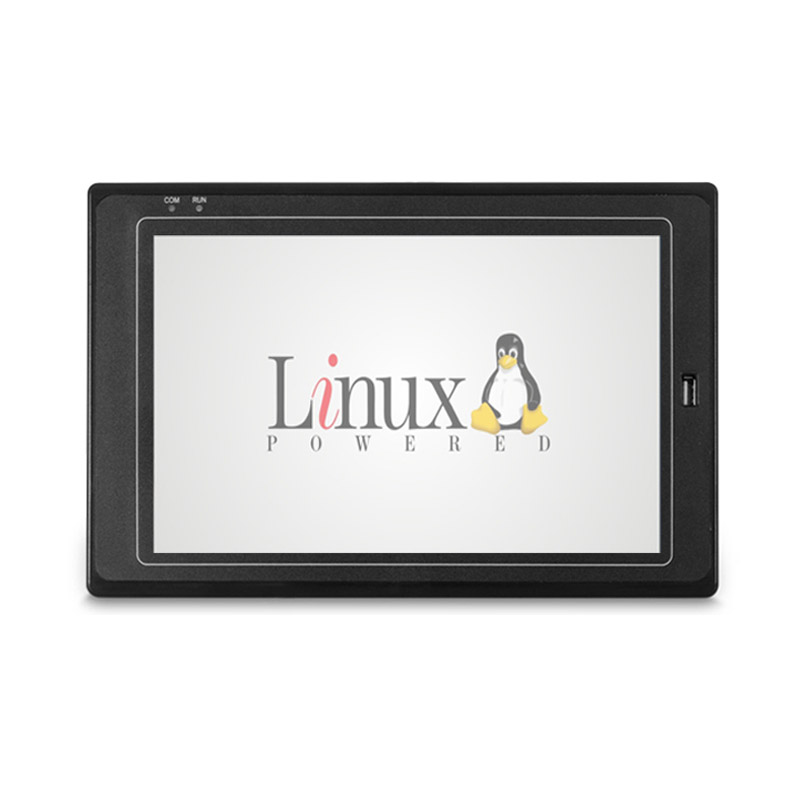

Quick Details
- Brand Name: WQ
- Hard Drive Capacity: 512
- Screen Size: 10.2inch
- Type: All-In-One
- Products Status: Stock
- Widescreen: Yes
- Display Type: LCD
- Memory Capacity: 256MB
Specifications
1.Parameters
Product model |
WLT-102R-AP20 |
Basic parameters |
CPU:S5PV210,Cortex A8 Architecture,Frequency 1.0GHZ Memory:512MB DDRⅡ Flash:256MB NandFlash |
Display screen |
Size:10.2 inch Resolution:800480 LED backlight:Lifetime>25000 hours |
Touch screen |
4-wire resistance touch screen |
Hardware interface |
4 channel isolated 3-wire RS-232 serial port(COM1,COM2,COM3,COM4),2 channel(COM1,COM2)Multiplex as RS-485 bus. 1 channelCAN bus.(Optional)(Driver inside) 1 channel USB Device interface,Support ActiveSync connect to PC to exchange data and debug application. 3 channel USB Host interface,Support usual USB device such as mouse, keyboard, U disk,etc. 1 channel 100M Ethernet interface. 1 channel WiFi module inside.(Optional) 1 channel SD/MMC slot. 1 channel 3.5mm audio output interface. 1 channel DC12V~24V,Industrial power solution,Higher reliability. |
OS |
Windows CE 6.0 R3 |
Defend degree |
IP65 (front panel) |
Working Environment |
power:12V DC(12V as recommendation,the range is 12V~24V),600mA Working Temperature:-10~60°C Working humidity:1090%RH |
Size |
Structure:Plastic Panel size:27518142(mm) Trepanning size:266171(mm) |
| Application area | Industrial control,Detection device,Instruments and meters,Security monitoring,Medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment. |
| Software support | Flash power-down protection function. IDE: Visual Studio 2005/(.net 2.0 Compact),EVC++,Labview development. Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270) |

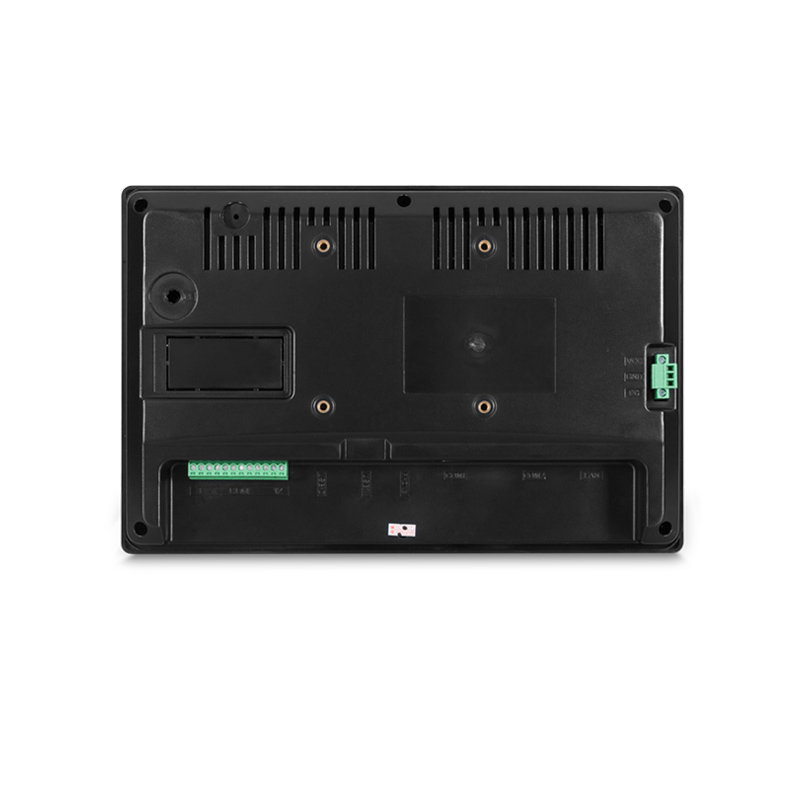

2.Interface definition
1. CANL |
2. CANH |
3. GND |
4. COM3-RX of RS-232 |
5. COM3-TX of RS-232 |
6. COM4-RX of RS-232 |
7. COM4-TX of RS-232 |
8. COM2-485B |
9. COM2-485A |
10. GND |
11. COM1-485B |
12. COM1-485A |

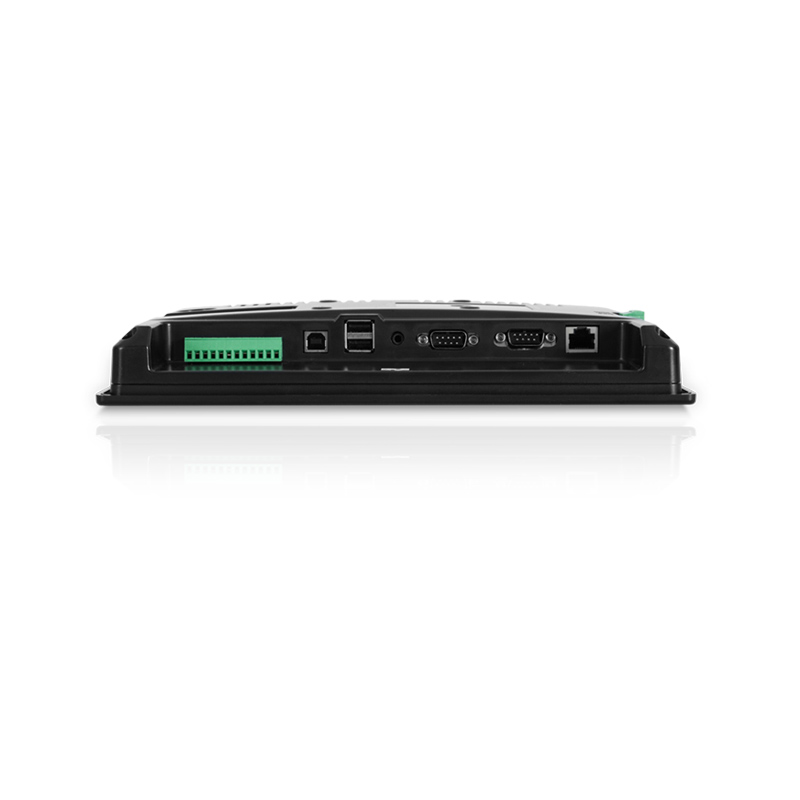

1. USB slave interface(USB Device) |
2. USB Host interface (USB host) |
3. Stereo audio interface |
4. RS-232 ( COM1,COM2) interface ( isolated ) |
5. 100M Ethernet interface |
2.1 RS-232 interface
4 channels, support the highest-level baudrate 115200bps. the corresponding interface in Linux system is COM1 ~ COM4.
2.2 RS-485 interface
the corresponding port in Linux system is COM1, COM2. and COM1/COM2 is a multiplexing of RS-232 interface. RS-485.
2.3 CAN Bus interface
the function of Can-bus interface is optional. Also, without terminal resistance inside,pls specify once in need.
2.4 Power interface
Exterior size: 275x181x42 (mm) Trepanning size: 266 x171 (mm)
