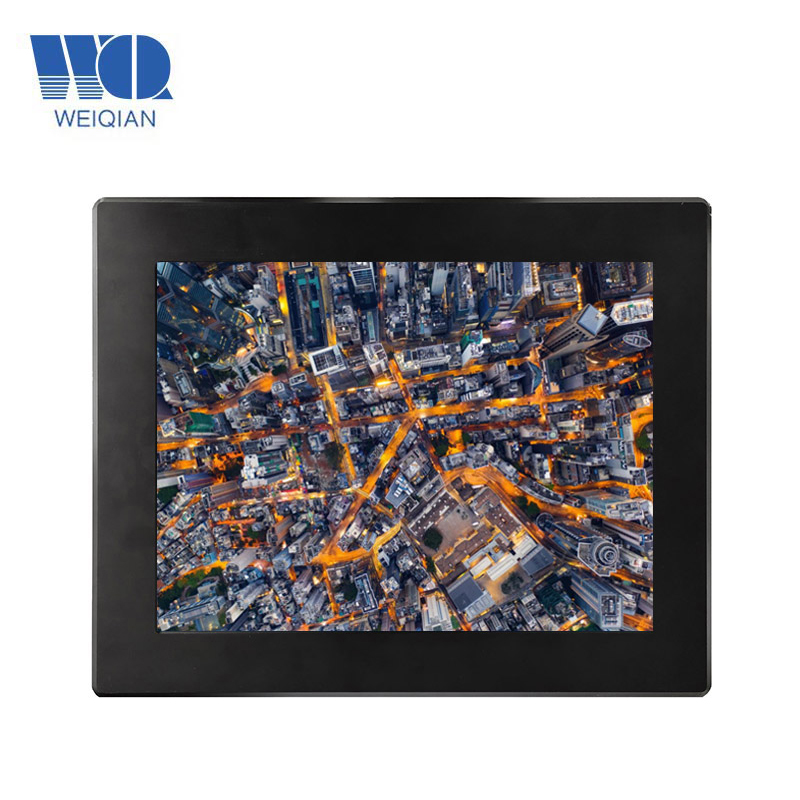

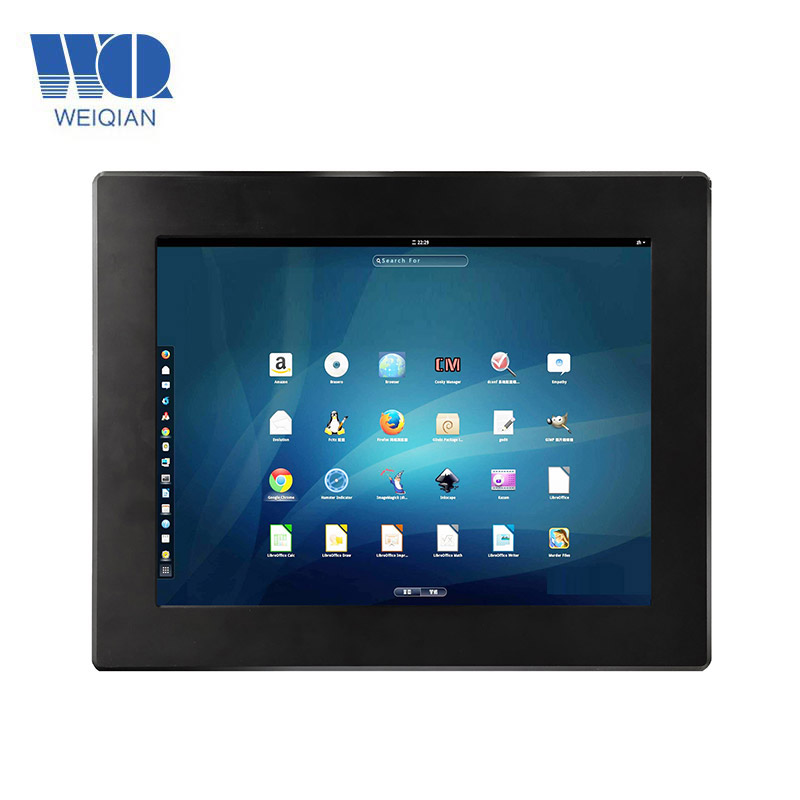

12 Inch WinCE Industrial Touch Screen Computer

FOB Price:	300.00 - 350.00 USD/Other
Supply Ability:	500 p per Month
Payment Terms:	L/C, D/A

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

7" Android MID, tablet PC

Price:73.00-82.00 USD/Piece

Min. Order:50 Pieces
MID

Price:90.00-150.00 USD/Set

Min. Order:100 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Type: Tablet PC
Brand Name: WQ
Feature: 3G,Bluetooth,Wifi
Memory Capacity: 256MB
Products Status: Stock
Type: wlt
Model Number: WLT-120R-AM20
Weight: 1500
Operating System: Windows CE
Display resolution: 800x600
Touch Screen Type: Capacitive Screen
Processor Main Frequency: 1GB
Screen Size: 12"

Specifications

12 Inch WinCE industrial touch screen computer

1.Parameters

	WLT-120R-AM20
Basic parameters	CPU: Cortex -A8 architecture, frequency 1.0GHZ Memory: 512MB DDR3 Flash: 256MB NandFlash
Display screen	Size: 12 inch Resolution: 800600 , 64K colors or 260K colors LED backlight: lifetime > 25000 hours
Touch screen	4-wire resistance touch screen(driver inside)
	2 channel DB9 interface (COM1,COM2) 3 channel 3-wire RS-232 serial port (COM3, COM4, COM5) 2 channel RS-485 interface(COM1, COM2)multiplex as DB9 (COM1, COM2).(Signal isolated as optional) 1 channel CAN bus, multiplex as COM5, COM5 as standard.(optional), 1 channel USB device interface, support ActiveSync connect to PC to exchange data and debug application 2 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk,etc. 100M Ethernet interface. 1 channel SD/MMC slot. 1 channel External Speaker interface. , industrial power solution, higher reliability.
OS	Windows CE 6.0
Defend degree	IP65 (front panel)
Working Environment	Power: 12V-24V DC/3A Working Temperature: -10~60℃ Storage temperature: -20~80℃ : 1090%RH
Size	Shell structure: metal Panel size: 319x259(mm) Trepanning size: 305.2x245.8 (mm)
Application area	Industrial Control, detection device, instruments and meters, security Monitoring, medical apparatus and instruments, intelligent terminals Embedded high-end application.
Software support	, Labview development. Easy change the user-defined splash screen. Support display screen rotation (degree: 0/90/180/270)

2.Interface definition
12 Inch WinCE industrial touch screen computer

1. COM5-TX of RS-232 (CANL)	2. COM5-RX of RS-232 (CANH)
3. GND	4. COM3-RX of RS-232
5. COM3-TX of RS-232	6. COM4-RX of RS-232
7. COM4-TX of RS-232	8. COM2-485B
9. COM2-485A	10. GND
11. COM1-485B	12. COM1-485A

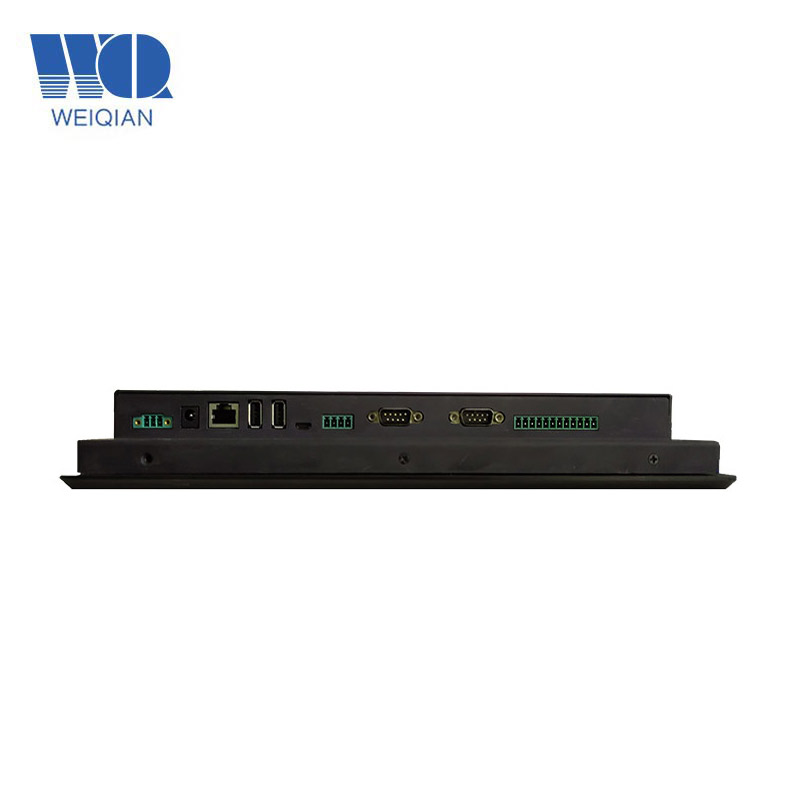

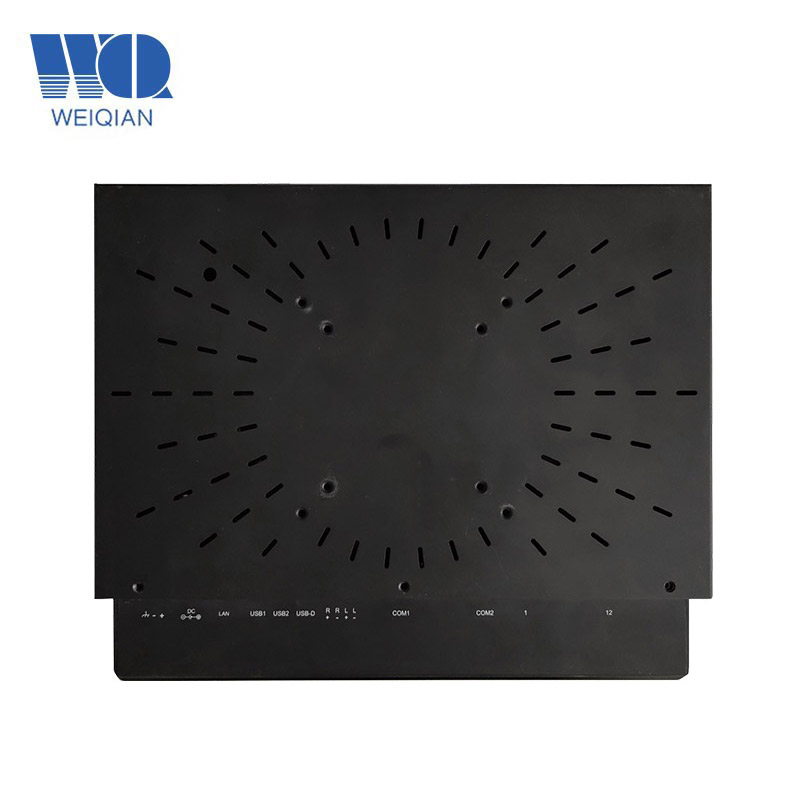

1. 3P(12-24V)Terminal power input interface	2. 12-24V power adapter input interface
3. 100M Ethernet interface	4. USB Host interface(USB host)
5. USB slave interface(USB host)	6. USB slave interface(USB Device)
7. External speaker interface	8. RS-232 COM1 interface(Isolated)
9. RS-232 COM2 interface(Isolated)

2.1 RS-232 interface
5 Channel serial port, support the highest-level baudrate115200bps. the Corresponding interface in Win CE system is COM1, COM2, COM3, COM4, COM5.

2.2 RS-485 interface
the corresponding port in Win CE system is COM1, COM2. and COM1/COM2 is a multiplexing of COM1/COM2 of DB9 interface.

2.3 CAN Bus interface
the Function of Can-bus interface is optional, and multiplex as COM5. Also, without terminal resistance inside,pls specify once in need.

2.4 Power interface
as shown in the figure:

2.5 External speaker interface

1. Left channel OUTR+	2. Left channel OUTR-
Right channel OUTL+	4. Right channel OUTL-

3. Exterior size
Exterior size: 319x259x47.5 (mm) Trepanning size: 305.2x245.8 (mm)
